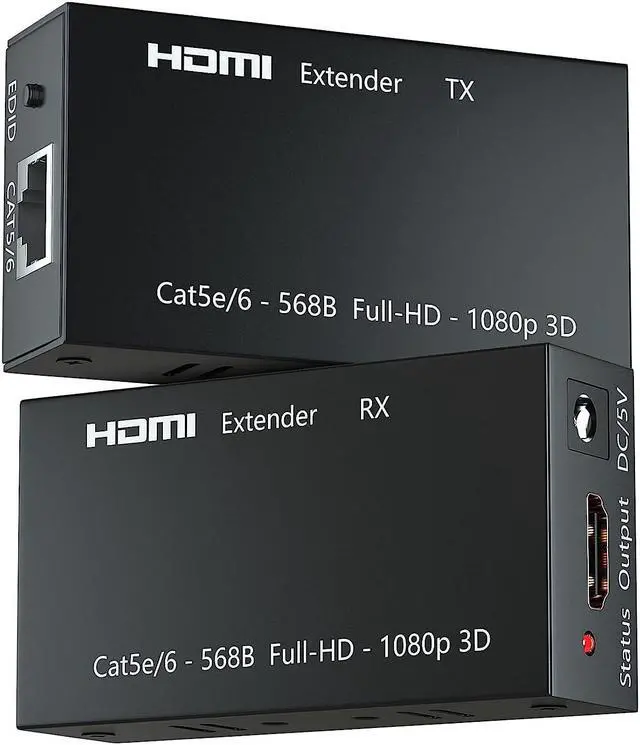

196ft/60m HDMI Extender, LUOM HDMI Extender Over Cat 5e/6/7, Digital HDMI Ethernet Extender Adapter Support Full HD 1080P 3D, EDID Copy, Deep Color, Compatible with Fire Stick, Roku, Blue-ray

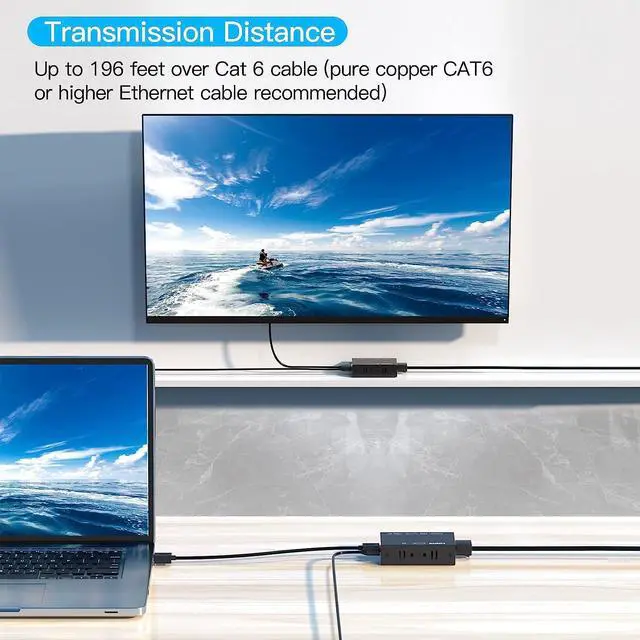

- 196ft HDMI Extender: LUOM hdmi to ethernet extender allows you connect HDMI source device (PC, Blu-ray player, firestick etc) to the Transmitter, run a CAT5e/6/7 cable(up to 60m) from the Transmitter to Receiver, then connect your HDTV to the Receiver with an HDMI cable. Note: cat-5e ethernet cable can only up to 165ft(50meters).
- 1080p HDMI Extender Support deep color up to 36 bits; Support lossless compressed digital audio, HDMI 1.4a, HDCP1.4. Data transfer speed 6.75Gbps. NOTE: We recommend using direct HDMI to HDMI connections, avoid using signal converters/adapters at all costs. CAT 5 cable is NOT recommended!
- Vibrant Video & Authentic Audio- LUOM HDMI extender over Cat5e/6/7 supports video resolutions of 3D/1080p/1080i/720p/576p/576i/480p/480i; The HDMI Cat6 extender also supports HDMI High Definition audio for a full range of audio types, including Dobly TrueHD, DTS-HD Master Audio, and LPCM7.1/DTS/Dobly-AC3/DSD
- Support EDID handling abilities: EDID Management function for working compatible with some unusual TV/ monitor.Copy mode: connect the display to the HDMI input port, then press the button, it'll copy the EDID to the extender; Reset EDID: press the button for 3 seconds, it'll reset the EDID to 1080p 3D stereo.
- Easy to install, no driver required, built-in automatic adjustment system. Can handle your PC, DVD player, PS4, PS5, TV box, etc. Widely used in digital signage, churches, classrooms, meeting rooms, meeting room projectors, games, video production, etc.
- Length of Cat5e cable between Rx and TX: 165ft(50m)
- Length of Cat6/Cat7 cable between RX and TX: 196ft(60m)
- HDMI Support: 24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i
- Support audio format: DTS - HD/Dobly-true HD/DTS/Dobly-AC3/DSD
- Max transmission bandwidth: 1.65Gbps
- Input/Output HDMI cable distance: 49ft(15m) AWG26 HDMI standard cable
- Power adapter format: Input:AC (50HZ, 60HZ) 100V-240V

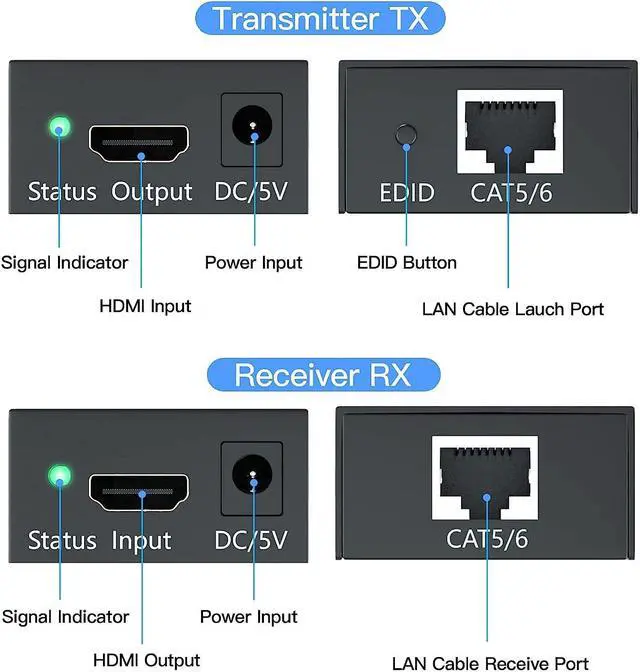

CONNECTING AND OPERATING
- Connect one HDMI cable(AWG 26) up to 15 meters between HDMI source device and TX Extender
- Connect one HDMI cable(AWG 26) up to 20 meters between sink device and RX Extender
- Connect single cat-6/7(recommended) cables up to 60 metres instead of HDMI cable between TX and RX Extender
- Connect 5V power supply
FULL HD 1080P, 3D
HDMI Extender Adapter over cat5e/6/7 Support up to 1080p, 3D resolution, Support deep color up to 36 bits;Support lossless compressed digital audio.
Easy setup
No driver required; Uses one piece of CAT5/6/7 cable to extend the HDMI signal up to 196ft(60M).More flexibility and convenience for installation.
EDID copy function
Copy mode: connect the display to the HDMI input port, then press the button, it'll copy the EDID to the extender;
Reset EDID: press the button for 3 seconds, it'll reset the EDID to 1080p 3D stereo.

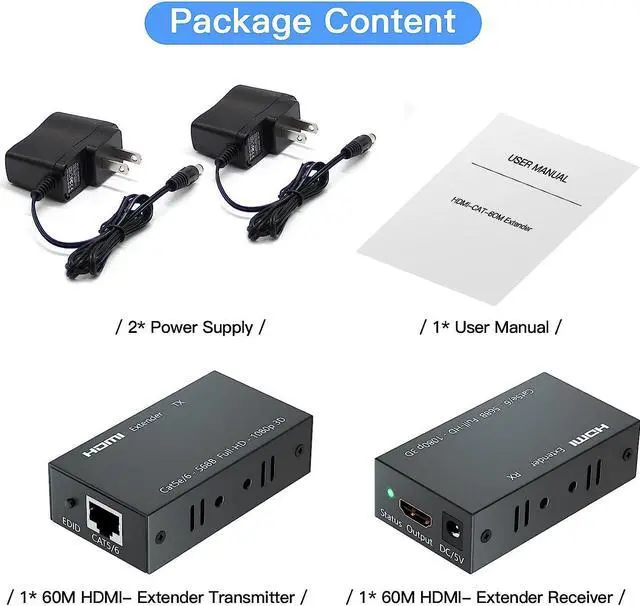

PACKAGE CONTENTS
1 * Main unit NO.1. HDMI Sender
2 * Main unit NO.2. HDMI Receiver
3 * 2x 5V DC power supply
4 * User's Manual
