    HDMI KVM USB Extender, HDMI KVM Extender HD 1080P@60HZ Up to 6m(196ft),HDMI Extender Over Cat5e/6 with Loop Out Function - USB Keyboard Mose Support and IR Control

    Limited time offer, ends 10/13 By Luom Electronics Store

    Be the first to review this product...
    • HDMI extender provides extension of HDMI signals long distances over a single CAT5e/6 cable, it supports high resolution up to 1920x1080@60Hz, POC,HDMI loop out and KVM Remote control. The extender can use for a wide range of applications requiring long distance transmission of high resolution with high quality by its good stability and powerful security.
    • Video resolution:Up to 576P,720P,1920x1080P@60Hz,3D,HDR;
    • Audio format:LPCM2/5.1/7.1,Dolby Digital,DTS 5.1,Dolby Digital+ ;
    • POC function:Power over CAT cable,only need one power adapter;

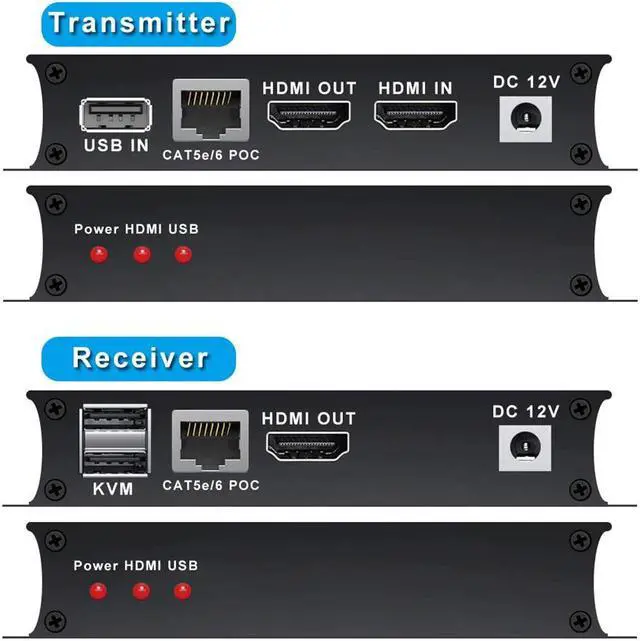

    • HDMI loop out function:The transmitter with one HDMI local loop out;
    • Uncompressed mode:ZERO Delay,No loss;
    • KVM Rmote Control:keyboard and mouse remote control transmitter from long distance;
    • Male to male:one TX to one RX applicataion;
    • Video standard:compliance with HDMI 1.4b and HDCP 1.4 ,and compliant DVI standard;
    • Built-in automatic adjustment system:make the image smooth, clear and stable;
    +
    +
    Overview
    Specs
    Reviews
    avatar

    Any questions? Our AI beta will help you find out quickly.

    Try me now
    image for this item
    2023 HDMI KVM Extender RJ45 HDMI USB Extender 60m over Cat5e/Cat6 POC HDMI Extender Mouse Transmitter Receiver for PC Computer

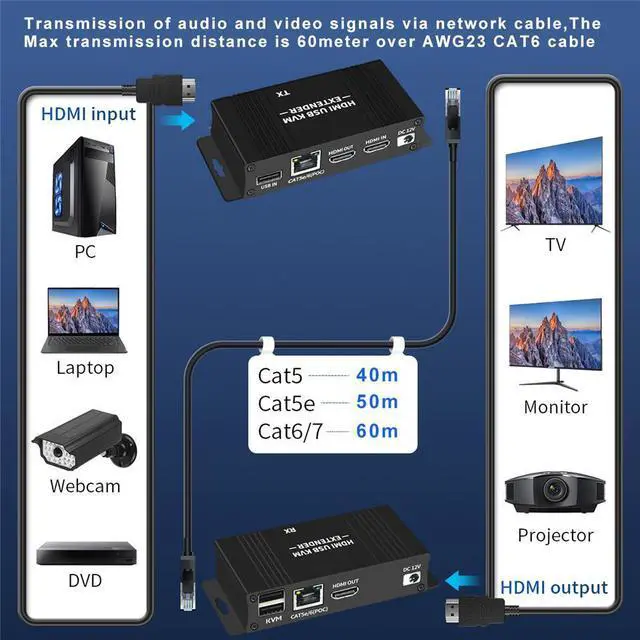

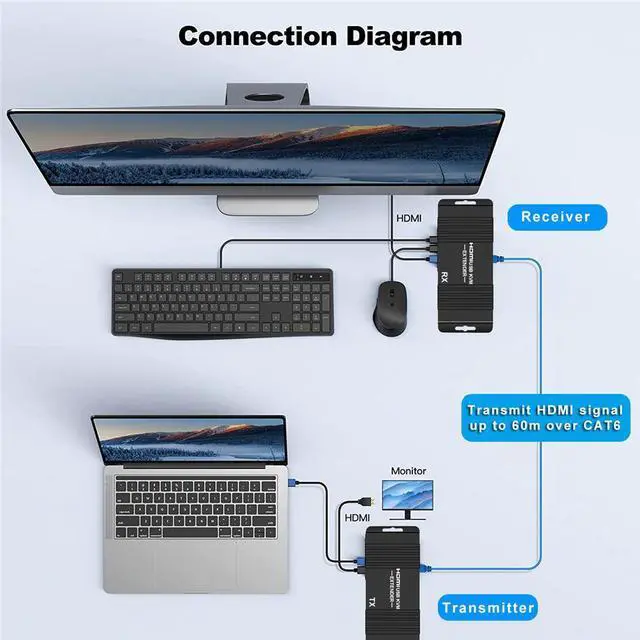

    1080p@60Hz Up to 196ft(60m): Extends HDMI signal over single cat5e/6 cable up to 196ft/60m with stereo audio and USB.

    usb2.0 Up to 480 Mbps With 2 high-speed USB 2.0 ports, the device extends USB signal up to 196ft/60m simultaneously via Ethernet cable. It is plug and play, ideal for remote control of computer/NVR by keyboard and mouse.

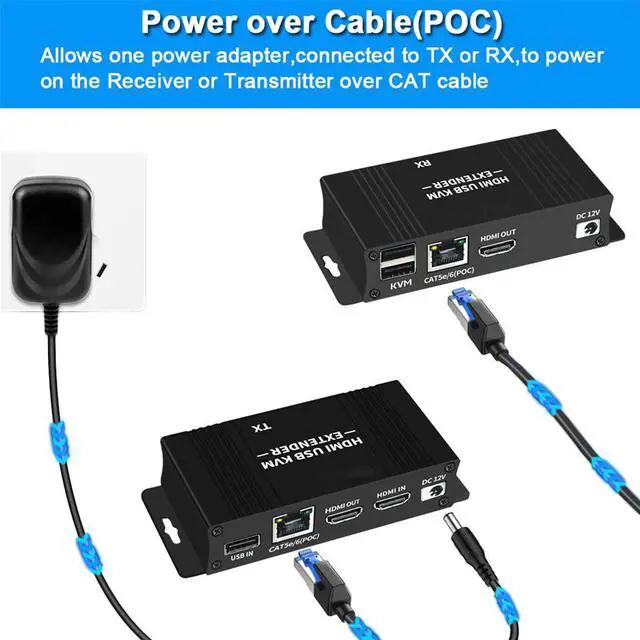

    Power Over Cable With two-way POE function, only one power supply is required at either side. It is more user-friendly and space-saving. Note: It is recommended to install the power adapter at the receiver side.

    Full-covered Metal Casing Compact sturdy metal enclosure provides greater durability, minimizes EMI/RFI noise interference, and offers excellent heat dissipation.


    Features:

    • Long range transmission: up to 60m/196ft over a single AWG23 CAT6 cable;
    • Video resolution: Up to 576P,720P,1920x1080P@60Hz,3D,HDR;
    • Audio format: LPCM2/5.1/7.1,Dolby Digital,DTS 5.1,Dolby Digital+ ;
    • POC function: Power over CAT cable,only need one power adapter;

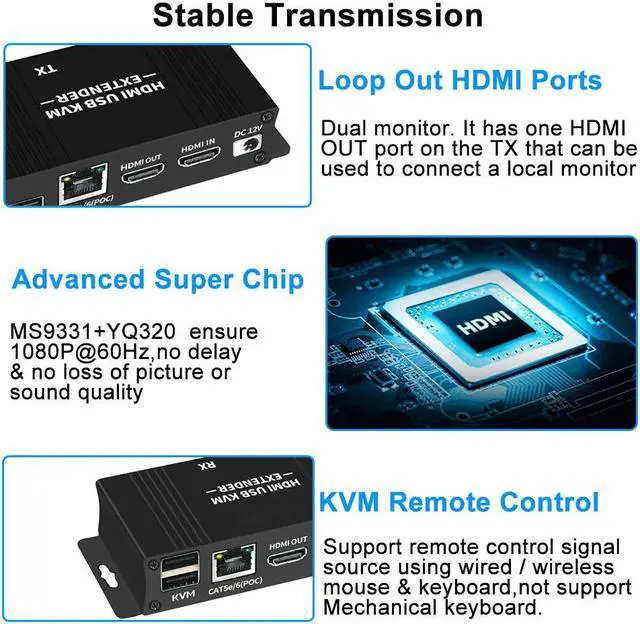

    • HDMI loop out function: The transmitter with one HDMI local loop out;
    • Uncompressed mode: ZERO Delay,No loss;
    • KVM Rmote Control: keyboard and mouse remote control transmitter from long distance;
    • Male to male: one TX to one RX applicataion;
    • Video standard: compliance with HDMI 1.4b and HDCP 1.4 ,and compliant DVI standard;
    • Built-in automatic adjustment system: make the image smooth, clear and stable;
    • Built-in ESD protection system: make transmission much safer. Perfect hdmi extension adapter for large homes, factories, construction sites, data control centers etc;plug and play
    • Simple to install, plug and play
    image for this item

    Specifications:

    Video
    Standards: HDMI 1.4b; HDCP 1.4 and DVI compliant
    Maximum pixel clock: 300MHz
    Maximum data rate: 10.2Gbps
    Resolution: 1920X1080P@60Hz
    Connector: HDMI-A
    Impedanc: 100ohm

    USB
    Interface: PC: Type B USB interface; connect to pc;

    K/M: connect wired or wireless USB keyboard and mouse
    USB signal: HID Signal

    CAT
    Interface: RJ45/IEEE-568B
    Transmission distance: CAT5:40m/131ft,CAT5e:50m/164ft,CAT6:60m/196ft



    Note:

    1. the K/M USB port only support wired or wireless keyboard and mouse,not support Mechanical keyboard,USB camera,Scanner,USB flash driver ,printer etc.
    2. For CAT cable,please you use AWG23 CAT5e/6 cable with IEEE-568B connection.
    image for this item
    image for this item
    image for this item
    image for this item
    image for this item
    image for this item
    image for this item
    HDMI extender provides extension of HDMI signals long distances over a single CAT5e/6 cable, it supports high resolution up to 1920x1080@60Hz, POC, HDMI loop out and KVM Remote control. The extender can use for a wide range of applications requiring long distance transmission of high resolution with high quality by its good stability and powerful security.

    Video resolution: Up to 576P, 720P, 1920x1080P@60Hz, 3D, HDR;
    Audio format: LPCM2/ 5.1 / 7.1, Dolby Digital, DTS 5.1, Dolby Digital+;
    POC function: Power over CAT cable, only need one power adapter;
    HDMI loop out function: The transmitter with one HDMI local loop out;
    Uncompressed mode: ZERO Delay, No loss;
    KVM Rmote Control: keyboard and mouse remote control transmitter from long distance;
    Male to male: one TX to one RX applicataion;
    Video standard: compliance with HDMI 1.4 b and HDCP 1.4, and compliant DVI standard;
    Built-in automatic adjustment system: make the image smooth, clear and stable;
