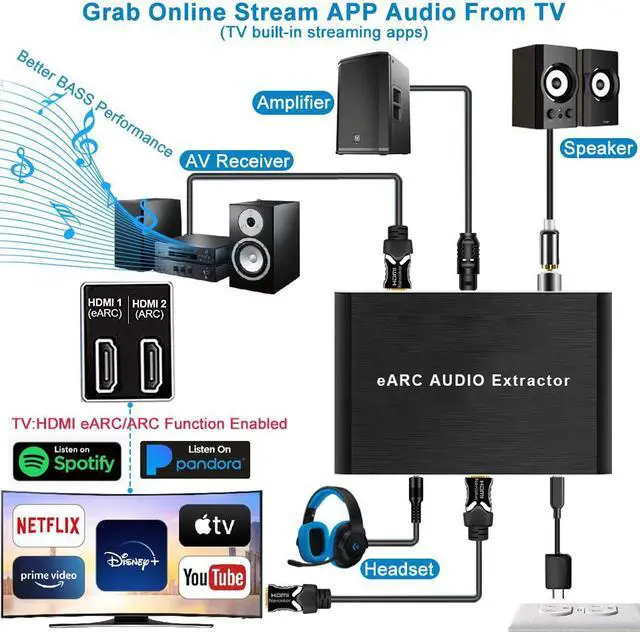

This HDMI-compatible Audio Return Channel Adapter can transmit audio from TV of support eARC function to optical,coaxial,3.5mm audio and HDMI-compatible only of adapter via HDMI-compatible ARC / eARC interface, and output simultaneously, which perfectly solves problems of having no audio output interface that TV cannot be connected to the sound system.Supports the audio separation of PCM, 7.1CH Lpcm, DTS, AC-3, Dolby panorama and other audio in the input HDMI HD signal and outputs from optical fiber, 3.5mm and 'HDMI-compatible AUDIO Only' output ports.
Features:

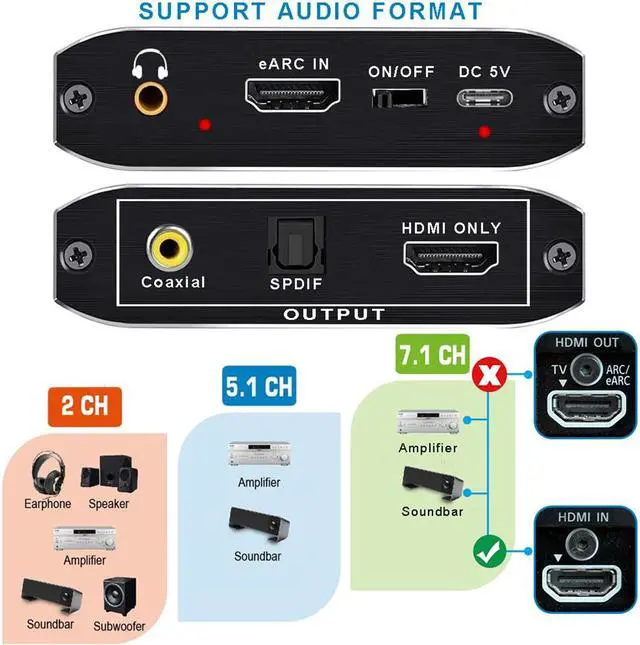

- Support SPDIF output
- Support Coaxial output
- Support 3.5mm stereo headphone output
- Support HDMI-Audio only 7.1CH output
- High-performance audio amplifier
- Support switch noise reduction
- Support automatic signal mute function
- Support transmission of 192KHz audio sampling rate
- Optical fiber coaxial interface supports 5.1 channel transmission
- (ARC/eARC and 3.5mm headphone output volume can be controlled by TV (CEC)
- PS:Both ARC/eARC and CEC function need to use 19+1core HDMI-compatible cable.

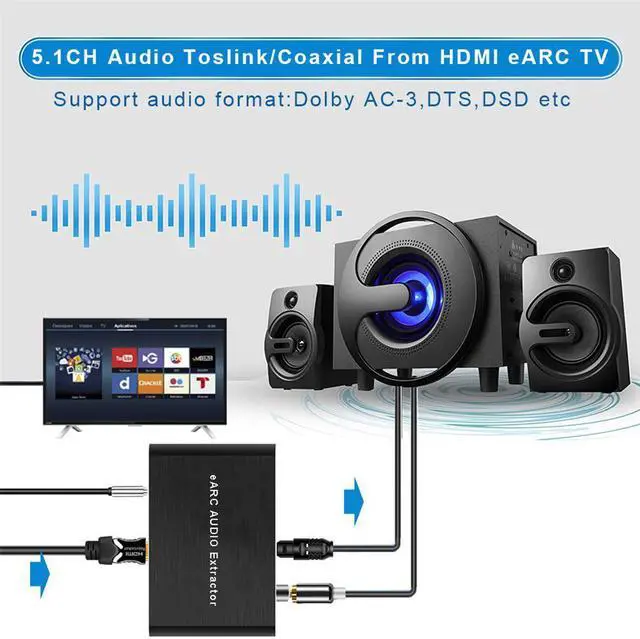

Instructions for Coaxial fiber 5.1 audio output
- A: Check whether the TV is currently playing 5.1-channel audio.
- B: Set the fiber port of the TV as source code output.
Instructions for HDMI Audio Only audio 7.1 audio output only
- A: Check whether the TV is currently playing 7.1 channel audio.
- B: Set the fiber port of the TV as source code output.
When optical fiber coaxial outputs 5.1 or HDMI AUDOI 7.1 , the player's audio source device must be set to "source code" (different manufacturers have different representations, including source code SPDIF digital, bitstream, transparent transmission, automatic, RAW, etc.), and only when the souce code is transmitted to HD371 can it be separated into source code 5.1/7.1 output.
