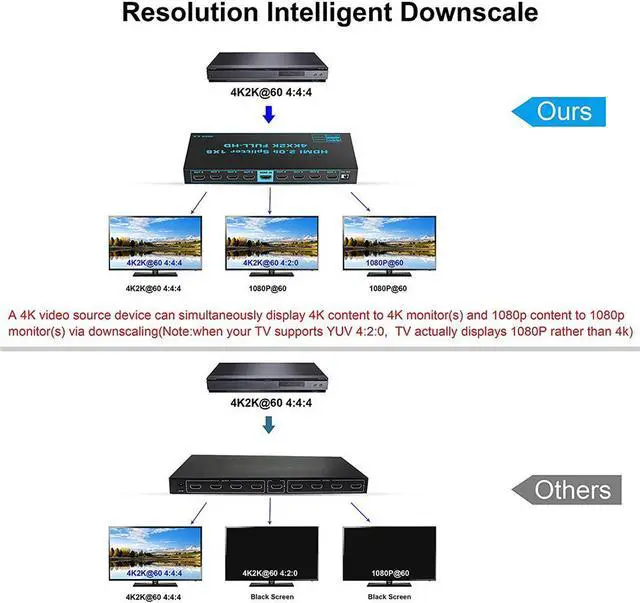

HDMI 2.0band HDCP 2.2,4K@60Hz 1x8HDMI Splitter.support Scaler(one Out 4K@60Hz,Another Out 1080P),RGB 4:4:4,copy EDID,HDR 10 .
Description:

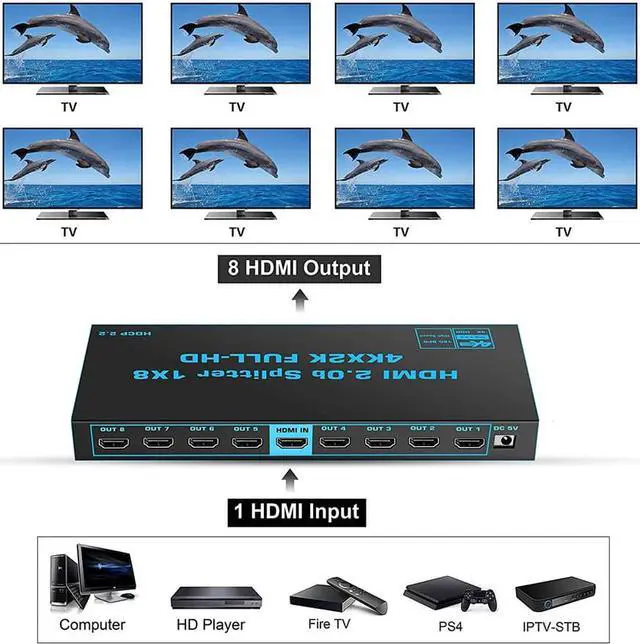

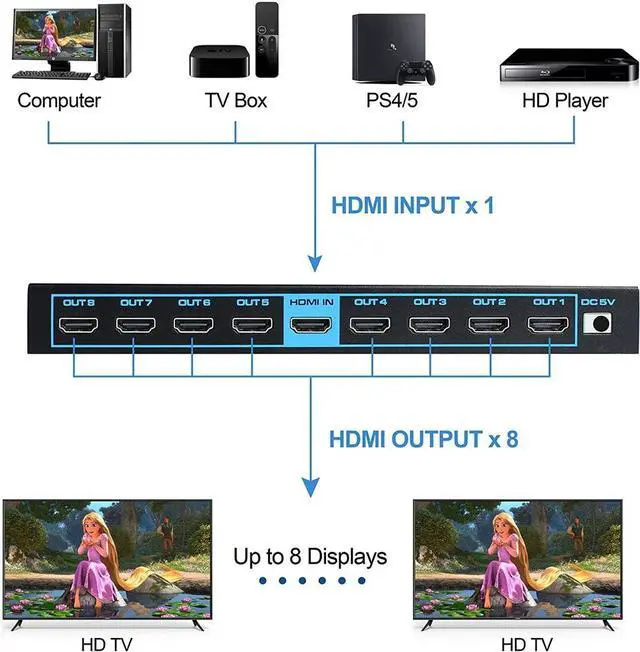

HDMI 2.0 Splitter uses a single HDMI source,accessing to multiple HDMI sinks. It allows one HDMI device to be split easily to 8 HDMI compatible monitors or projectors. In addition, it can be placed at the end of a long HDMI cable to regenerate the HDMI signal. The resolution of this hdmi splitter can be up to 3840x2160@60Hz.
HDMI 2.0 Splitter uses a single HDMI source, accessing to multiple HDMI sinks. It allows one HDMI device to be split easily to 8 HDMI compatible monitors or projectors. In addition, it can be placed at the end of a long HDMI cable to regenerate the HDMI signal. The resolution of this hdmi splitter can be up to 3840x2160@60Hz.
Specification:
HDMI Version: HDMI 2.0 b, HDCP 2.2
HDMI Resolution: 24/50/60fps/480i/480p/576i/576p/720p/1080i/1080p/2160p/4K@60Hz
Supports Video Color Format: 24bit/deep color 30bit, 36bit, 48bit
Audio Format: DTS-HD/Dolby-trueHD/LPCM 7.1 /DTS/Dolby-AC3/DSD HD (HBR)
Max Bandwidth: 600MHz
Max Baud Rate: 18.5G bps
Input/Output TMDS Signal: 0.5 ~ 1.5V olts p-p (TTL)
Input/Output DDC Signal: 5Volts p-p (TTL)
Input Cable Distance: 17ft AWG28 HDMI standard cable
Output Cable Distance: 17ft AWG28 HDMI standard cable
Max Working Current: 1200mA
Power Adapter Format Input: AC100V-240V (50/60Hz); Output: DC 5V/2A
Operating Humidity Range: 5 to 90%RH (No Condensation)
