| Brand | LUOM |
|---|---|
| HDMI resolution | 3840*2160/30Hz |
| Max bandwidth | 400MHz |
| Input cable distance | Less than 8m AWG26 HDMI 1.4 standard cable |
| Max working current | 500mA |
| Operating Temperature range | (-15 to +45 centigrade ) |
| Dimension (L x W x H) | 195 *70*23 (mm) |
| HDMI version | HDMI 1.4 |
|---|---|
| Support video format | 8/10 deep color |
| Max band rate | 10.2Gbps |
| Output cable distance | Less than 8m AWG26 HDMI 1.4 standard cable |
| Power adapter format | Input: AC (50HZ, 60HZ) 100V-240V; Output: DC 5v/2A |
| Operating Humidity range | 5 to 90%RH (No Condensation) |
| Weight | 300g |
4 In 4 Out HDMI Matrix Switch with IR Remote Control

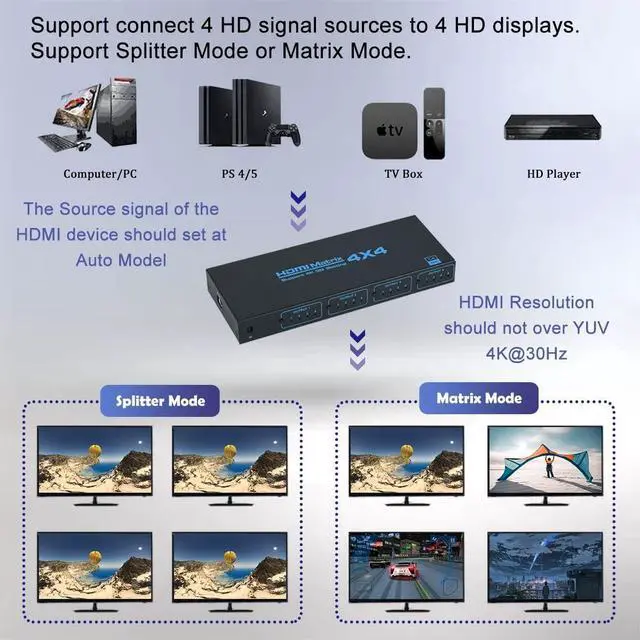

- HDMI Matrix Switch 4x4: This HDMI Matrix Switch 4x4 can connect 4 HD signal sources to 4 HD display terminals not over YUV 4K@30Hz. The matrix allows 4 HDMI devices to be switched or split easily to 4 HDMI compatible monitors or projectors. It supports HDMI 1.4, 1080P@60Hz, 3D, YUV 4:2:0 . This 4x4 HDMI Matrix Switch can be controlled by a IR remote control. When Switch by a local button or remote control, Please Wait 3-5S to show on display. Not Seamless
- HDMI Video Format: Support HDMI 1.4, 1080P@60Hz, 3D, YUV 4:2:0
- No Need EDID Management: This HDMI Matrix Switch 4x4 no need EDID Management. When you connect 4 display or monitor. This HDMI Matrix Switch will recognize the lowest resolution of the four monitor. And then all HDMI input device will auto set at this lowest resolution. So Please make sure that your the resolution of your HDMI input device to this HDMI Matrix is auto.
- Compatibility: Compatible with most device and display. Input support: Computer, PS3, PS4 pro, Xbox, Xbox one, Nintendo Switch, HD player, Fire TV, Apple TV etc. Output support: Projector, HDTV etc.
- Package Includes: 1x HDMI Matrix 4x4, 1x IR Remote Control, 1x Power adapter, 1x User Manual.

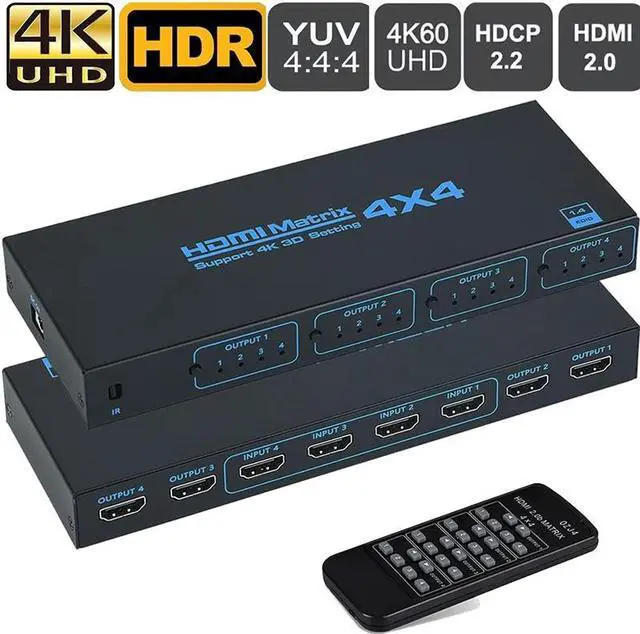

4X4 HDMI Matrix Switch

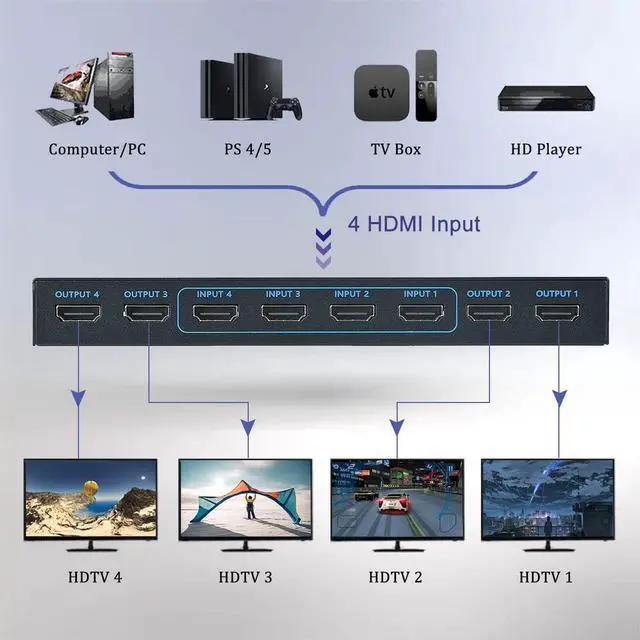

The 4 in 4 Out HDMI Matrix Switch allows four HDMI devices to be switched or split easily to four HDMI compatible monitors or projectors.
It is suitable for home theater, villa, conference room, shopping mall, video wall, school and corporate training environments etc.
Features
- Support HDMI 1.4.
- Support 3D video format.
- Support highest resolution up to YUV4:2:0 4K@30Hz.
- HDMI inputs switch and split to 4 HDMI displays.
- Input cable distance: <8m AWG26 HDMI 1.4 standard cable.
- Output cable distance: <8m AWG26 HDMI 1.4 standard cable

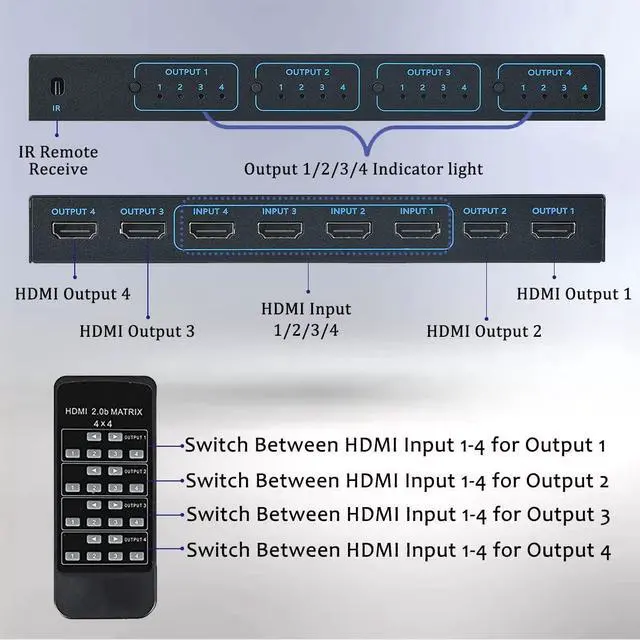

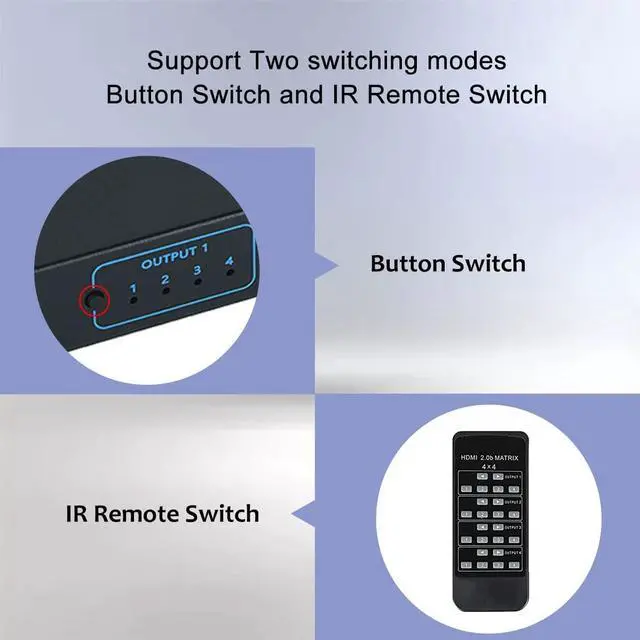

Two Switching Modes
Button Switch - Simply choose whichever inputs you want with the button on the box.
IR Remote Control Switch - Effortlessly swap HDMI channels with the remote.
Support 3D video format
HDMI Video Format: Support HDMI 1.4, 1080P@60Hz, 3D, YUV 4:2:0.

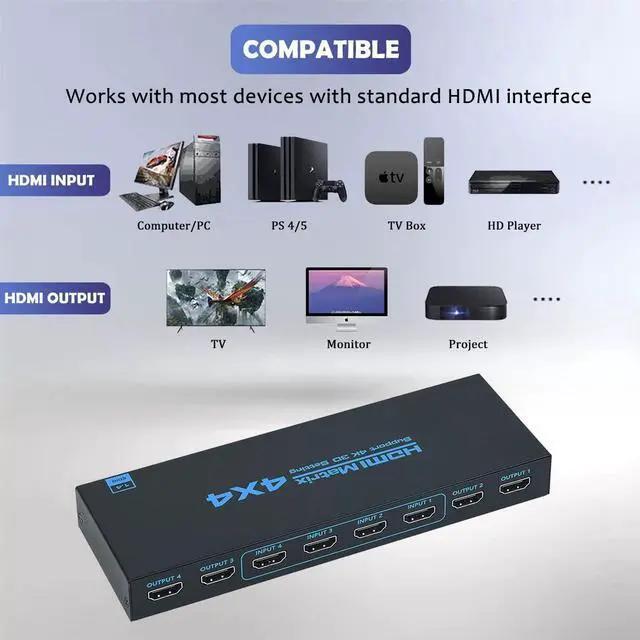

Wide Compatibility
Input support: Computer, PS3, PS4 pro, Xbox, Xbox one, Nintendo Switch, HD player, Fire TV, Apple TV etc.
Output support: Projector, HDTV, Monitor etc.
