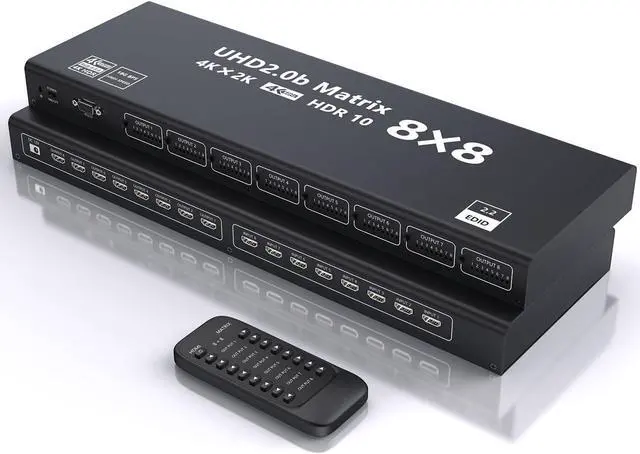

Product Description: Video source output source matrix of 8×8 can pick up eight HDMI signal sources of eight displays at the same time.
It can easily and freely split or exchange eight hdmi signals among eight displays or projectors its compatible with the signals played on.
Extension of additional infrared receiver, IR transmitter, RS232 provide remote control. HDMI Matrix 8×8 has the ability to equalize and amplify to ensure HDMI signals are transmitted over long cables without quality loss. Supporting a wide range of editing matrices provides solutions for digital entertainment centers, HDTV retail and display sites, high definition televisions, DVDs and projectors.Factories, noise, space and security issues, data center control, information distribution, conference r ntation, schools and corporate training environments .
| Video Resolution : | 4K (3840*2160@60Hz) ; |
|---|---|
| Video format support: | 8/10/12 bit deep color ; |
| Audio formats supported: | DTS-HD/Dolby trueHD/LPCM7.1/DTS/Dolby AC3 ; |
| Max baud rate: | 18Gbps ; |
| Distance of transmission cable | less than 5 meters HDMI AWG26 (4K); less than 20 HDMI AWG26 (1080) ; |
| Distance of transmission cable | less than5 meters HDMI AWG26(4K); less than20 HDMI AWG26(1080) ; |
| HDMI Matrix Ports: | 8*HDMI Input; 8*HDMI Output; 1*RS232 Port; 1*DC 12V Power Port |
| Power adapter: | Input: AC (50 Hz, 60 Hz) 100V-240; Output: DC 12V/3A ; |
| Operating temperature range: | (-15 +55°C); |
| Operating humidity range: | 5% to 90% RH (no shrinkage) ; |
| Dimension (L xH x W): | 17.72 x1.57 x 5.91 inches; |
| Weight: | 4 pounds; |
| Package Content: | 1*4K@60HzHDMI Matrix 8x8;1*IR Remote Control ;1*12V Power Adapter ;1*User Manual. |

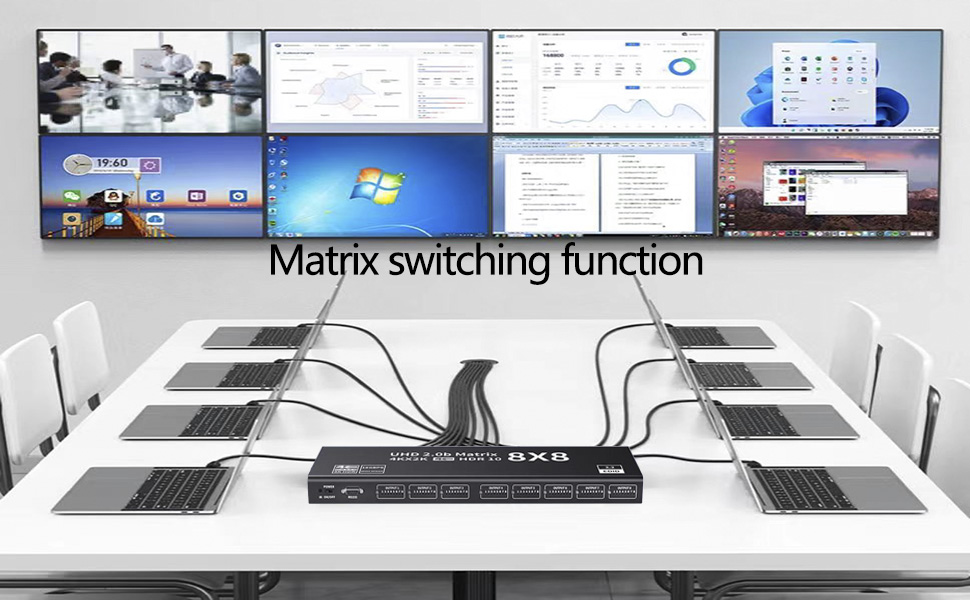

Arbitrary switching:
Quick switching for video conferencing;
8-channel HDMI signal input and output, multi-person use at the same time, fast switching, no need to frequently unplug the cable and debugging computer;
No driver required, plug and play.

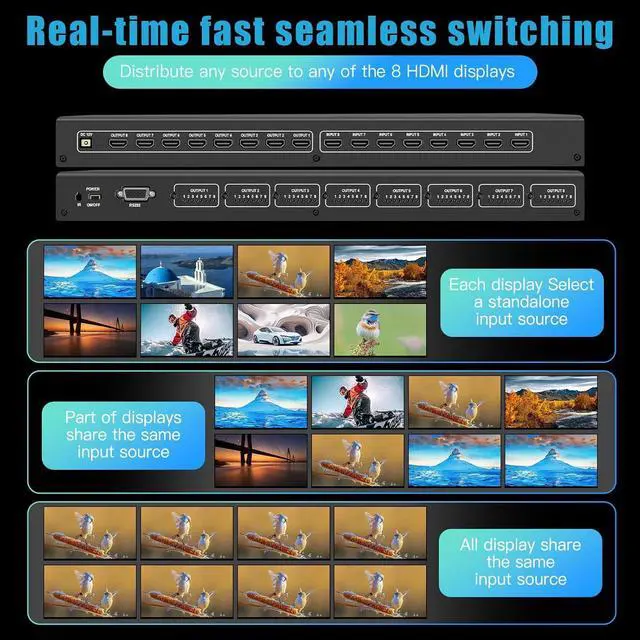

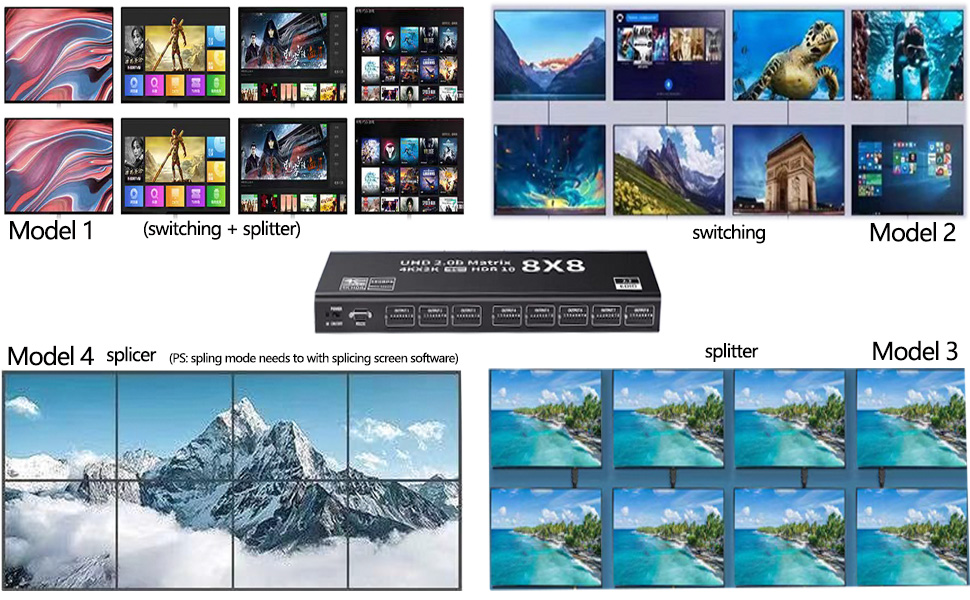

Multiple matrix modes:
Support distribution display, cross-switching display, splicing display,(PS: splicing mode needs to be used with splicing screen software);
- Mode 1: 8-channel signal can be partially displayed the same, partially displayed differently.
- According to the work needs to allocate the display screen combination screen;
- Mode 2: 8 signals are displayed on different screens and can be switched between each other at will;
- Mode 3: 8-channel signal display the same screen;
- Mode 4: 8-channel signal splicing into a complete picture, note: splicing mode requires the installation of splicer device.

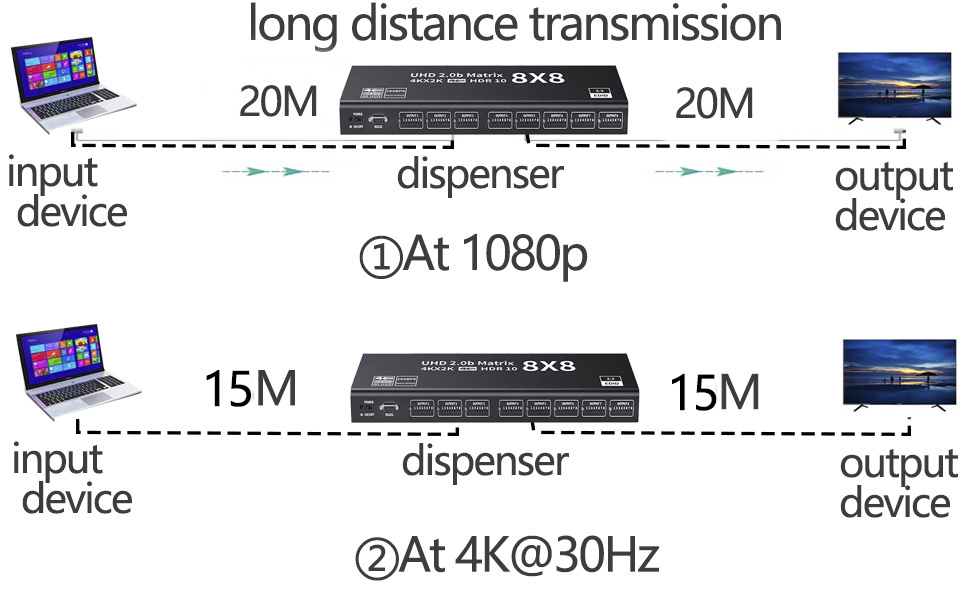

40 meters long distance transmission
long distance transmission:
- 40 meters long distance transmission: Support HDMI cable in the case of 1080P signal source
Input side 20 meters transmission, receiving side 20 meters signal transmission;
- 30 meters long distance transmission: Support HDMI cable in the case of 4K@30Hz signal source
Input side 15 meters transmission, receiving side15 meters signal transmission;
- 20 meters long distance transmission: Support HDMI cable in the case of 4K@60Hz signal source
Input side 10 meters transmission, receiving side 10 meters signal transmission.
Support HDMI resolution Up to 4K (3840*2160@60Hz):
Bandwidth:
HDMI 1.4 has a maximum bandwidth of 10.2 Gbps, while HDMI 2.0 supports a maximum bandwidth of 18 Gbps.
Resolution and refresh rate:
HDMI 1.4 supports up to 4K resolution video (3840x2160), but only at a refresh rate of 24Hz or 30Hz. HDMI 2.0 supports higher resolutions and refresh rates, and can transmit 4K resolution video at up to a 60Hz refresh rate, as well as higher resolution video.
HDR Support:
HDMI 1.4 does not support HDR (High Dynamic Range) video transmission, while HDMI 2.0 supports HDR video transmission, which provides a wider dynamic range and better picture quality.
Support 4K HD:
This HDMI Matrix 8×8 Input resolution supports 4K@60Hz/4K@30HZ/1080P and is backward compatible. Provide excellent video quality, support 3D stereo imaging technology, 4K HD transmission, clearer and more detailed colors, lifelike picture quality.

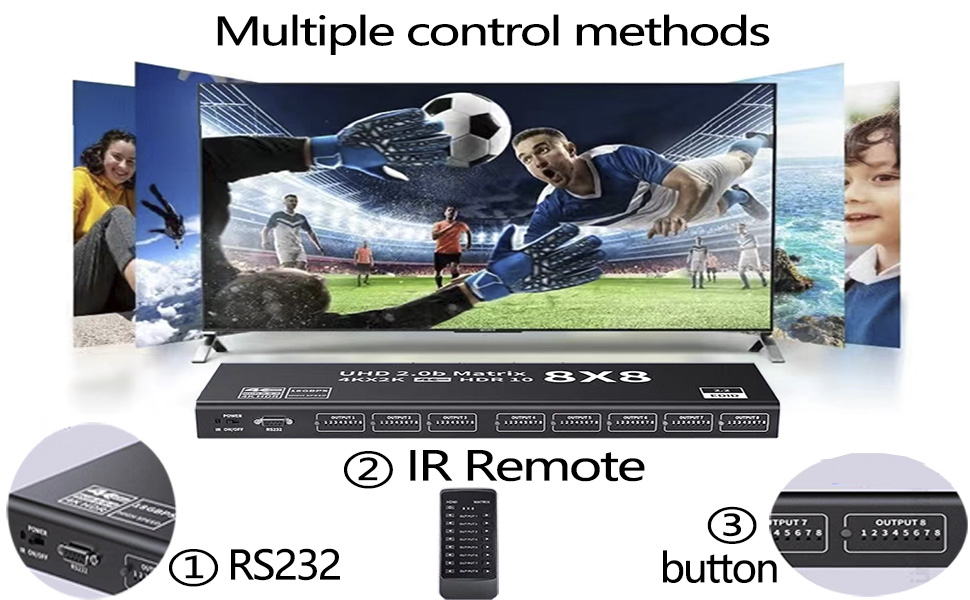

Multiple control methods:
This 4K HDMI Matrix 8×8 can be IR Remote control/RS232 serial port /Panel key switching,no matter which switching mode is simple to operate, according to the occasion flexible switching, to provide us with the best experience effect!
Wide range of application scenarios:
This HDMI Matrix Switch 8 in 8 out support with the splicer to achieve a variety of display effects, can be widely used in bars, performances, security monitoring, advertising display, multimedia teaching and other scenarios.
