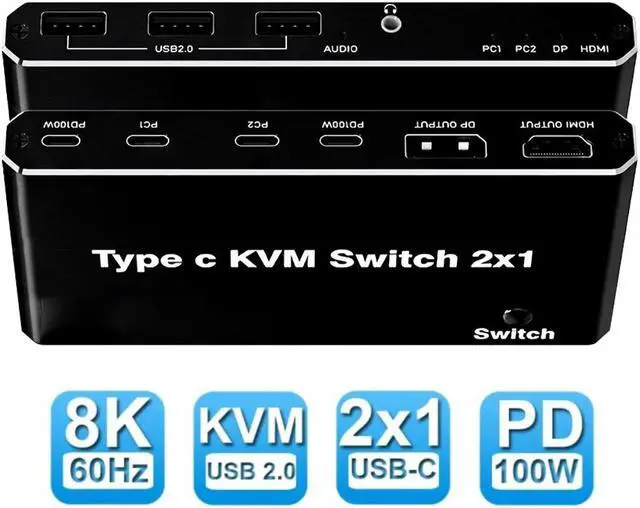

Displayport 1.4,HDMI 2.1 and HDCP 2.3,8K@60Hz 4K@120/144Hz 2 port Thunderbolt 4 USB C KVM switch with 3 x USB 2.0 port and 2 x 100W PD Reverse-Charge,support RGB/YUV 4:4:4 and 3.5mm jack audio extractor,One-button Switching,HDMI / DP out to be selected by yourself,Not support HotKey switch.
Features:

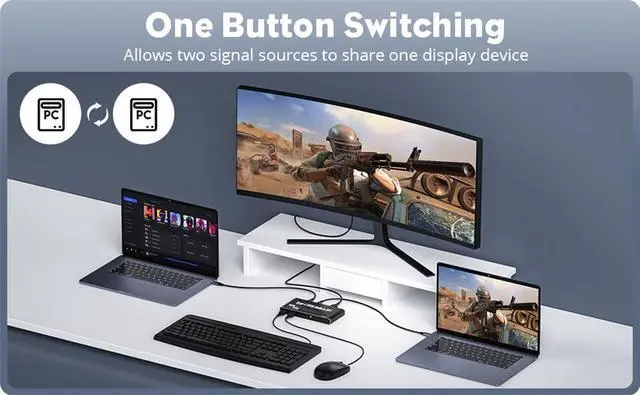

2 x USB-C 8K KVM Switch with one DisplayPort 1.4 or HDMI 2.1 Port for Video,with this 2 Port 8K KVM Switcher,you are able to connect from the switcher's two PC Input Port to your USB-C PC/Laptops via two standard USB-C Gen-2 Cable,then connect from the switcher's Standard DP 1.4 /HDMI 2.1 port to your Monitors via your own displayport 8K Standard Cable,you can press the "Switch"button to switch between two of your PCs.Note:You must plug our USB C to USB A cable to power the switcher while working

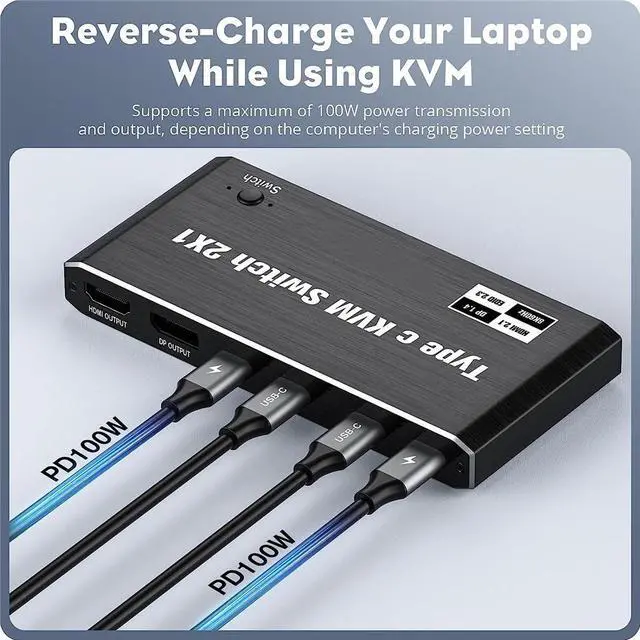

With 100 W Power Delivery, it provides 100W power to charge the signal source, ensuring uninterrupted operation during long working hours
With 3 x USB 2.0 Output Port,two Computers share one set,you can connect 3 x USB2.0 Output to your USB Mouse,Keyboard,Printer,Disks,or other usb devices,while you switch from one PC to another PC,Your USB device will be synced to your external display without pluging and unpluging the related USB device repeatedly.The USB Port supports the USB 2.0 Specifications and the transfer rate is 480Mbps
DisplayPort 1.4 or HDMI 2.1 Video Output,with this switch,you can max output 8K@60Hz 4K@144Hz resolution in your external DisplayPort/HDMI Monitors,This requires that your USB-C pc and HDMI/DisplayPort cable Monitors should both supports the max resolution you would like to output,that is,your computer's USB-C port should be thunderbolt 4 and Monitor's DP/HDMI Port should be select(Note:HDMI and DP port could not display at the same time,only support single monitor).If laptops with usb-c Gen-2 Port or Thunderbolt 3 Port,it can only max up to 4K@60Hz
This USB-C KVM switch equipped with two USB-C Gen-2 Cable as accessories to connect your USB-C Laptops,meanwhile,it includes a USB-A to USB-C Cabler for Power.With Multiple USB Ports,solved the problems of insufficient USB Interface,Two computers share one screen, and connect USB devices such as mouse and keyboard synchronously.Notes:The PC1 Input and PC2 Input only connect to your USB-C PC,these two ports are forbidden to connect to your USB-C Hub
Widely used in many occasions: Our This USB-C Switch is easy to use and can be widely used in Studying, Entertainment, Work and other Occasions, ultra-High-Definition Smooth Video and Picture Quality Experience, Multi-source Switching, providing multiple possibilities for work and entertainment
Notes while using:
1:If your USB-C laptops with USB-C/Thunderbolt 3 Port,you can max output 4K/60Hz in your Displays.If USB-C Laptops with Thunderbolt 4 Port and your Monitors support DP1.4 or HDMI 2.1,then you can max output 4K@144Hz(Your dp/hdmi cable,your usb-c cable and your dp/hdmi monitors should supports 4K@144Hz).
2:While connecting,you should power the switch via our attached USB-A to USB-C Cable. 3:We do not suggest to connect to Phone and Tablet.
3.HDMI and DP port could not display image at the same time,only support single monitor

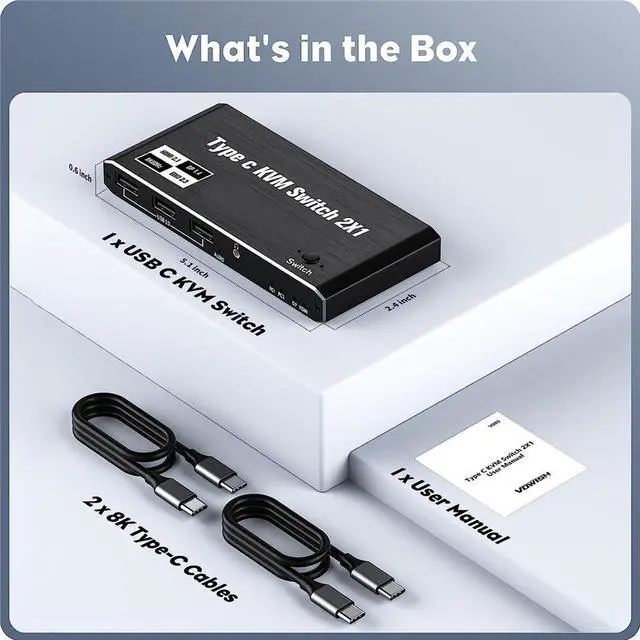

Package contents
1 x USB C Thunderbolt 4 KVM Switch
1 x USB Power Cable(Type A to Type C)
2 x 1.2 meter USB Gen 2 Cable(Type C to Type C)
1 x User Manual
USB C KVM Switch 8K@60Hz 4K@120Hz, 2 Port Type C KVM Switch for 2 Computers Share 1 Monitor, USB C KCM with 3 USB 2.0 Ports & 100W Power Delivery, 2 USB-C Cables Included
- Specifications

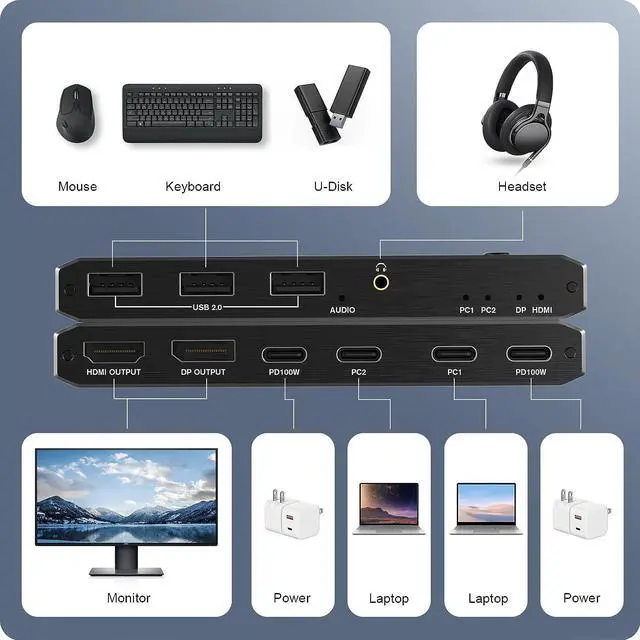

Input Port: 2 x USB Type C Female Port for USB-C PC Input,2xUSB Type-C Female for 100W Power Delivery - Output Port: 1 x DP Female Port,1x HDMI Female Port,4 x USB 2.0 A Female Port, 1x3.5mm Jack
- Bandwidth: DP 1.4: 32.4Gbps / HDMI 2.1: 48Gbps / USB 2.0: 480Mbps
- Resolution: HDMI/DP:1080P@60Hz/120Hz/165Hz, 4K@60/120Hz/144Hz(DSC), 8K@30, 8K@60Hz(DSC)
- DP Deep Color: 8bit / 10bit / 12bit
- Chroma: 4:2:0 / 4:2:2 / 4:4:4
- Chassis: Aluminium alloy Shell
- Dimension: 122mm(L)x48mm(W)x19.3mm(H)
- Cable Length: 2.0m Max(Standard 8K DP/HDMI cable)
- Extra Power: Required,via a USB A to USB-C Cable to your USB Devices or Power Adapter
- Accessories: 2x 1.2 meter USB-C 3.1 Gen-2 Cable;1xUSB A to USB C Power Cable;User Manual
- USB-C: Thunderbolt 3 / Thunderbolt 4 / Gen 2 Standard
- HDMI: HDMI 2.1 and HDCP 2.3 Standard
- DP: DisplayPort Standard 1.4 Standard
