HDMI 2.0b and HDCP 2.2,4K@60Hz 4X1 HDMI audio extractor with ARC,Coaxial audio,3.5mm Jack & optical Toslink SPDIF.support RGB 8:8:8(Dobly Atmos),EDID,HDR10 .

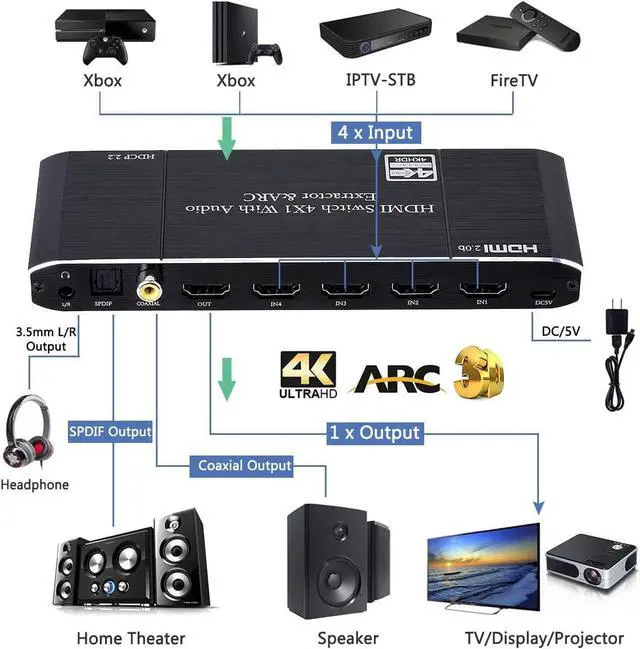

- There are 4 ports HDMI input,1 port HDMI output, Toslink output, Coaxial Output, L/R output HDMI output port with ARC function
- Support 480i / 480p / 576i / 576p / 720p@50/60Hz / 1080p@50/60Hz / 4Kx2K@20/30Hz/60Hz with 36bit RGB / YcbCR 4:4:4 / (4k@60hz RGB8:8:8)
- Max bandwidth per channel: 600MHz ; Max baud rate per display: 18Gbps; Compliant with HDMI2.0b, HDCP2.2 /1 .4 /1.3 /1.2/1.1
- HDMI input and output hdmi 2.0b cables can reach up to 3 meters if your Resoltion up to 4K@60HZ; can reach up to 5 meters if your Resolution up to 4K@30HZ
- Support 24/30/36 bit deep color per channel (Kindly Note: It is can not compatible with DVI. We do not recommended that you use HDMI to DVI cable connect to your projector /monitor)
Features:
- There are 4 ports HDMI input,1 port HDMI output with ARC function, Toslink output, Coaxial Output, 3.5mm Jack output.

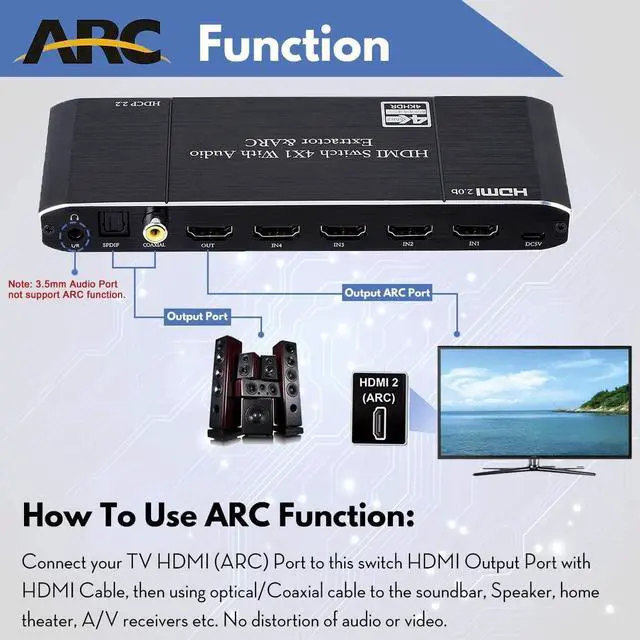

- 2.Coaxial and Toslink port output support audio return function (ARC)
- 3.5mm Jack port output and R/L support audio extract function ,it does not support ARC
- support 480i/480p/576i/576p/720p@50/60Hz/1080p@50/60Hz/4Kx2K@20/30Hz with 24bit RGB/YcbCR 4:4:4/YcbCR 4:2:2.
- Max.bandwidth per channel: 600MHz. Max. baud rate per display: 18.2Gbps
- Compliant with HDMI2.0 ,HDCP1.4 /1.3 /1.2/1.1 HDCP2.2
- Audio Supports LPCM 7.1CH,Dolby TrueHD,and DTS-HD Master Audio
- Supports Dolby True-HD, DTS-HD, AC3, DTS, DSD. This HDMI Switch will output the Dolby True-HD, DTS-HD, AC3, DTS, DSD audio format, But can't decode these audio formats.
- Support HDR 4K HDR10 Wide Applicability: Compatible with any HDMI devices such as Nintendo Switch, PS4 Pro, Xbox 360, Xbox One X,PS3, Beamer, DVB Receivers, Blu-ray Player, Apple TV 4, Laptop and HDTV/HD Monitor etc.
