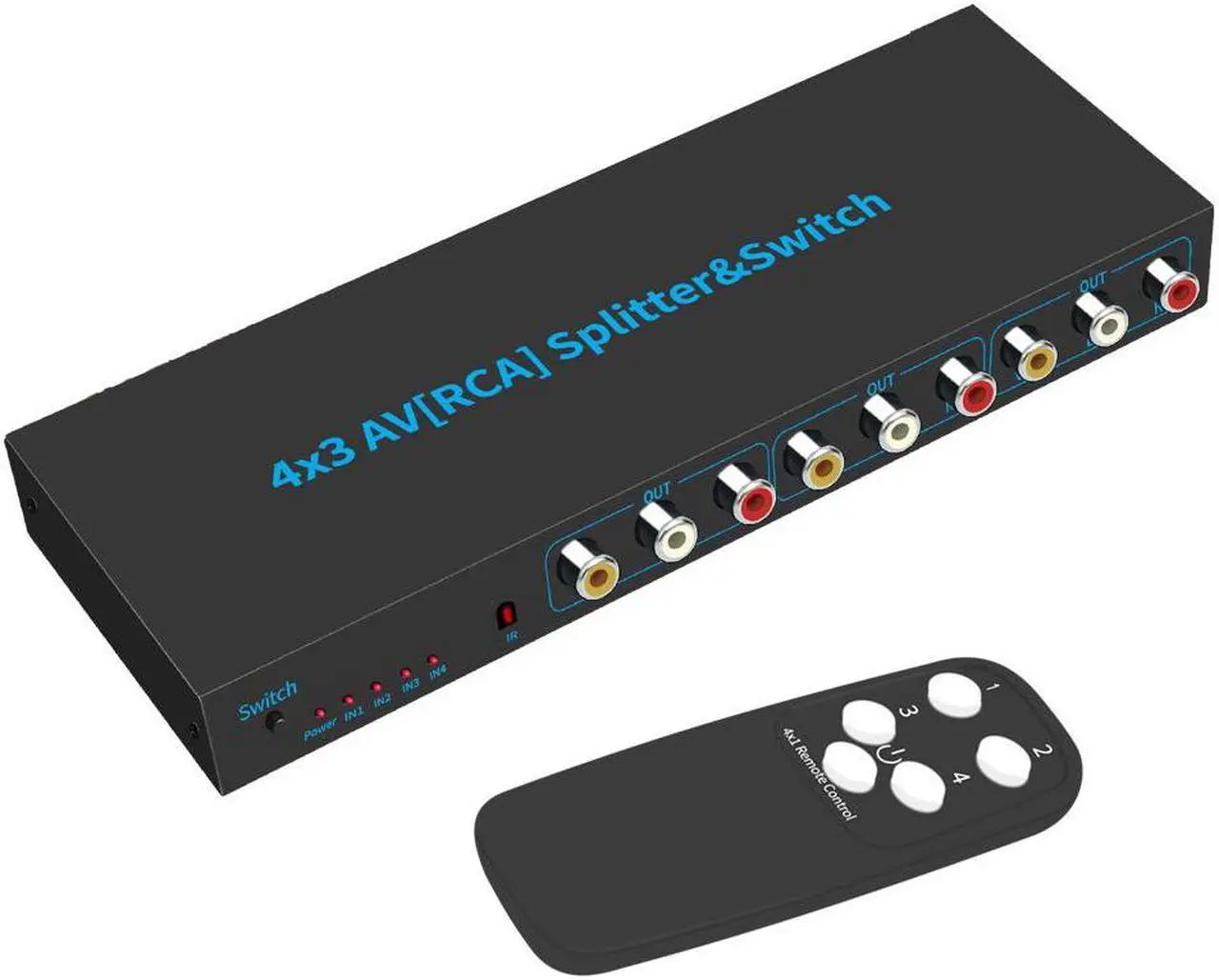

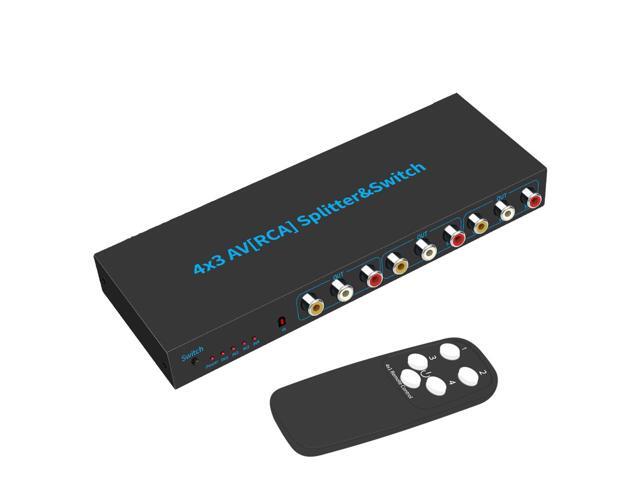

RCA AV Switch Splitter Box 4 in 3 out AV Audio Video Signal Composite for HDTV LCD DVD 3 RCA Switcher 4 to 1 Selector
Video:
Input Video Signal: 0.8-1.0 volts p-p
Input Impedance: 75Ohm
Output Video Signal: 0.8-1.0 volts p-p
Output Impedance: 75Ohm
Bandwidth: 50Hz-5.5MHz
Audio:
Input Audio Signal: 2V(RMS)
Input Impedance: 47kOhm
Output Video Signal: 2V(RMS)
Output Impedance: 1KOhm
Frequency: 10Hz-20KHz, 0db
FEATURE:

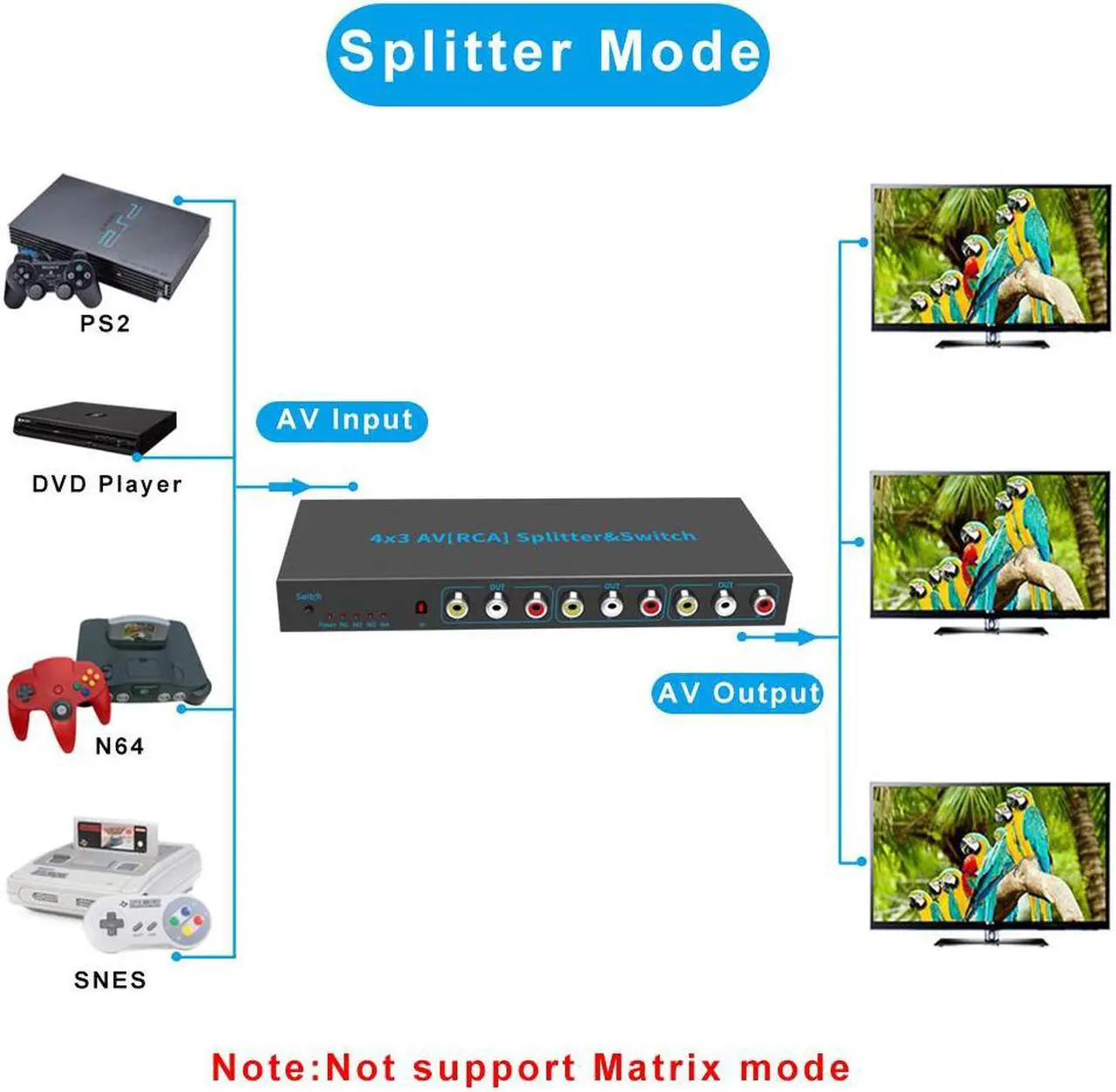

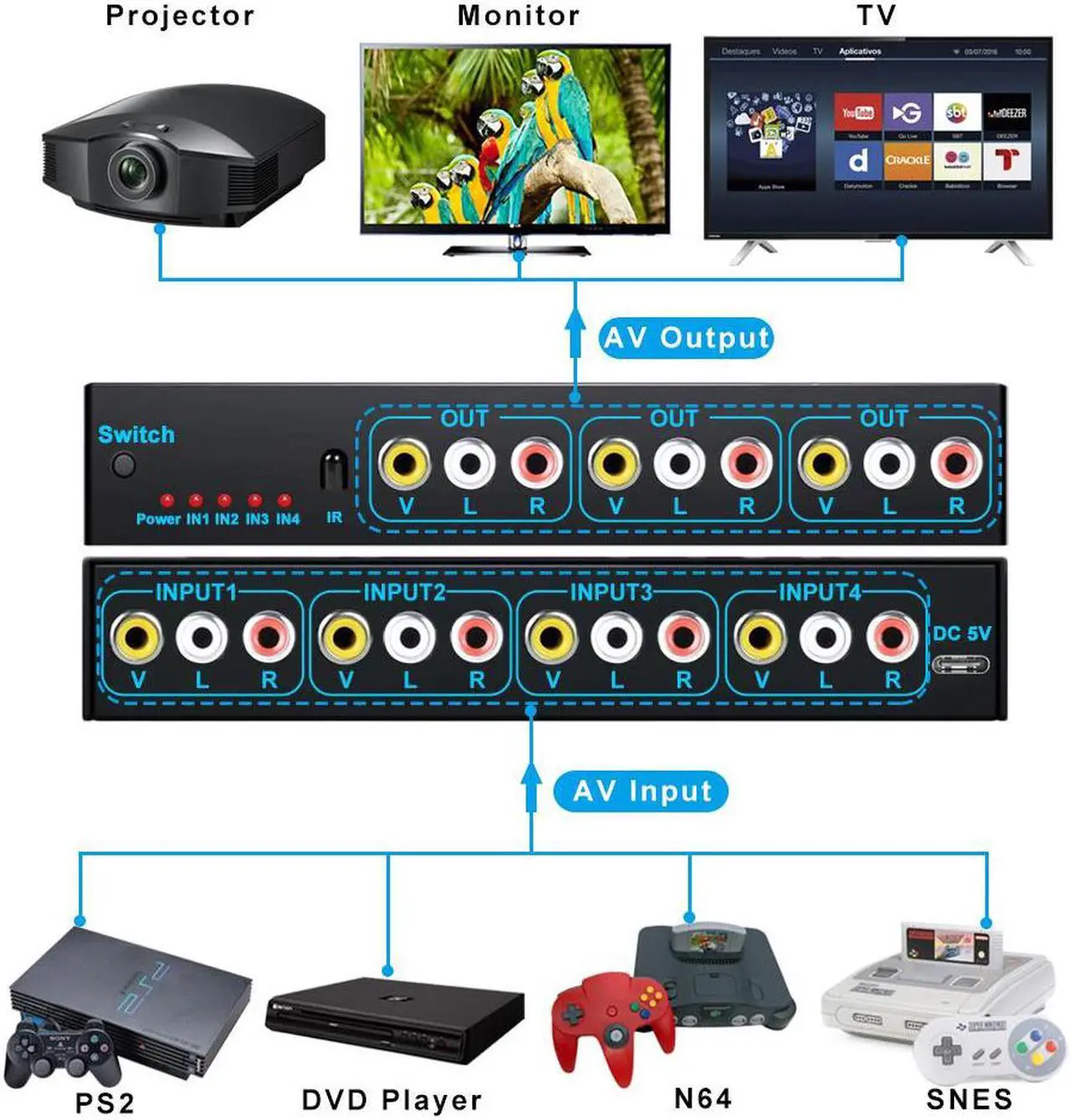

- Composite AV Switch 4 in 3 out - This 4 In 3 Out Composite Selector's 3 standards "Video, L-Audio-R", 4 in 3 out, If you own 3 TV Set but more than 1 audio and video device, this 4 Way (4 In 3 Out) Composite AV Switch is suitable for you,Not support Matrix mode.
- Easy to Use/True Plug&Play - Pure hardware design, be plugged and unplugged easily. No software drivers are needed, just press the selection button on the component av switcher box to choose the av sources.
- IR remote control,you could switch any input(N64,TV Box,PS2 etc) to three AV output.

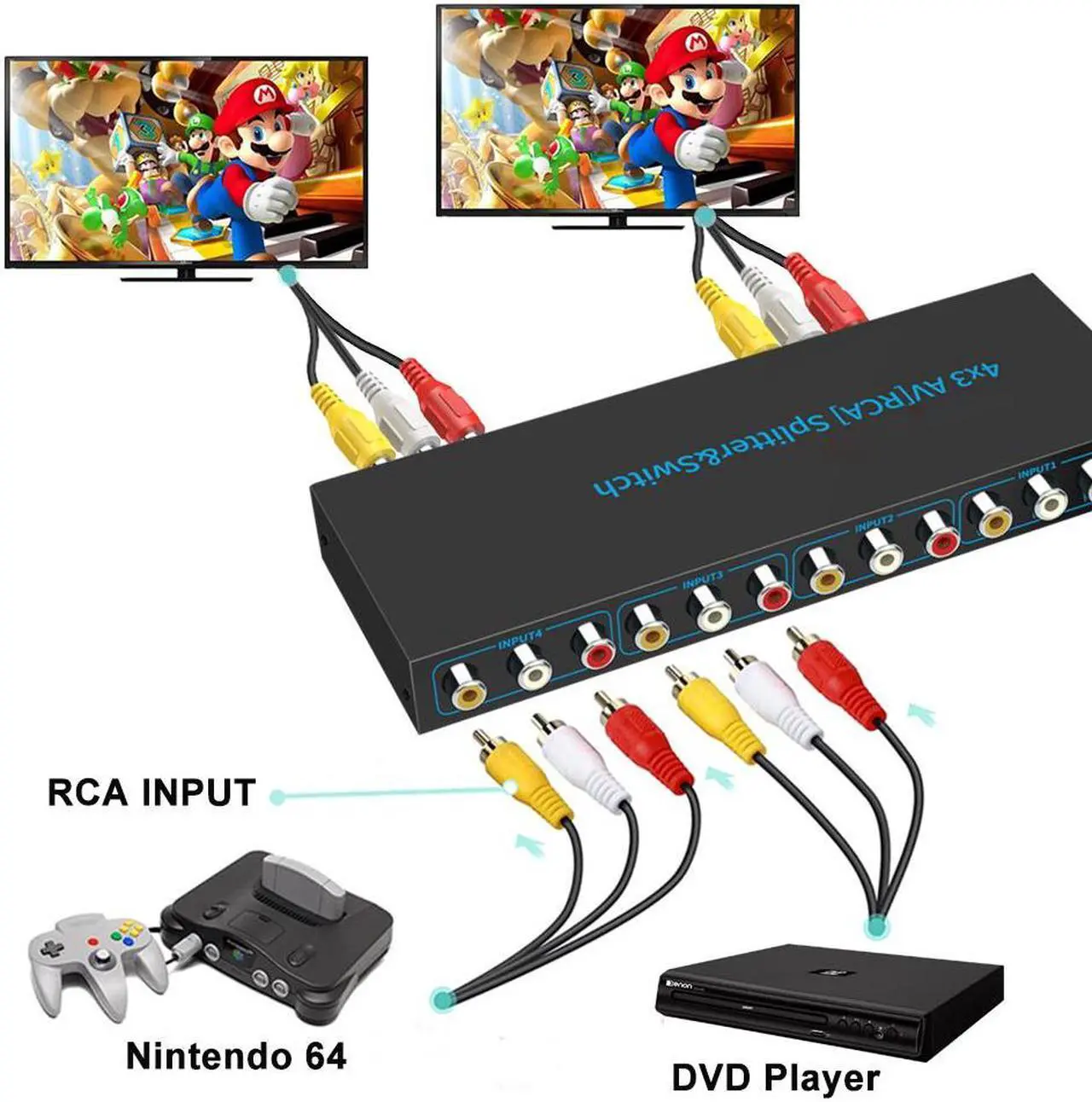

- Ideal for connecting LD, VCD, DVD player, video,Ps3,camera recorder, video game, VCR, etc. Just connect eight devices and switch the video sources easily.
- Superior Construction: Metal housing and color-coded molds allow for excellent stability and longevity.
- Package contents: AV Switcher*1; User Manual*1; 5V/1A Power Adapter*1; Remote Control (without battery)*1
