- It allows switching 2 HDMI inputs into 1 display, avoid plugging and unplugging the HDMI cable frequently.
- Also, it can extract digital audio embedded in HDMI and output it via Optical SPDIF and Coaxial(up to 5.1 Dobly Digital), RCA L/R and 3.5mm jack audio output 2CH stereo analog.

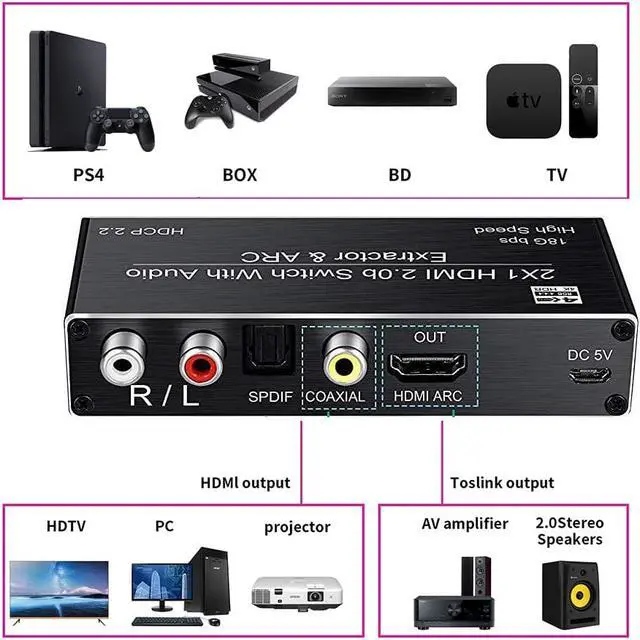

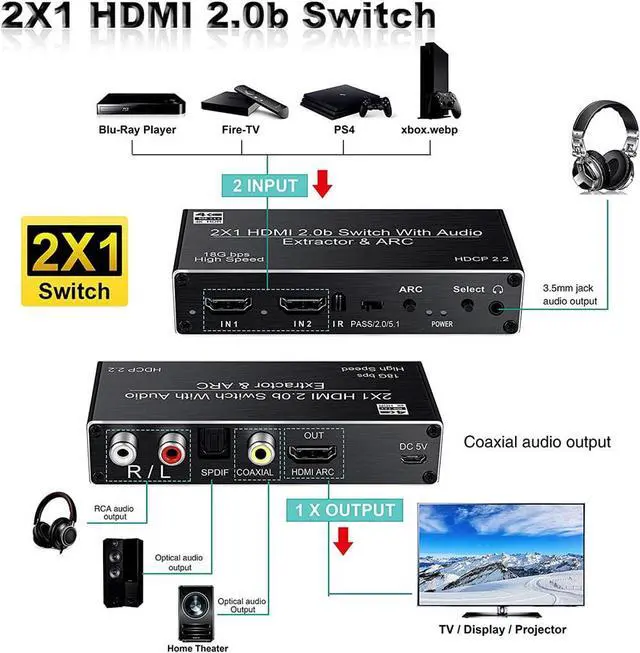

4K@60HZ 2X1 HDMI SWITCH with AUDIO EXTRACTOR: 4K HDMI Switch allows you connect Two HDMI 2.0 Sources to one display device, Each input source support audio extract by the Toslink+L/R+Coaxial audio output channel. No loss of quality after you split the signal. No degradation in audio quality. (HDMI output support CEC)
ULTRA HD 4K VISUAL ENJOYMENT: Supports HDCP 2.2, HDMI2.0b,4K@60HZ, RGB4:4:4, Full HD, UHD, HDTV, Deep Color to 36bit,also back compatible with 4K@30HZ and 1080P. Max Bandwidth of 18.2Gbps.(Kindly Note: It is not compatible with DVI)
HDMI ADUIO EXTRACTOR: With Optical Tolink SPDIF+L/R+3.5mm Jack+Coaxial audio out allows you extract the audio from the HDMI input source ( Like PS4, Cable box, Xbox or any HDMI device)connection to a spearker, Amplifier etc. Note: If you choose optical or coaxial audio out, you can enjoy 5.1CH or 2CH or audio copy. If you choose 3.5mm or L/R audio out, you can enjoy 2CH or audio copy.
HDMI ARC ADAPTER: Supports ARC (Audio Return Channel), Extractor the Audio from TV to Soundbar or Amplifier. Connect your TV HDMI(ARC) Port to this switch HDMI Output Port with HDMI Cable, then using optical or Coaxial cable to the soundbar, Speaker, home theater, A/V receivers etc.No distortion of audio or video(Note:3.5mm jack and L/R audio port not support ARC audio)

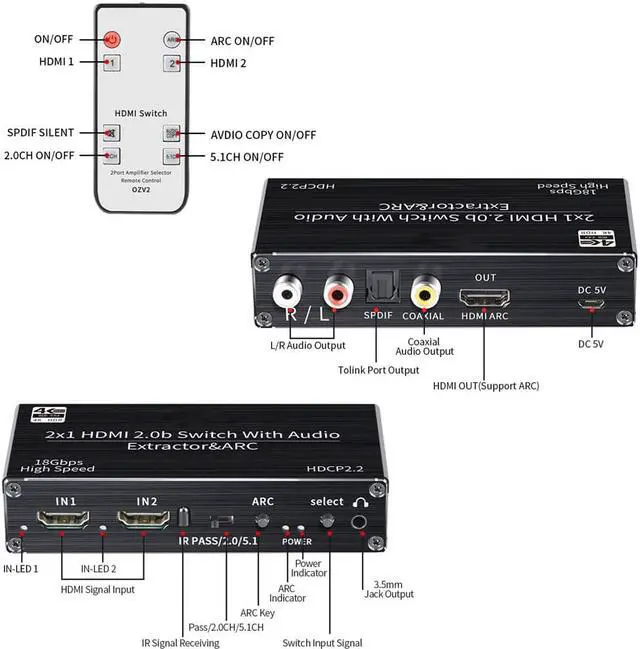

- HDMI Switch 2X1 with audio extractor x 1
- 5V/1A DC Power adapter x 1
- IR Remote x 1
- User manual x 1
- HDMI Audio copy: The output audio format depends on the HDMI input signal. The audio can be copied to the HDMI output device.
- 2.1CH Mode: Set 2CH to get analog stereo. Extract the digital 2CH PCM stereo audio signal from the HDMI input and convert it to 2CH analog stereo output through its RCA L/R analog/Optical SPDIF/Coaxial output at the same time
- 5.1CH Mode: Set 5.1CH to get 5.1 digital surround.(HDMI input source must support 5.1CH), Which can be extracted via Optical SPDIF and Coaxial output. It support LPCM 7.1CH,Dobly TrueHD,and DTS-HD Master Audio.

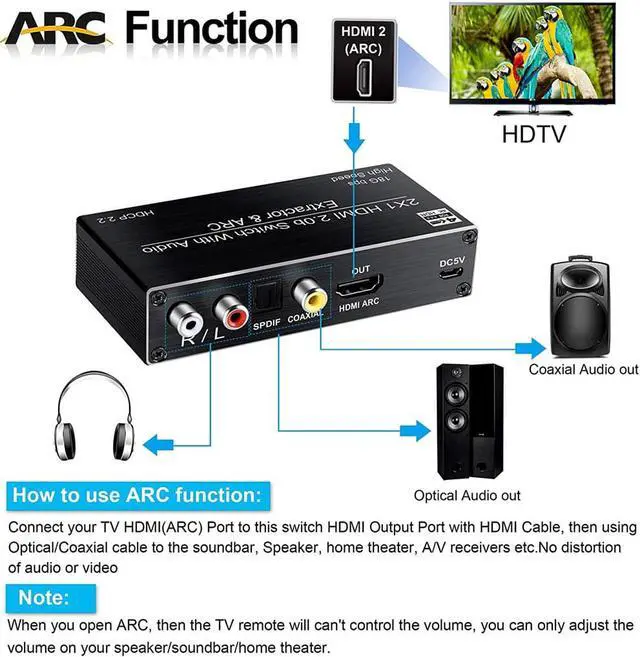

Connect your TV HDMI(ARC) Port to this switch HDMI Output Port with HDMI Cable, then using optical or Coaxial cable to the soundbar, Speaker, home theater, A/V receivers etc.No distortion of audio or video.
1. When you open ARC, then the TV remote will can't control the volume, you can only adjust the volume on your speaker/soundbar/home theater.
2. All audio port support ARC.
Smart Auto-Switch with Remote Control: It will automatically skip to the most recently inserted HDMI signal source,it will automatic change from HDMI source A to HDMI source B when you turned on source B and back to source A when you turned source B off.
