5-Ports Superspeed 5Gbps USB 3.0 PCIE USB Card
About this item

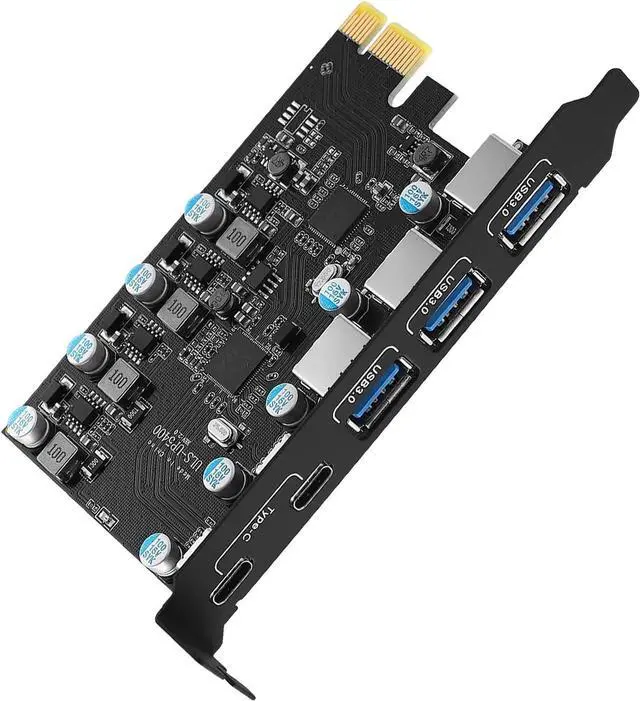

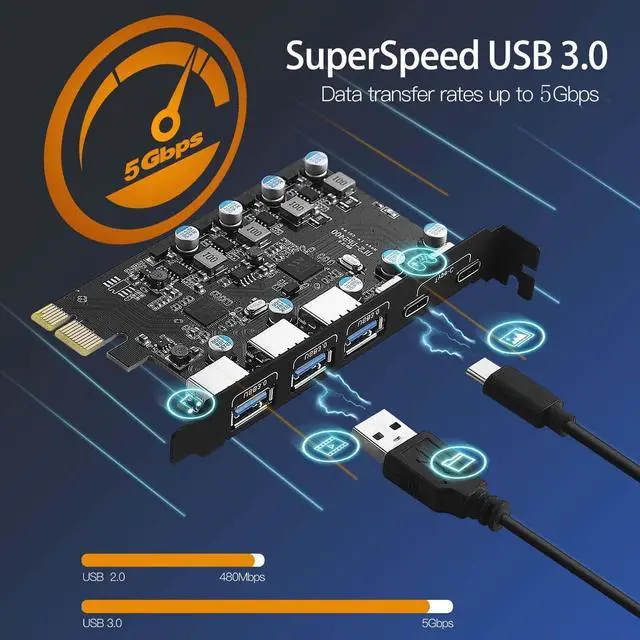

- 1. FS001-Pro is a PCIE X1 interface to 5-Ports (3X USB-A and 2X USB-C) USB 3.0 expansion card. Allow users add 3X 5Gbps max USB-A ports and 2X 5Gbps max USB-C ports on Desktop PCs, will light up 5X high power consumption USB-A or USB-C devices which including USB industrial cameras, USB VR-systems, USB 3.0 NVME enclosures, USB live broadcast devices, USB 3.0 SSD/HDD enclosures, USB 3.0 video adapters and USB 3.0 universal docking stations.
- 2. Based on 1X UPD001 5Gbps USB 3.0 host controller and 1X UPD001 5Gbps USB 3.0 HUB controller, will compatible with AMD, ARM, and Intel hardware platform Desktop PCs. The added-on 3X USB-A and 2X USB-C ports will share 5Gbps total bandwidth. It will compatible with 5X normal USB devices such as USB keyboard, USB mice, USB speakers, USB KVM switch, USB HUB, USB flash drive, printers, gaming pad, smartphone, tablet, and more USB-A and USB-C interface devices.

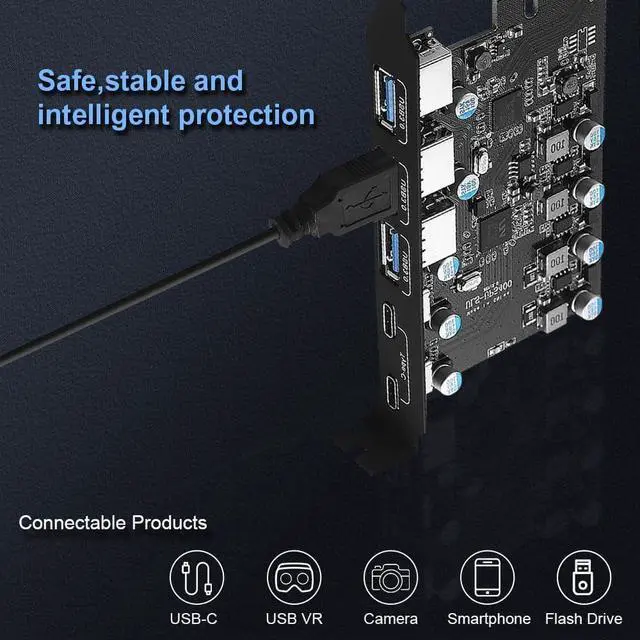

- 3. Built in LUOM Self-Powered Technology, no need to plug any additional power cables from Desktop PCs power supply unit. Allow each USB 3.0 port get 5V/2A 10W max (5V/10A 50W in total) power supply from motherboard directly for connected high power consumption USB 3.0 devices. LUOM add 5X electronic safety fuse and 5X voltage stable capacitor and 4X voltage stable inductance on the PCIE USB expansion card, will protect user's data and USB 3.0 devices, make sure connection safety.

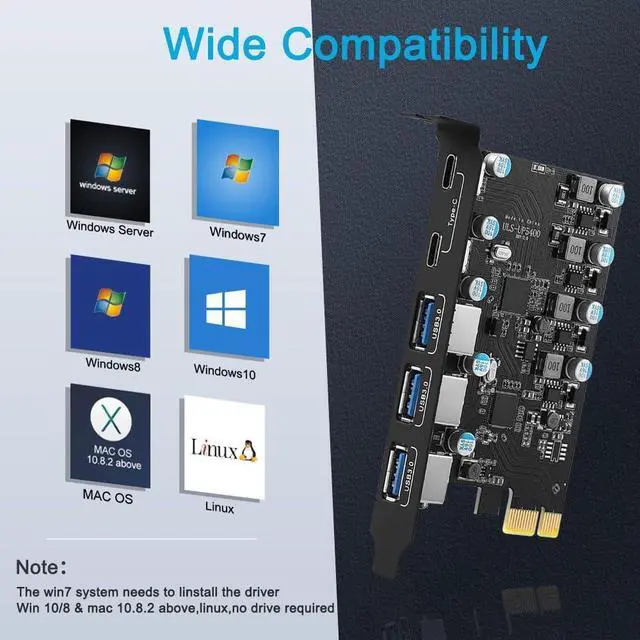

- 4. Compatible System: 1. Plug and Play on Windows 11, 10, 8.x (32/64bit) and Windows Server 2012, 2012R2, 2016, 2019, 2022 systems. 2. Need to Install Driver on Windows XP, Vista, 7 (32/64bit) and Windows Server 2003, 2003R2, 2008, 2008R2 (32/64bit) systems. 3. Plug and Play on most Linux kernels. 4. NOT support MAC OS X.
- 5. PCIE X1 interface design, will works on PCIE X1, X2, X4, X8, X16 slot, do not work on PCI slot. Based on PCIE 2.0 standard, will compatible with PCIE 1.x, 2.x, 3.x, 4.x PCIE slot. The full height bracket mounted on this PCIE USB 3.0 expansion card, will works on Standard Size PCs. Not support low profile bracket, do not work on Slim PCs.
- 6. ATTENTION: 1. Must make sure Desktop PCs have one empty PCIE X1 slot before purchase. 2. Must install driver on Windows 7 (32/64bit) and previous systems. 3. Packing List: 1x USB 3.0 PCIE card, 1x CD driver, 1 x installation screws . 4. Please use USB 3.0 devices test connection speed, or cannot get the peak speed. 5.You get a 1-year-product-Care and friendly customer-service.
