4-Port SATA III 6Gbps Expansion Cards
| Internal Interface | PCI-Express 3.0 X1 |
|---|---|
| External Interface | 4 x SATA III |
| Total Bandwidth | 1GB/s |
| Chip Solution | Marvell 88SE9215 |
| OS Boot | Only port 1 support OS boot, the other 3 ports can not support OS boot |
| OS Compatibility | Windows/Mac OS/Linux/NAS ( Windows 7 needs to install specific driver; Not support Windows XP) |
| SATA Controller Mode | AHCI |
| LED Indicator | Red color is working status, Red flashing is data reading/writing |
| Accessaries | 4 x SATA III Cable (350mm/13.5inch); 1 x Low Profile Bracket |
SATA Card, PCIE 3.0

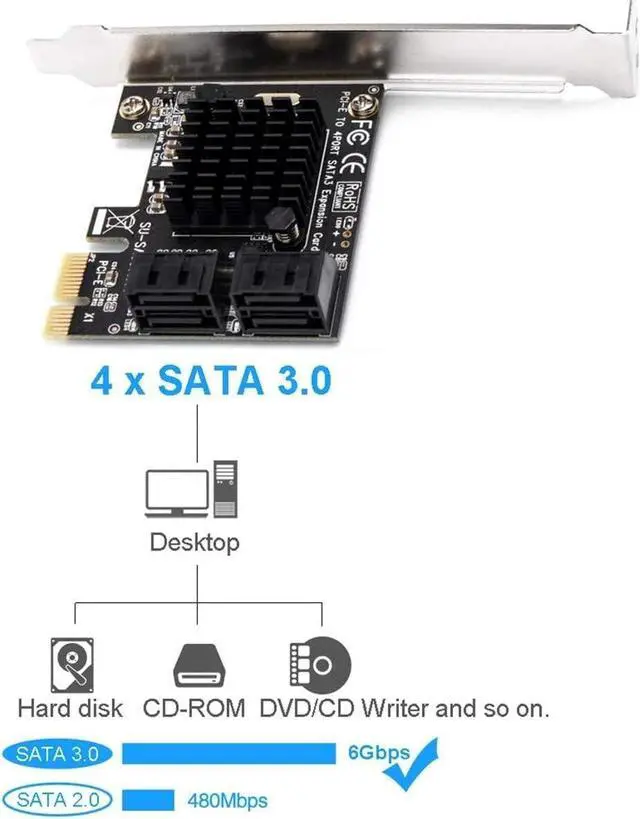

- 4 Port SATA PCIE 3.0 Card: The PCIE SATA card allows you to add 4 SATA 3.0 6Gbps devices to your computer. If your motherboard has RAID function, you could make a RAID with this SATA Card. (WARM TIPS: Can not Support Hardware RAID)
- Powerful Chipest: This SATA controller card adopts Marvell 88SE9215 chip, making this card more stable and compatible. Port Multiplier FIS-based and Command-based switching supported.
- Advance Heatsink: The SATA card uses heat sink technology to disperse heat away from the core components to improve reliability and performance.

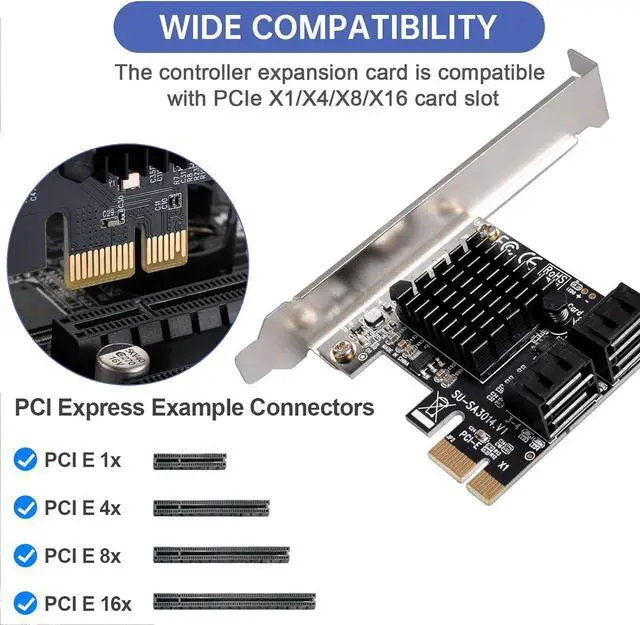

- Compatibility: with a low profile Bracket System Compatible with Windows XP /2003 / 7 / 8 / 10 / MAC / NAS / Linux OS. Support PCIe X1 / X4 / X8 / X16 slot. It also comes with a low profile bracket to fit different sizes of desktop computers.

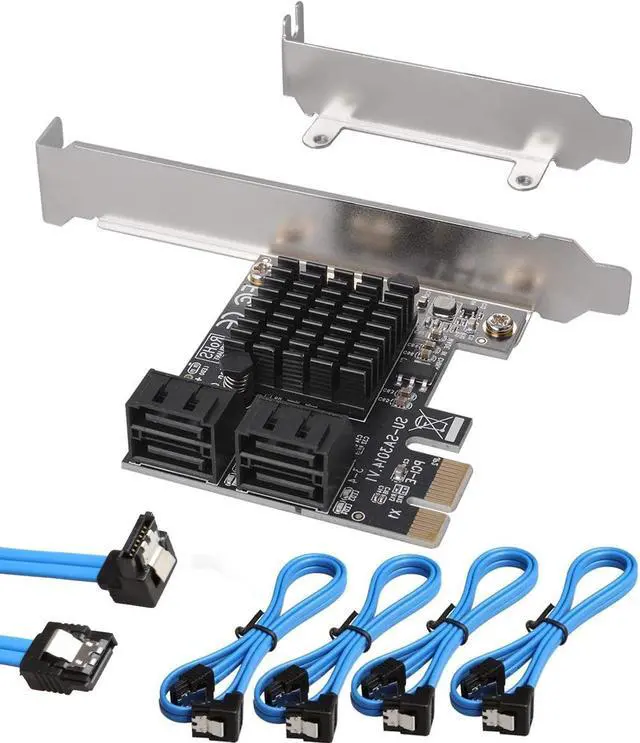

- Includes All Required Accessories: Kit includes: 1 X 4-port SATA expansion card, 4 X SATA cable(40cm/15.8in), 1 X low-profile bracket, 1 X screwdriver, 2 X screw kit, 1 X anti-static bag.
Detail optimization
The optimized heat sink design keeps the SSD/HDD at a stable temperature during operation. Supports PCIE X1/X4/X8/X16 slots.

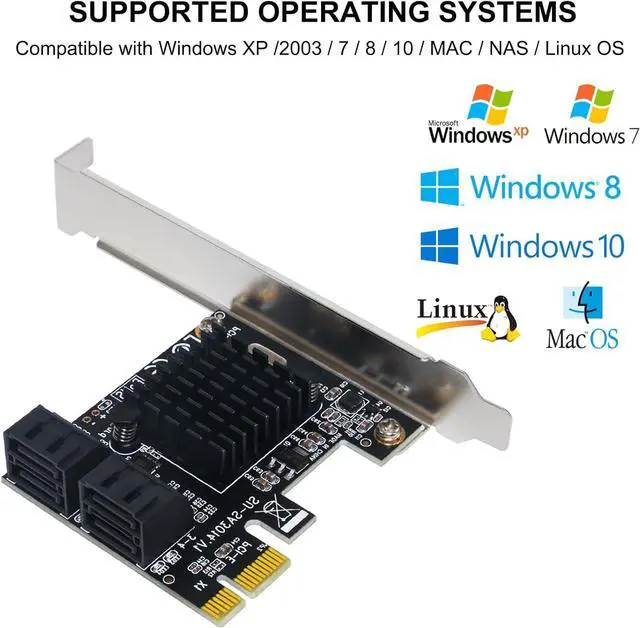

Supports the System
Support Windows XP / 2003/7/8/10 (32/64bit) / MAC/ Linux and other operating systems.
PAKET LIST
PCIE 1X SATA card 4 ports*1, SATA cable*4, low profile bracket*1, Small screwdriver*1
