| Internal Interface | PCI-Express 3.0 x1 |
|---|---|
| External Interface | 4 x USB 3.0 TYPE-A |
| Chip | NEC720201 |
| Power Consumption | 5V2A=10 Watts (max) per port |
| Total Bandwidth | 8Gbps for PCIe 3.0 X1; 4Gbps for PCIe 2.0 X1 |
| OS Compatibility | Windows/Linux/No support Mac OS ( Note: Need to install driver on Windows XP, Vista, 7 ) |

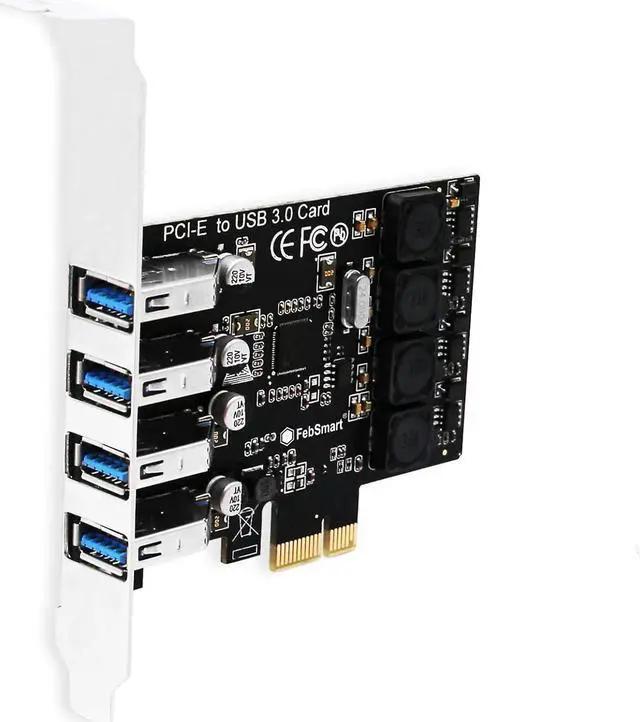

PCI-Express USB 3.0 Expansion Card with 4 x USB-A Ports

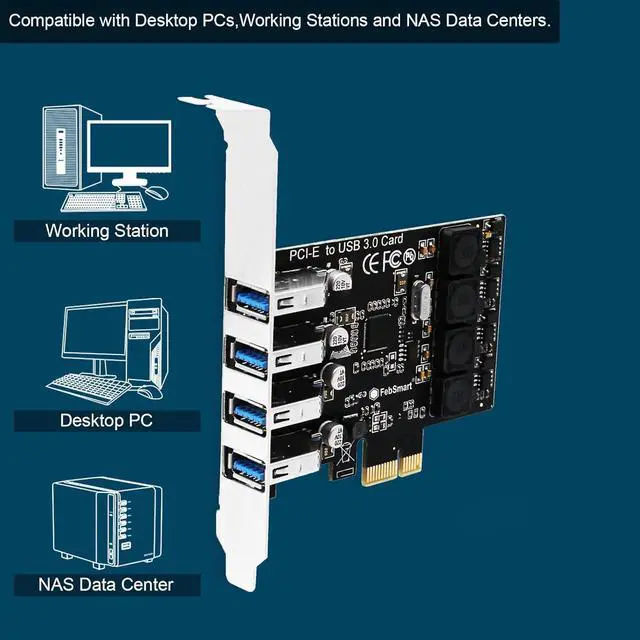

- PCI-Express USB 3.0 Expansion Card is a PCIE X1 interface to 4-Ports USB 3.0 expansion card. Allow users add 4X 5Gbps max USB-A ports on Desktop PCs, Working Stations, and NAS Data Centers. It will light up 4X high power consumption USB 3.0 devices which including USB industrial cameras, USB VR-systems, USB 3.0 NVME enclosures, USB live broadcast devices, USB 3.0 SSD/HDD enclosures, USB 3.0 video adapters and USB 3.0 universal docking stations.

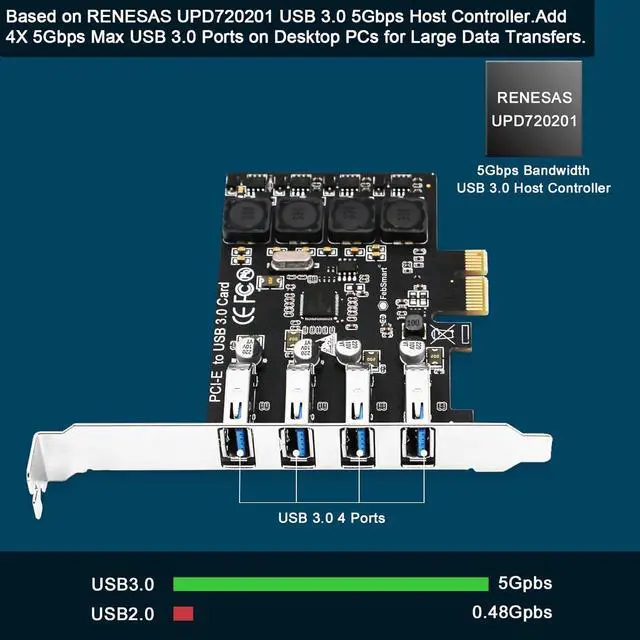

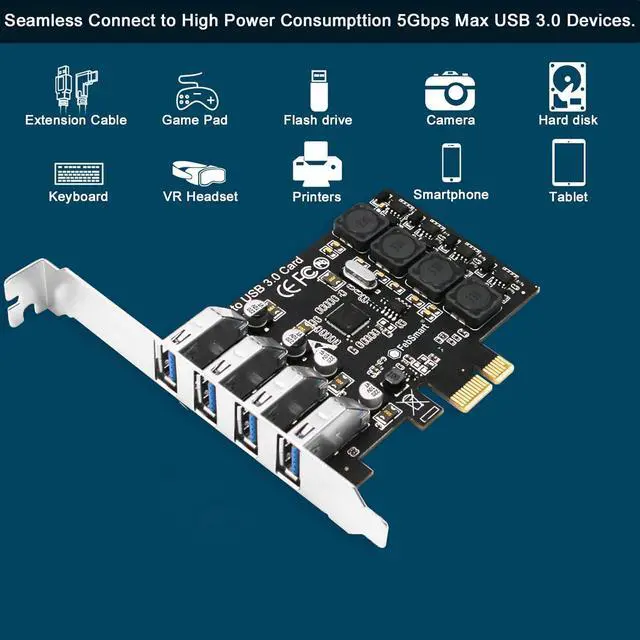

PCI-E to USB 3.0 HUB PCI Express Expansion Card: Based on 1X RENESAS UPD720201 5Gbps USB 3.0 host controller will compatible with AMD, ARM, and Intel hardware platform Desktop PCs. The 4X added-on USB-A ports will share 5Gbps total bandwidth. It will also compatible with 4X normal USB devices such as USB keyboard, USB mice, USB speakers, USB KVM switch, USB HUB, USB flash drive, printers, gaming pad, smartphone, tablet, and more USB-A interface devices.
Power Consumption

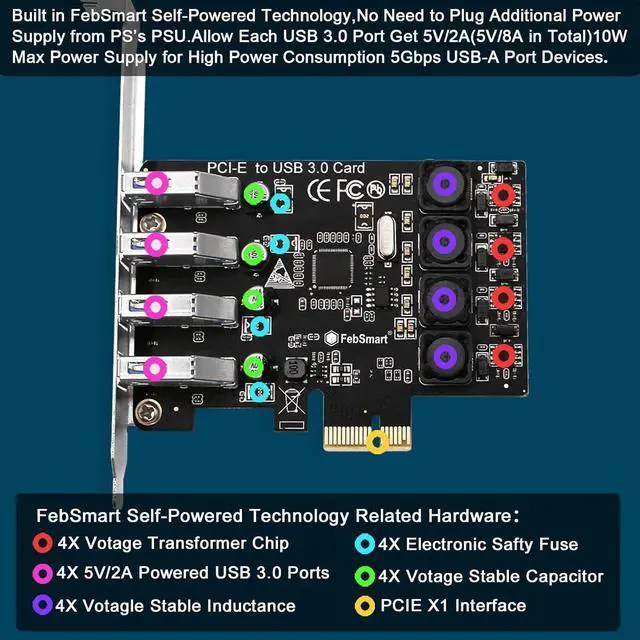

- Each port of the hub can provide a 5V2A load capacity, which means that your computer can access 4 high power consumption USB 3.0 devices simultaneously.
- This is suitable for devices like industrial cameras, VR-Systems, and USB 3.0 NVME enclosures.
- However, it's important to note that it does not support fast charging. The maximum charging capability per port is 5V/0.5A.
PCI-Express 3.0 X1 Bandwidth and PCI-Express X1 Slot installation
- For PCIe 3.0 X1 slot, 4 x USB-A ports share 8Gbps bandwidth;
- For PCIe 2.0 X1 slot, 4 x USB-A ports share 4Gbps bandwidth.

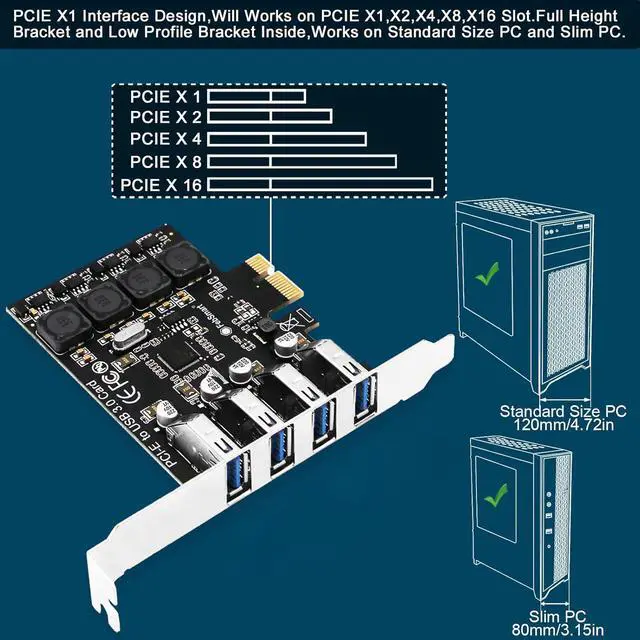

PCIE X1 interface design, will works on PCIE X1, X2, X4, X8, X16 slot, do not work on PCI slot. Based on PCIE 2.0 standard, will compatible with PCIE 1.x, 2.x, 3.x, 4.x PCIE slot. The full height bracket mounted on this PCIE USB 3.0 expansion card, will works on Standard Size PCs. Not support low profile bracket, do not work on Slim PCs.

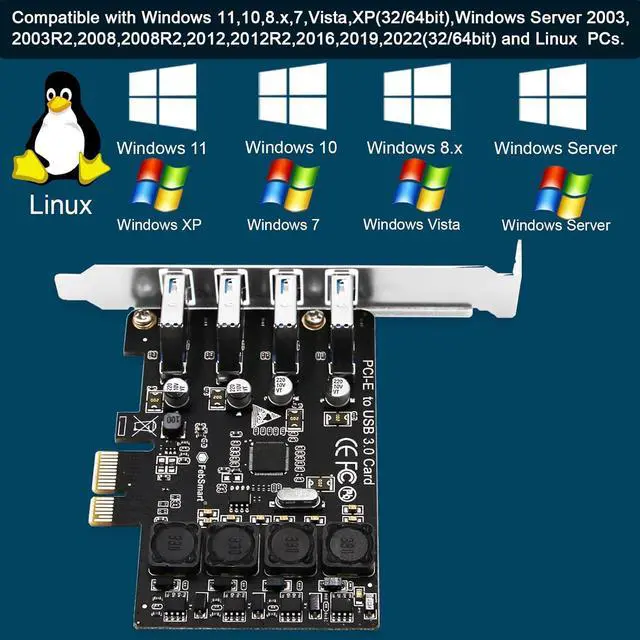

Compatible System: 1. Plug and Play on Windows 11, 10, 8.x (32/64bit) and Windows Server 2012, 2012R2, 2016, 2019, 2022 systems. 2. Need to Install Driver on Windows XP, Vista, 7 (32/64bit) and Windows Server 2003, 2003R2, 2008, 2008R2 (32/64bit) systems. 3. Plug and Play on most Linux kernels. 4. NOT support MAC OS X.
