Introduction:
Convert pure digital SDI signals to HDMI/SDI signal. Auto format detection for 3G-SDI, HD-SDI and SD-SDI. ,Extend Your Signal over long Distances.NOTE: This is not a bi-directional converter. DO NOT use for HDMI to SDI conversion
Feature:

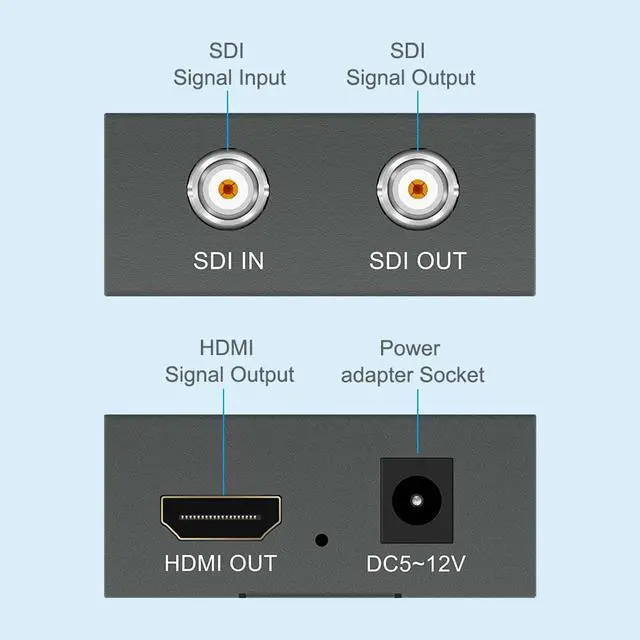

HDMI Output and SDI Loopout: Support 1x HDMI output and 1x SDI Loop Output, The transferring data rate is up to 2.97Gbps. Support 8 channels of 48KHz sampling rate of digital audio
HDMI input compatible devices: TV, Monitor, Projector
Only Support FHD up to 1080p,not support UHD 4K.

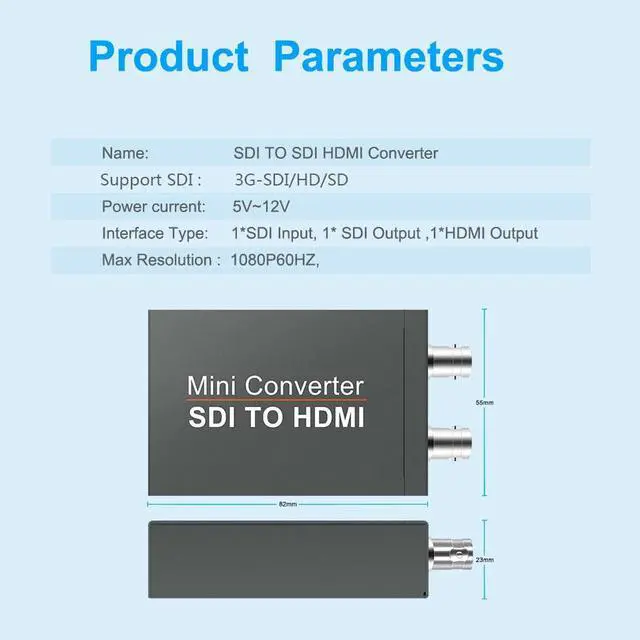

Power supply: DC 5V-12V /1A.
Power consumption (Max): 5W.
SDI date rate: 270Mb/s, 1.485Gb/s, 2.97Gb/s
SDI input resolution: 480i/567i ; 720p/50/60 ; 1080i/50/60 ; 1080p/24/25/30 SDI
output format: SD-SDI HD-SDI 3G-SDI
Recommended resolutions: 720P@50Hz/60Hz or 1080P@50Hz/60Hz HDMI.
HDMI 1.3 output resolution: 720P@50HZ, 720P@60HZ, 1080i@50HZ, 1080i@60HZ, 1080P@24HZ, 1080P@25HZ, 1080P@30HZ, 1080P@50HZ, 1080P@60HZ.
Operating Temperature: 0'C to +50'C
Operating Humidity: 10% to 85 % RH (no condensation)
Storage Temperature: -10'C to +80'C
Storage Humidity: 5% to 90 % RH (no condensation)
Package contents:

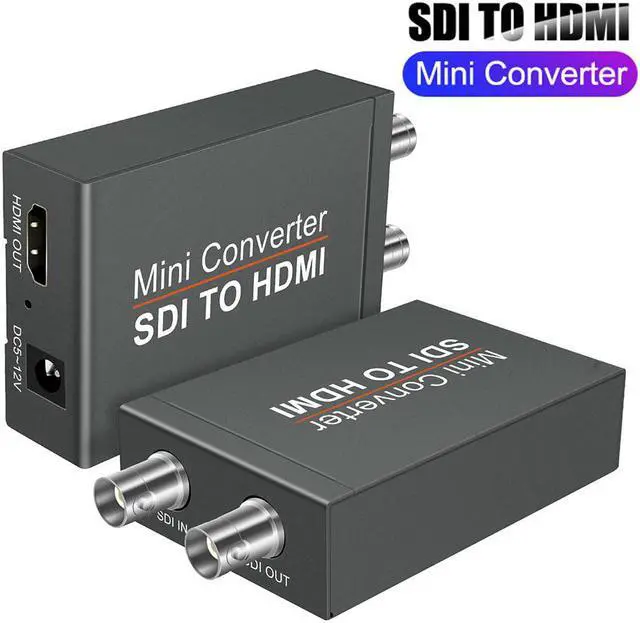

1 x SDI to SDI HDMI Converter
1 x DC CABLE or power adapter
1 x User manual

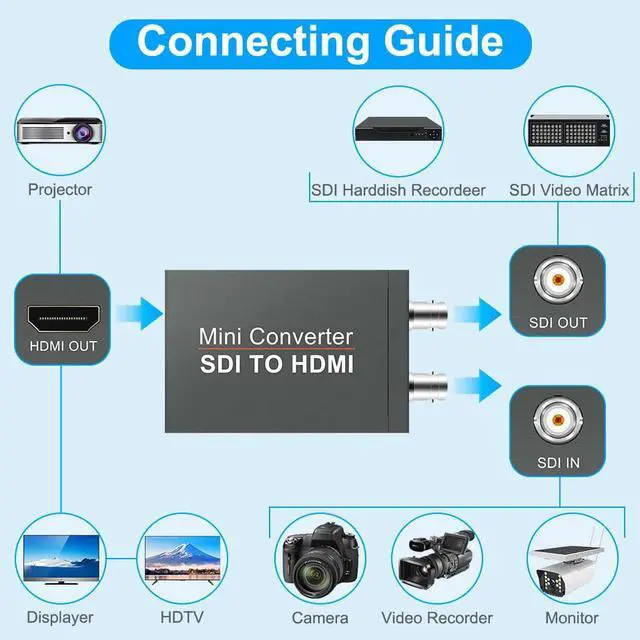

- SD/HD/3G-SDI Input: SDI to HDMI Micro Converter,Work well for nearly all 3G/HD SDI devices,such as RED Scarlet, BMD Atem, Security Camera, capture card, Campus TV network, DVR etc(Note: When using ATEM with this device, please forcibly set the resolution of ATEM to 720P@60Hz)

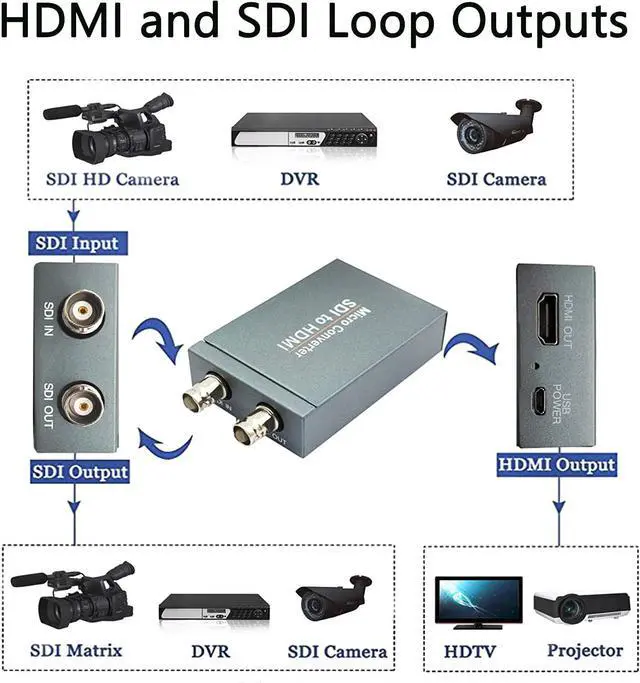

- HDMI and SDI Loop Outputs: Support 1 HDMI output and 1 SDI Loop Output, The transferring data rate is up to 2.97Gbps.
- Supports SD and HD Signals: Convert SDI to HDMI and SDI both or seperately, support 1920x1080P@60Hz,1920x1080I@60Hz,1280x720P@60Hz
- Automatic Input Signal Detection:Support Auto detection of SD or HD,Supports 10-bit Deep Color,Work as SDI Repeater & Extender with the Re-clock function and support multiple cascaded(Note: It is best not to connect in series with other converters of the same type. )

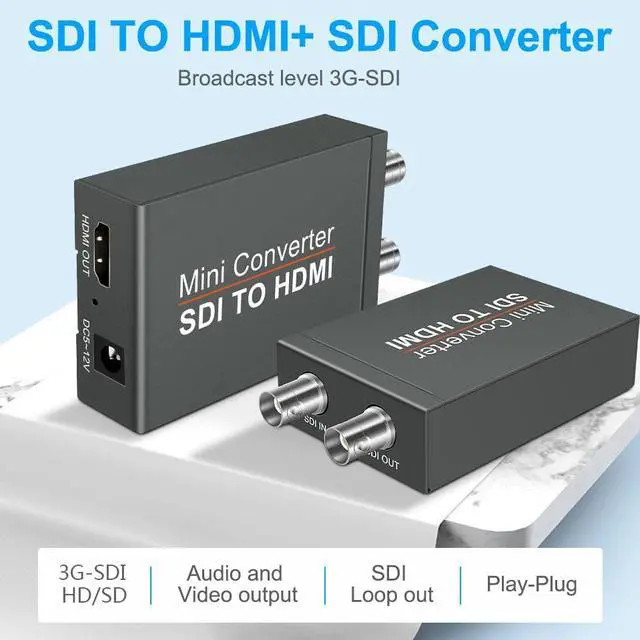

- Broadcast Grade Quality: Durable Metal body, anti-corrosion and rust-proof, no static noise issue. Excellent heat radiation keeps favorable working temperature.
