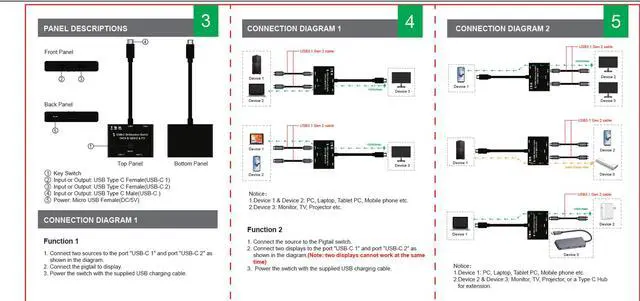

In this connection Method,please follow the following instruction to operate:
1:Connect two USB 3.1 Gen 2 Cable from our USB-C Switch 's USB-C 1 and USB-C 2 Port to your USB-C Source Devices
2:Connect the Fixed USB-C Cable in the USB-C Position to your Monitor's USB-C Port(Please make sure USB-C Port in the Monitor support video transfer and the video function had been opened)
3:Connect the supplied Micro USB to USB Cable to power with the switch(This is necessary Step,or the display can not show anything)

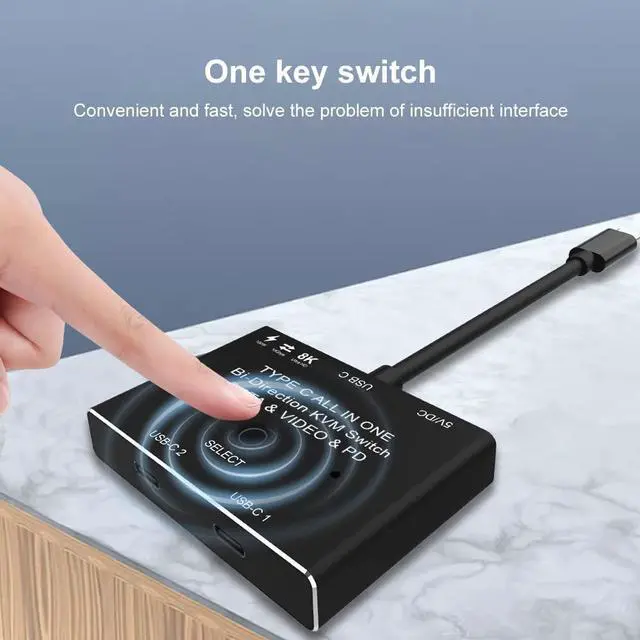

4:Press"Select"Button to switch between two source devices.

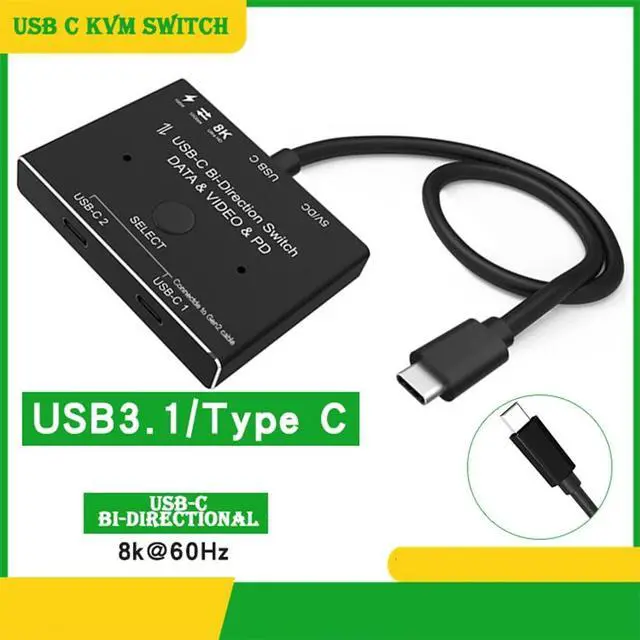

USB-C Switch/Spliiter with 8K Video Transfer,100W Power Delivery and 10Gbps Data

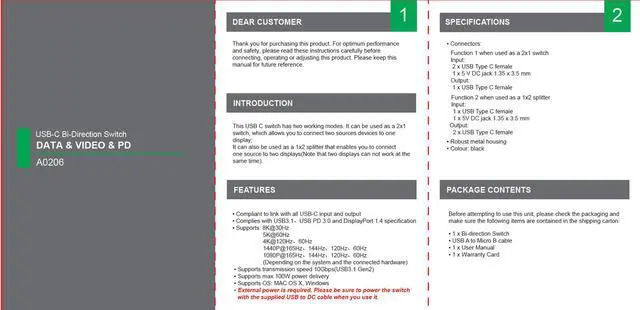

FEATURES
Compliant to link with all USB-C input and output
Complies with USB3.1, USB PD 3.0 and DisplayPort 1.4 specification
Supports: 8K@30Hz
5K@60Hz
4K@120Hz, 60Hz
1440P@165Hz,144Hz,120Hz,60Hz
1080P@165Hz,144Hz,120Hz,60Hz
(Depending on the system and the connected hardware)
Supports transmission speed 10Gbps(USB3.1 Gen2)
Supports max 100W power delivery
Supports OS: MAC OS X, Windows
External power is required. Please be sure to power the switch with the supplied USB to DC cable when you use it.
SPECIFICATIONS
Connectors:

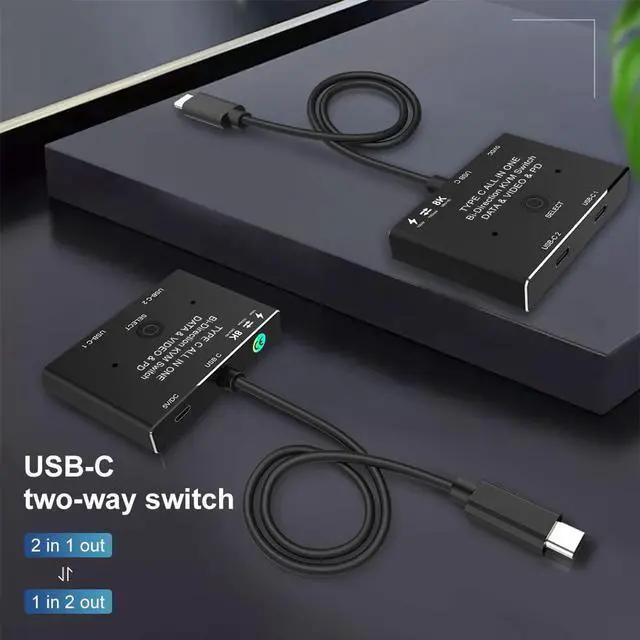

Function 1 when used as a 2x1 switch Input:
2 x USB Type C female
1 x 5 V DC jack 1.35 x 3.5 mm Output:
1 x USB Type C female
Function 2 when used as a 1x2 splitter Input:
1 x USB Type C female
1 x 5V DC jack 1.35 x 3.5 mm Output:
2 x USB Type C female
PACKAGE CONTENTS
1 x Bi-direction Switch
1 x USB A to Micro B cable
1 x User Manual
Important notes While using :
(1):Don't connect USB-C/Thunderbolt Docking Station/Hub, otherwise it will flicker or the screen will turn black. Two displays CANNOT display simultaneously. You need to use a standard USB-C USB3.1 version Gen-2 Cable to connect this switch and use the usb cable to power the switch.
(2):Please make sure your source devices,like laptop or PC had selected duplicate or extend your screen,not only dispaly screen-1.
(3):Please do not use "usb-c hdmi" or'usb-c dp"cable to connect from our USB-C 1 and USB-C 2 Port to your source Devices.
(4):Please do not use USB-C Gen 2 cable longer than 1.5 meters to connect the USB-C switch to your source devices.
Multi-functional 3-in-1 USB-C switch makes life more enjoyable and convenient
You can outout max 8K@60Hz Video and Picture in your Displays via our USB-C Switch, this requires 8K Source Device, 8K USB-C Gen-2 Cable(Video Transfer) and 8K USB-C Displays.
Your devices such as type-c Phones, Laptops, can be charged while working, compatible for fast charging max 100w(Your corresponding cable and equipment should support fast charging)
You can transfer your data to your computer, mobile phone, hard disk, U disk and other related devices through our switch. Your cable must support data transmission, and the maximum transmission rate is 10Gbps.
