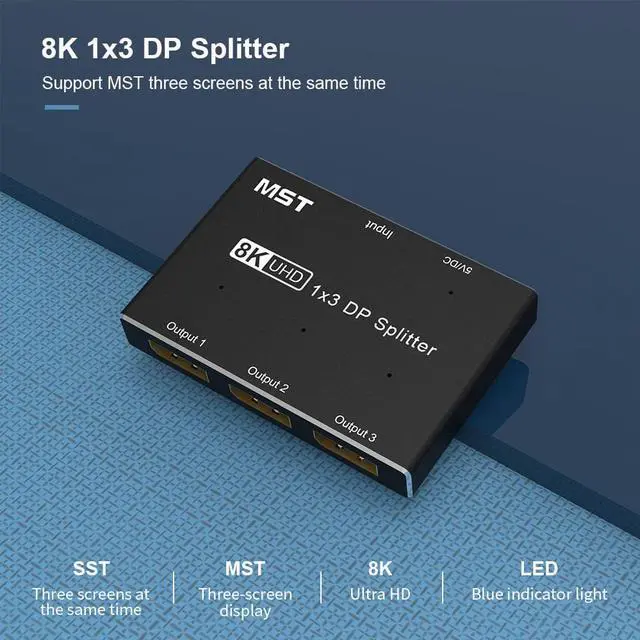

LUOM DisplayPort Splitter 1 in 3 Out 8K 30Hz 4K 144Hz DP 1.4 Triple Splitter MST SST Hub Adapter Converter for 3 monitors Splitter
- This 3-port DisplayPort MST hub lets you create a high-performance workstation by connecting three DisplayPort monitors to your DisplayPort device, helping to increase and maximize your productivity.

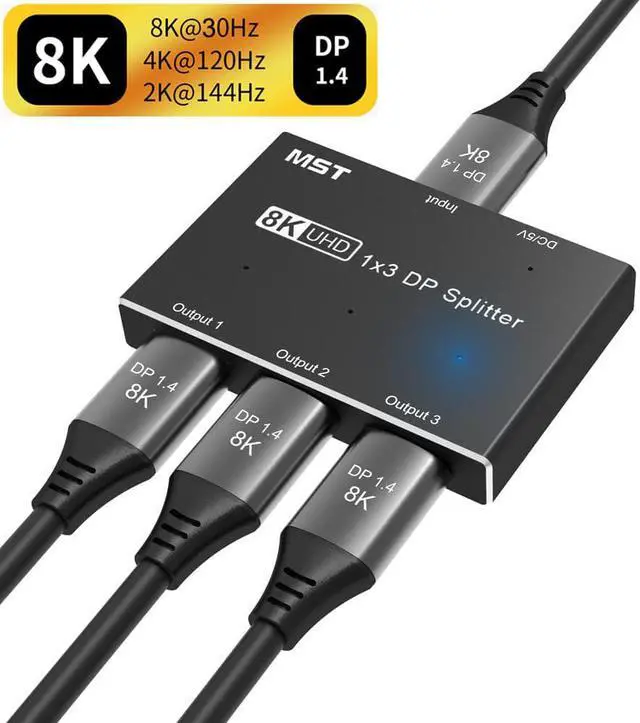

- The multi-monitor splitter is of DisplayPort 1.4 Version and supports resolutions up to 8K@30Hz and 4K@144Hz (depending on features of the video source and display).
- Features and specs.:

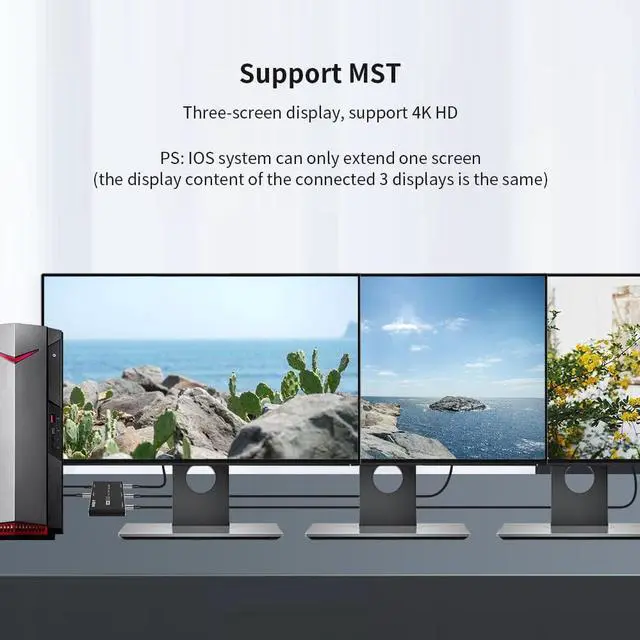

- Drives up to 3 monitors from a single MST-enabled DisplayPort source.
- Supports single display up to 8K@30Hz,4K@60Hz for dual display (HDR must turn off), or 3 ultrawide displays up to 2560x1600(HDR must turn off).
- DisplayPort 1.4 and Multi-Stream Transfer (MST) compliant.
- Support SST (mirror) and MST (Extended) mode.
- Needs a 5V external power supply.
+
+
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Learn more about the LUOM TJ-A036
| Brand | LUOM |
|---|---|
| Series | TJ-A036 |
| Model | TJ-A036 |
| Part Number | TJ-A036 |
| Type | DisplayPort Switchers |
|---|---|
| Changer Type | DisplayPort Switch/Extender |
| Color | Black |
| Ports | 2 |
| Specifications | 8K: Single port 7680x4320 @ 30Hz display 4K: Single port 3840x2160 @ 144Hz Support resolution: 8K@30Hz 4K@144Hz, 120Hz, 60Hz 1440P@165Hz, 144Hz, 120Hz, 60Hz 1080P@240Hz, 165Hz, 144Hz, 120Hz, 60Hz (Depends on your graphics card, monitor, operating system and DP cable support) |
| Input Connector | 1 x DisplayPort 1.4 |
|---|---|
| Output Connector | 3 x DisplayPort 1.4 |
| Maximum Resolutions | 8K@30Hz 4K@120Hz |
|---|---|
| Bandwidth | High Speed 32.4Gbps |

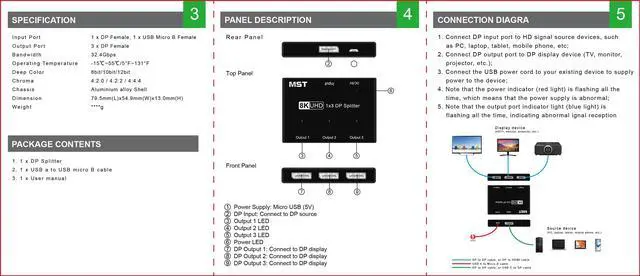

| Features | Display Port Splitter splits 1 dp signal into 3 signals, Supports output of 3 same screens in SST mirror mode or 3 different screens in MST mode.(To enjoy 1in 3out fucnction, pls make sure input/output source support MST function, which needs to check the garphic card, cable monitor. MST mode is limited by iOS System) Displayport Hub Support 1 to 1 ouput at 8k@30hz,4k@144hz; Support 1 to 3 ouput at 4k@60hz, Pls CHECK the 5th picture for reference (SST/MST mode shares the bandwidth and actual resolution relies on your graphics card, monitor, operating system and DP cable. If the total bandwidth exceeds their maxium support, then will be frame drops or even black screens) Plase Make Sure Powe cable plugged before using. MST must supported by your device, otherwise you can not get 1in 3out splitter funtion. ALYYDBG testing found HDR is only available for 1in 1out Check The Maximum Number of displays supported by your GPU, some have quantity limitations and laptop screen may be disabled when connected to three monitors even it should support 3 screens Not Work With Dock Station and recomded for dp to dp connection. QUALIFIED VESA certified displayport 1.4 and above cable is advised. Poor cable always causes sync/noise/black screen issues |
|---|
| Dimensions | 12 x 6 x 0.08 inches |
|---|---|
| Weight | 1.2 ounces |
| Package Quantity | 1 |
|---|---|

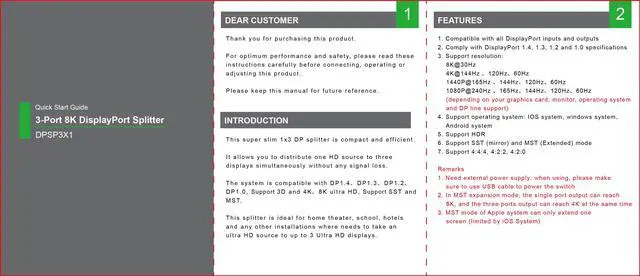

| Package Contents | 1 x DP splitter host 1 x U SB A t o U SB Micr o B power supply line 1 x User Manual |
