Brand new and high quality,real 8k,buy with confidence !
Thank you for purchasing this product.

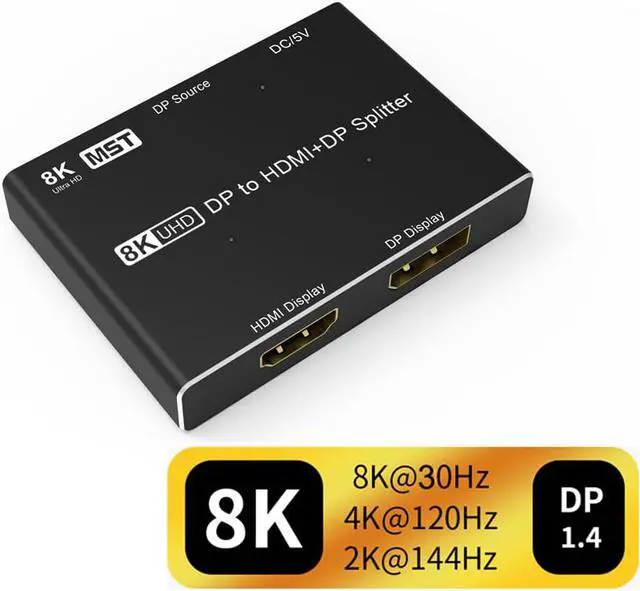

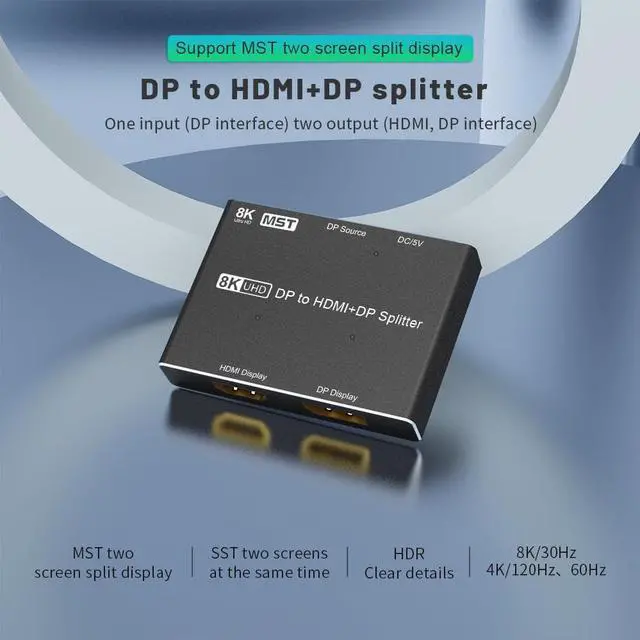

This super slim DP to DP+HDMI splitter is compact and efficient
It allows you to assign a HD source to one monitor and one TV at the same time without any signal loss
Features:
1. It compatible with all DP inputs and HDMI,DP Outputs
2. It compatible with DP 1.4, 1.3, 1.2 and 1.0 specific ations
3. It compatible with HDMI 2.1 2.0,1.4,1.3 and support 3D,HDR,4K,8K
4. It supports SST and MST

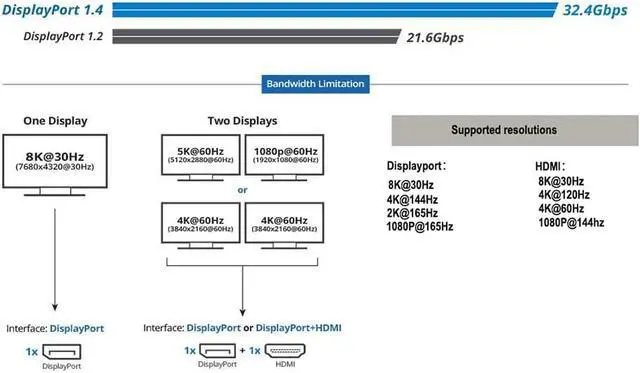

5. Support resolution:
8K@30Hz
4K@120Hz , 60Hz
1440P@165Hz , 144Hz , 120Hz , 60Hz (165hz, 144hz HDMI output not supported)
1080P@240Hz , 165Hz , 144Hz , 120Hz , 60Hz(165hz, 144hz HDMI output not supported)
(depending on your graphics card, monitor, operating system and DP line support etc.)
4. Support operating sys tem: IOS system, windows system,Android system

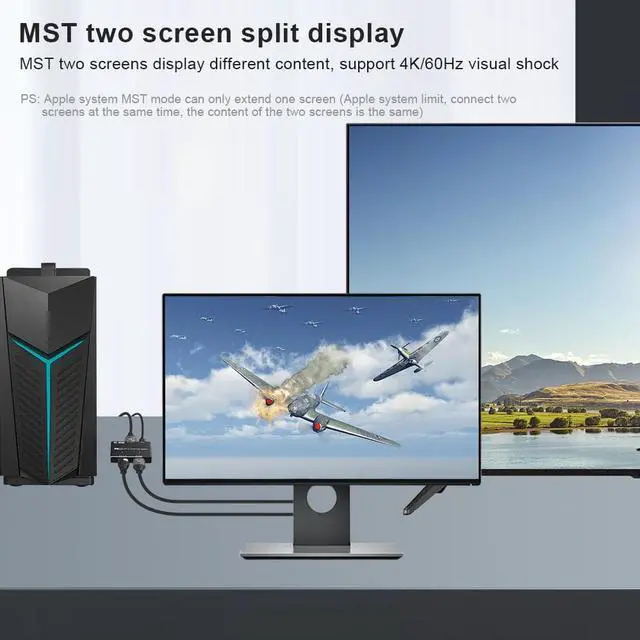

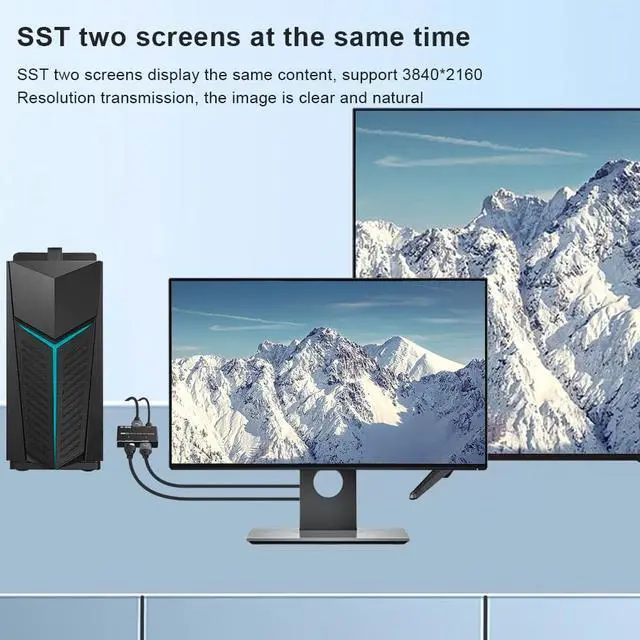

5. Support SST (mirror) and MST (Extended) mode
6. Support 4:4:4, 4:2:2, 4:2:0
Remarks
1. Need external power supply: when using, please make sure to use USB cable to power the switch.
2. In MST expansion mode, the HDMI or DP single port output can reach 8K@30Hz 4K@120Hz,
and the two ports output can reach 4K@60hz at the same time.

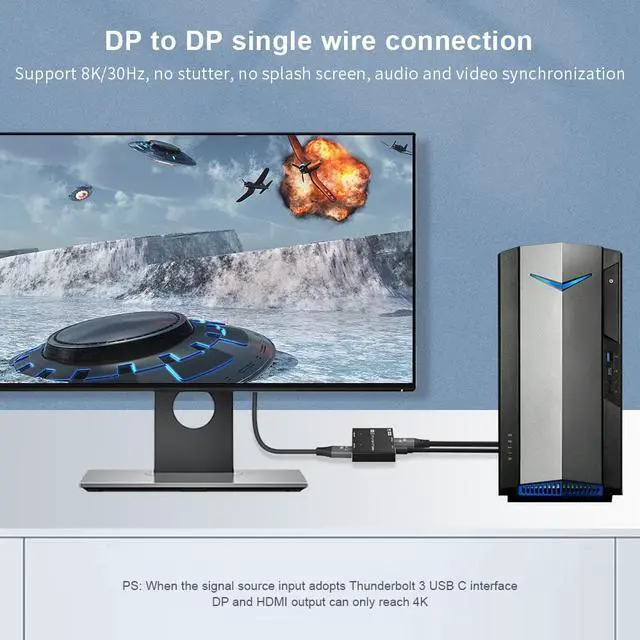

3. When the signal source input adopts Thunderbolt 3 USB C interface, DP and HDMI output can only reach 4K.
4. MST mode of Apple system can only extend one screen (limited by iOS System).
5.The splitter does not include DP and HDMI-compatible cables, the cables need to be purchased separately!
Package Conent:
1 DP to DP+HDMI splitter
1 USB to Micro USB power supply cable
1 User Guide
No retail box and other accessories,if any need,pls contact us first
SPECIFICATION
Input Port: 1 x DP Female, 1 x USB Micro B Female
Output Port: 1 x DP Female, 1 x HDMI-Compatible A Female
Bandwidth:32.4Gbps
Operating Temperature:5°F~131°F
Deep Color:8bit/10bit/12bit
Chroma: 4:2:0 / 4:2:2 / 4:4:4
Chassis: Aluminium alloy Shell
Dimension:7.0mm(L)x51.7mm(W)x13.0mm(H)
Weight:83.0g
