M-AUDIO FireWire 1814 18-in-14-out FireWire Audio-MIDI Interface w/ADAT Lightpipe
- FireWire 1814
Specs
Reviews (1)
Learn more about the M-AUDIO FireWire 1814
| Brand | M-AUDIO |
|---|---|
| Model | FireWire 1814 |
| Specifications | line inputs (TS) 1-8 frequency response: +/- 0.1 dB, 22Hz to 22kHz dynamic range: 105dB, A-weighted signal-to-noise ratio: -105dB, A-weighted THD+N: <0.00281% (-91dB) crosstalk: -107dB @ 1 kHz nominal input level: -10dBV maximum input level: +2.1dBV, typical input impedance: 10k Ohms, typical mic/inst. inputs (balanced) 1-2 at minimum gain frequency response: +/- 0.1 dB, 22 Hz to 22 kHz dynamic range: 105dB, A-weighted signal-to-noise ratio: -105dB, A-weighted THD+N: <0.00281% (-91dB) crosstalk: -105 dB @ 1 kHz maximum input level: -3.8 dBu, typical input impedance: inst in: 500k Ohms, typical; mic in: 1.8k Ohms, typical adjustable gain: > 40 dB pad: -20 dB total gain range: +60 dB Compatibility ASIO 2 MME Sound Manager DirectX Mac OS X Core Audio / Core MIDI GSIF 2 |
|---|
| Features | 18 x 14 FireWire audio interface 8 x 24-bit/96kHz analog inputs (1/4” TS) 4 x 24-bit/96kHz analog outputs (1/4' TRS/TS) 2 x 4 24-bit/192kHz analog I/O capability 8 x 8 ADAT Lightpipe I/O digital S/PDIF (coaxial) I/O w/ 2-channel PCM digital out also supports pass-through of AC-3/DTS surround-encoded content dual mic/instrument preamps (Neutrik XLR/ 1/4” TS) with • input level controls • 20dB pad • phantom power • signal LEDs two independently assignable headphone outputs with individual level controls (1/4" TRS) flexible software-controlled mixing of hardware and software I/O aux sends on all channels and aux output assign allows for dedicated headphone mixes and sends to external effects user-assignable front-panel level control (output, input, software return, aux send) near zero-latency hardware direct monitoring low-latency ASIO software direct monitoring momentary switch for A/B cueing two software-assignable headphone sources or switching ASIO monitoring on/off 1 x 1 16-channel MIDI I/O wordclock (BNC) for sync to external devices power on/off switch with indicator LED powered via FireWire bus* or included DC power adapter two convenient high-bandwidth FireWire ports rugged steel construction includes Ableton Live Lite 4 music production software, so you can make music right away |
|---|

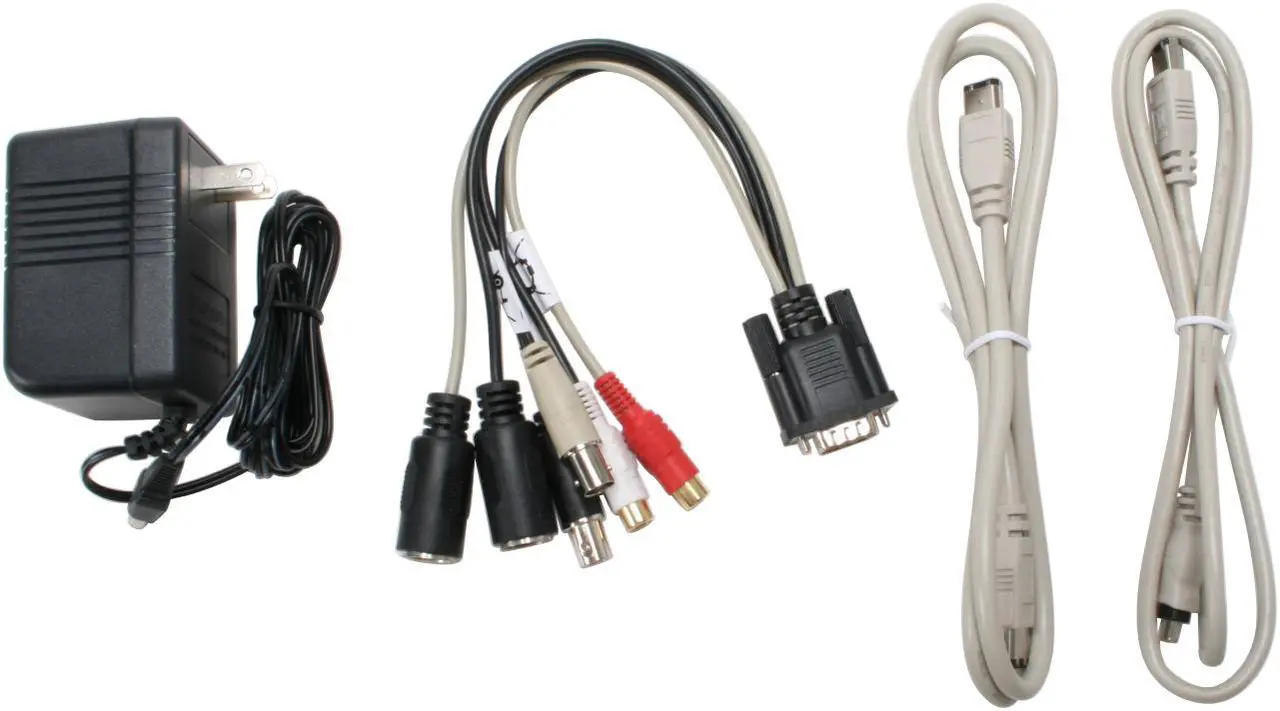

| Package Contents | FireWire Audio-MIDI Interface Power Adapter Audio Cables User Manual Driver Disks |
|---|
| Date First Available | May 15, 2007 |
|---|
