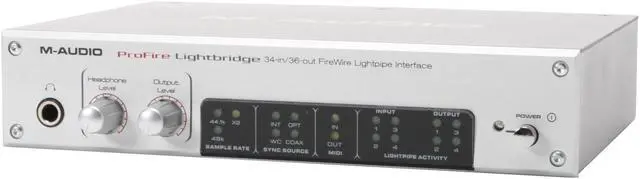

M-AUDIO Profire Lightbridge Firewire ADAT interface

Name: M-AUDIO Profire Lightbridge Firewire ADAT interface
Brand: M-AUDIO
SKU: N82E16823143014
Rating: 5 (1 reviews)

Specs

Reviews (1)

Any questions? Our AI beta will help you find out quickly.

Try me now

Learn more about the M-AUDIO Profire Lightbridge

Model
Brand	M-AUDIO
Model	Profire Lightbridge

Details
Specifications	D/A Converters 44.1, 48, 88.2, 96kHz Supported Bit Rates 16-bit, 24-bit Digital Inputs 4 optical Lightpipe stereo coaxial S/PDIF Digital Audio Outputs 4 optical Lightpipe stereo coaxial S/PDIF Line Outputs 1/4” TRS balanced/unbalanced Output Impedance 300 O balanced/150 O unbalanced Maximum Output Level +10.2dBu (2.5 Vrms) balanced +2.0dBV (1.26 Vrms), unbalanced Channel-to-Channel Crosstalk < -110dB @ 1kHz SNR -109dB, A-weighted Dynamic Range 109dB, A-weighted THD+N 0.00127 % (-98dB) @ -1dBFS, 1kHz Frequency Response 20Hz to 20kHz, +/- 0.1dB @ 48kHz sample rate 20Hz to 40kHz, +/- 0.2dB @ 96kHz sample rate Headphone Output Maximum Output -3.0dBV (1.71 Vrms) into 32 O Working Range 32 to 600 O Impedance 75 O Crosstalk < -85dB THD+N 0.011% (-79dB) @ -1dBFS, 1kHz SNR -108dB, A-weighted Dynamic Range 108dB, A-weighted Frequency Response 20Hz to 20kHz, +/- 0.1dB @ 48kHz sample rate 20Hz to 40kHz, +/- 0.2dB @ 96kHz sample rate Compatibility: Pro Tools M-Powered 7.3 and higher ASIO II WDM Core Audio GSIF II

Features
Features	32-channel Lightpipe I/O at 44.1 or 48kHz 16-channel Lightpipe I/O at 88.2 or 96kHz using S/MUX S/PDIF I/O (via included breakout cable, coax) two ¼” TRS analog outputs with dedicated level control all analog and digital I/O active simultaneously (total of 34 x 36 concurrent channels at 44.1 or 48kHz; 18 x 20 at 88.2 or 96kHz) word clock I/O (via included breakout cable, BNC) MIDI I/O (via included breakout cable) ¼” front-panel headphone out with dedicated level control up to 24-bit/96kHz operation FireWire connectivity to computer indicators for sample rate, Lightpipe I/O, MIDI I/O, sync source and power Kensington lock slot half-space rack chassis, optional mounting tray compatible with most major DAWs including Pro Tools M-Powered 7.3 and higher

Package Contents

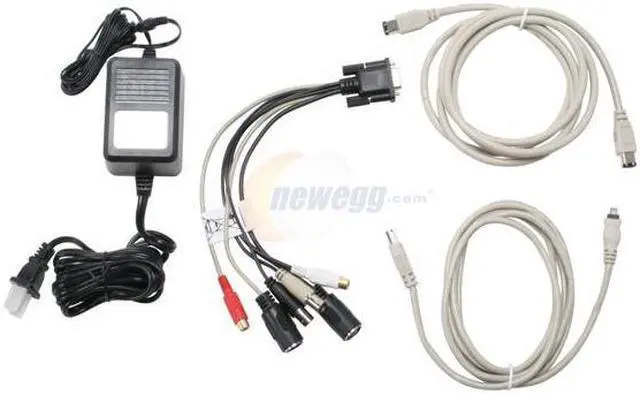

Package Contents	FireWire Lightpipe Interface Power Adapter Audio Cables Driver Disk

Additional Information
Date First Available	May 15, 2007
