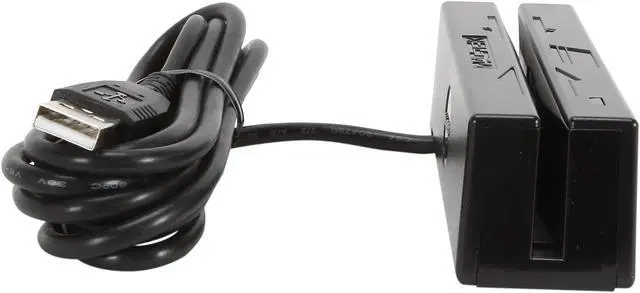

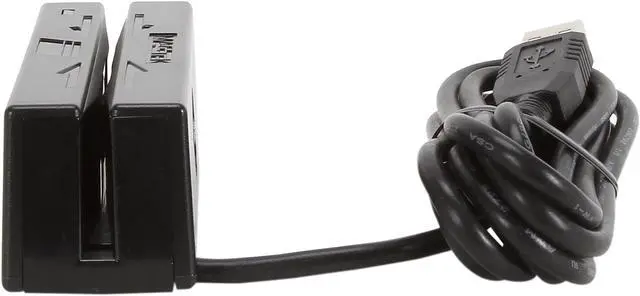

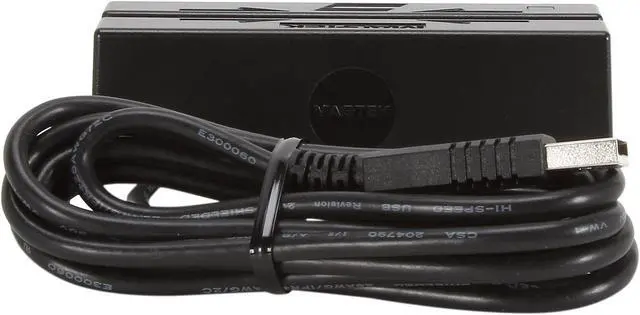

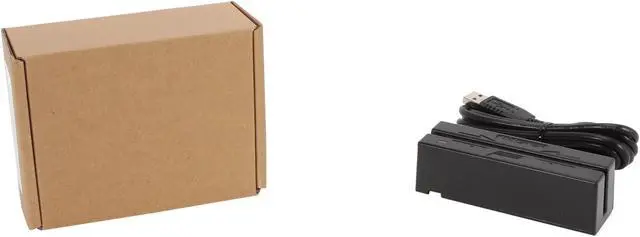

MagTek 21040140 USB HID SureSwipe
- ISO 7810 and ISO 7811/AAMVA
- USB-HID
- Track 1, 2 & 3
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
:| Magnetic Stripe Track Configuration: Triple Track| Maximum Swipe Speed: 60 in/s| Magnetic Stripe Track Number: Track 1| Magnetic Stripe Track Number: Track 2| Magnetic Stripe Track Number: Track 3| USB: Yes. .
SureSwipe MSR - Two Heads Are Better Than One
Introducing the Industry's first stand-alone Magnetic Stripe Reader (MSR) with two Magnetic Heads designed to reduce confusion at the Point of Sale.
Featuring a 3-track, bi-directional, dual-sided magnetic reader, the SureSwipe MSR was designed specifically to read any magnetic stripe card regardless of which way the magnetic stripe is facing when swiped. With a 99.9% accuracy rate, the SureSwipe MSR ensures the card data will be read on the first swipe every time.
Features
- The SureSwipe MSR ensures the card data will be read on the first swipe every time.
- Compatible with MagTek's existing USB MSR readers.
- Designed and configured to interface seamlessly with leading electronic cash registers, POS terminals and other USB devices.
- An LED indicator on the top of the reader provides the operator with continuous status of the reader operations.
- Captures 3 tracks of data from all ISO- and AAMVA-encoded magnetic stripe cards.
- Available in standard HID and Keyboard Emulation modes.
Standard Configurations
| Reference Standards | ISO 7810 and ISO 7811/AAMVA |
|---|---|
| Power Input | 5V from USB bus |
| Recording Method | Two-frequency coherent phase (F2F) |
| Message Format | ASCII |
| Card Speed | 3 - 60ips (7,62 - 152,4cm/s) |
Electrical
| Current | Normal: 15mA Suspend Mode: 200µA |
|---|
Mechanical
| Dimensions | Length: 3.94 in. (100mm) Width: 1.28 in. (32.5mm) Height: 1.23 in. (31.3mm) |
|---|---|
| Weight | 4.5oz (127.57g) |
| Cable Length | 6ft (1.8m) |
| Connector | USB Type A plug |
Environmental
| >Temperature | Operating: -40°F - 158°F (-40°C - 70°C) Storage: -40°F - 158°F (-40°C - 70°C) |
|---|---|
| Humidity | Operating: 10% - 90% non-condensing Storage: 10% - 90% non-condensing |
| Altitude | Operating: 0 - 10,000ft (0 - 2,048m) Storage: 0 - 50,000ft (0 - 15,240m) |
