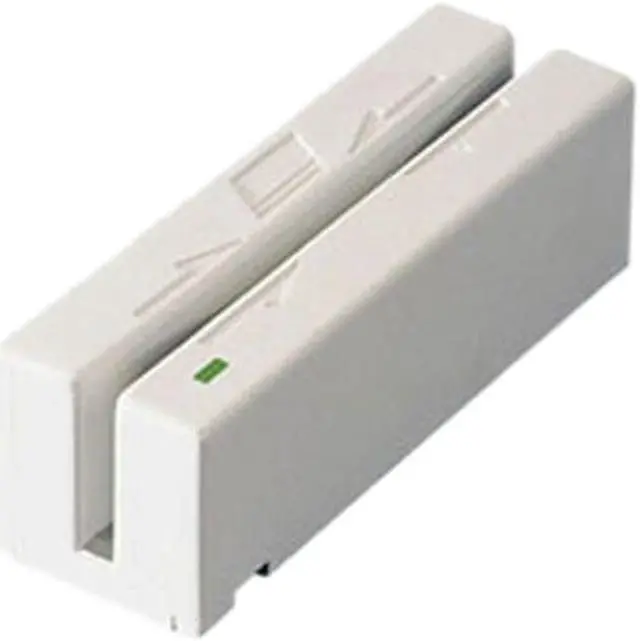

MagTek 21040146 SureSwipe Card Reader, 3-track, USB HID, Dual Head - White
- Powered through the USB – no external power supply required
- Hardware Compatible with PC or any computer or terminal with a USB interface
- Bi-directional card reading
- Reads encoded data that meets ANSI/ISO/AAMVA standards and others such as ISO track 1 format on track 2 or 3
- Reads up to three tracks of card data
- LED for status
- Compatible with USB specification Revision 1.1
- Compatible with HID specification Version 1.1
- Can use standard Windows HID driver for communications. No third part device driver is required
- Programmable USB serial number descriptor
- Programmable USB Interrupt in Endpoint polling interval on-volatile memory for configuration storage
- Built-in 6 foot USB cable
- Ability to convert to Keyboard Emulation mode of operation (new in June 2005)
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
SureSwipe MSR - Two Heads Are Better Than One
Introducing the Industry's first stand-alone Magnetic Stripe Reader (MSR) with two Magnetic Heads designed to reduce confusion at the Point of Sale.
Featuring a 3-track, bi-directional, dual-sided magnetic reader, the SureSwipe MSR was designed specifically to read any magnetic stripe card regardless of which way the magnetic stripe is facing when swiped. With a 99.9% accuracy rate, the SureSwipe MSR ensures the card data will be read on the first swipe every time.
Features
- The SureSwipe MSR ensures the card data will be read on the first swipe every time.
- Compatible with MagTek's existing USB MSR readers.
- Designed and configured to interface seamlessly with leading electronic cash registers, POS terminals and other USB devices.
- An LED indicator on the top of the reader provides the operator with continuous status of the reader operations.
- Captures 3 tracks of data from all ISO- and AAMVA-encoded magnetic stripe cards.
- Available in standard HID and Keyboard Emulation modes.
Standard Configurations
| Reference Standards | ISO 7810 and ISO 7811/AAMVA |
|---|---|
| Power Input | 5V from USB bus |
| Recording Method | Two-frequency coherent phase (F2F) |
| Message Format | ASCII |
| Card Speed | 3 - 60ips (7,62 - 152,4cm/s) |
Electrical
| Current | Normal: 15mA Suspend Mode: 200µA |
|---|
Mechanical
| Dimensions | Length: 3.94 in. (100mm) Width: 1.28 in. (32.5mm) Height: 1.23 in. (31.3mm) |
|---|---|
| Weight | 4.5oz (127.57g) |
| Cable Length | 6ft (1.8m) |
| Connector | USB Type A plug |
Environmental
| >Temperature | Operating: -40°F - 158°F (-40°C - 70°C) Storage: -40°F - 158°F (-40°C - 70°C) |
|---|---|
| Humidity | Operating: 10% - 90% non-condensing Storage: 10% - 90% non-condensing |
| Altitude | Operating: 0 - 10,000ft (0 - 2,048m) Storage: 0 - 50,000ft (0 - 15,240m) |
