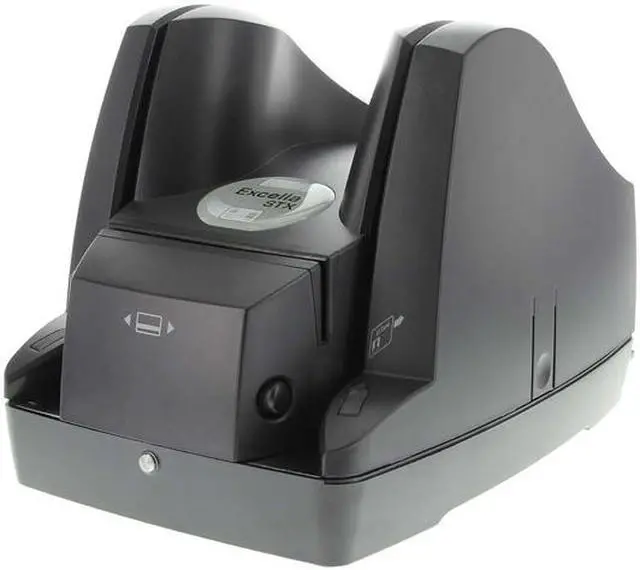

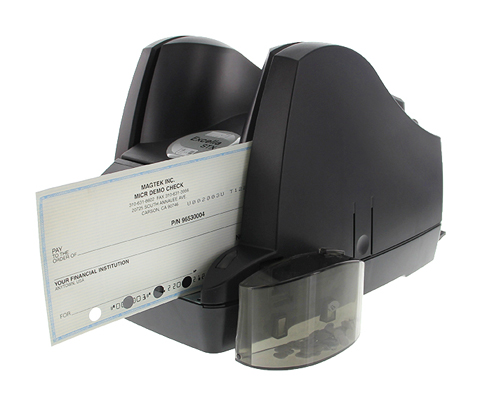

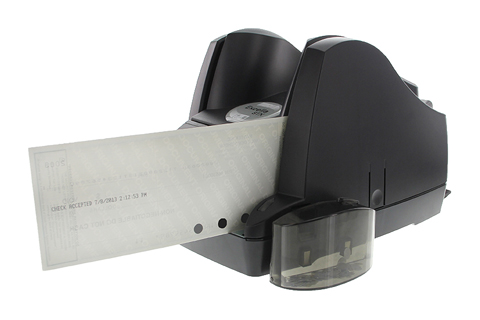

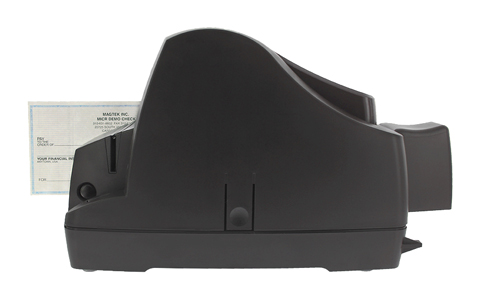

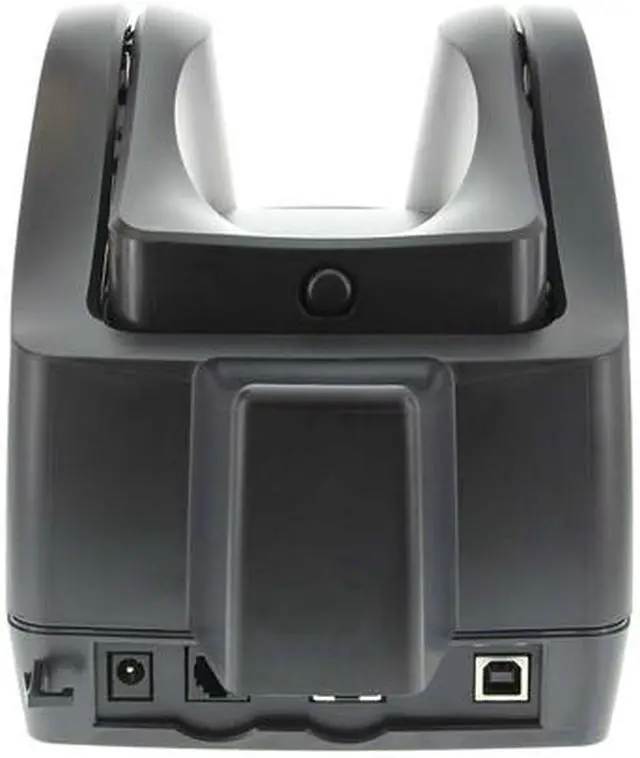

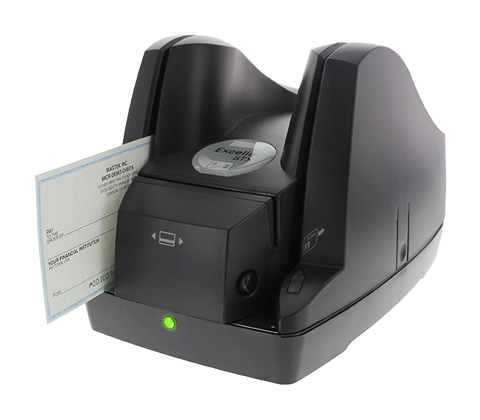

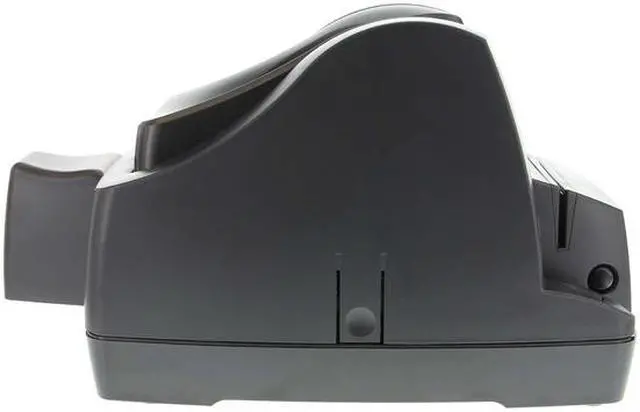

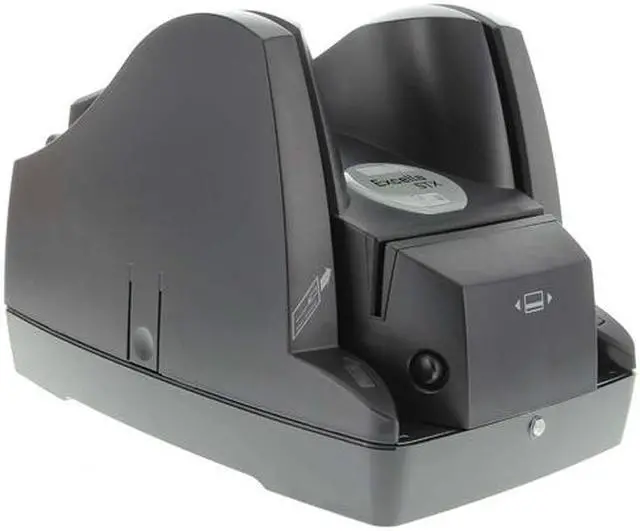

MagTek 22350009 Excella STX, Check Reading and Imaging Device, 3-track MSR, USB and Ethernet - Black
- 3-track integrated SCRA- Integrated MagneSafe secure card reader authenticator for magstripe cards
- Single feed - The Excella STX leads the industry in reliability and ease-of-use
- Featuring a front and back printer for franking and endorsing, Excella STX scans front and back images in a quick, single pass
- Check Scanning: Dual-sided
- ID Card Scanning: Single-sided
- 200 dpi (scaling to 100 dpi); Black/white and grayscale images (color images are offered as an option)
Any questions? Ask CelesteSM will help you find out quickly.
Excella STX
Check Reading and Imaging Device

3-track integrated SCRA
Integrated MagneSafe™ secure card reader authenticator for magstripe cards.

Single feed
The Excella STX leads the industry in reliability and ease-of-use.

Single pass front and back
Featuring a front and back printer for franking and endorsing, Excella STX scans front and back images in a quick, single pass.

Small footprint
Also offers single-side scanning for standard ID cards and offers an optional color scanning feature.

Secured by the MagneSafe Security Architecture
MagneSafe™ is a digital identification and authentication architecture that safeguards consumers and their personal data. Designed to exceed PCI regulations, MagneSafe leverages strong encryption, secure tokenization, counterfeit detection, tamper recognition, data relevance and integrity, and dynamic digital transaction signatures, which together validate and protect the entire transaction and each of its components.

Standard Configurations
| Interface | Front PRN | Back PRN | 3 Track MSR MagnePrint® | Color Images | P/N |
| USB/Ethernet | Yes | Yes | Yes | Yes | 22350001 |
| USB/Ethernet | Yes | Yes | Yes | No | 22350005 |
| USB/Ethernet | No | Yes | Yes | No | 22350009 |
General Information
| Interface |
USB 2.0 (USB 1.1 compatible) Ethernet 100Base-T Interfaces and API compatible with Excella |
| Color | Black |
| Dimensions |
Height: 6.3 in Width: 6.3 in Length: 9.4 in |
| Weight | 4.3 lb |
| Reference Standards |
ANSI X9.100-120 (formerly known as X9.27) ANSI X9-100-160-1 & 2 (formerly known as X9.13) |
| Power Input | 24 VDC, 2.5 Amps |
| Document Size | 4"x 8.5" maximum |
| Check Scanning | Dual-sided |
| ID Card Scanning | Single-sided |
| Image Resolution | 200 dpi (scaling to 100 dpi); Black/white and grayscale images (color images are offered as an option) |
| Image compression | CCITT G4 or JPEG |
| Printers (optional) | Front and Back |
| Printer Ink Cartridge | HP C6602A |
| Check Feed | Single-feed input |
| MICR fonts supported |
E13-B CMC-7 |
Magnetic Stripe Reader
| Reference Standards | ISO 7810 and ISO 7811/ AAMVA* |
| Message Format | ASCII |
| Card Speed | 4 to 60 ips (10.1 to 152.4 cm/s) |
Warranty & Returns
Warranty, Returns, And Additional Information
Warranty
- Limited Warranty period (parts): 1 year
- Limited Warranty period (labor): 1 year
- Read full details
Return Policies
- Contact Manufacturer for Assistance
- This item is covered by Newegg.com's Manufacturer Warranty Only Return Policy.
- Read full return policy for details.
Manufacturer Contact Info
- Manufacturer Product Page
- Manufacturer Website
- Support Phone: 562-546-6400
- Support Email: support@magtek.com
- Support Website
- View other products from MagTek, Inc
The MagTek Excella STX is a single-feed MICR check reader and scanner for businesses that process paper checks, capturing both sides in one pass and connecting by USB or Ethernet. Its integrated three-track MagneSafe card reader also supports magnetic-stripe card authentication.
Recommended For
- Bank tellers or back-office staff who need to read a check’s MICR line and capture both sides in one pass as part of a teller-line or check-processing workflow.
- Small businesses and retailers that accept checks at a fixed counter and need to capture check images for bank or electronic-check processing.
- Businesses handling remote-deposit-capture or Check 21 workflows that need a compact, single-check-at-a-time reader connected to a computer over USB or Ethernet.
- Counter-service teams that also need to read a magnetic-stripe card or scan a standard ID alongside check processing, using the device’s integrated card reader and single-sided ID scanning.
Spec Summary
| Attribute | Value |
|---|---|
| Best For | Check-processing workflows needing dual-sided imaging, single-feed handling, and USB or Ethernet connectivity |
| Scanner And Imaging | MICR check reader with dual-sided scanning at 200 dpi, scalable to 100 dpi; supports CCITT G4 black-and-white or JPEG grayscale compression |
| Document Handling | Single-feed scanning for documents up to 4.00 × 8.50 inches |
| Connectivity | USB and Ethernet |
| Physical Specifications | Black; 6.30 × 6.30 × 9.40 inches (H × W × L); 4.30 lb |
| Model Identifiers | MagTek Excella STX, part number 22350009 |
