MAIWO KT015 dual M.2 PCIE Adapter for SATA or PCIE NVMe SSD with Advanced Heat Sink Solution,M.2 SSD NVME(M key) and SATA (B-key/B+M key) 2280 2260 2242 to PCI-e 3.0 x 4 Host Controller Expansion Card

(1) Write a Review
  • Perfect Solution for Your Desktop: NVMe/SATA to PCIe adapter card, supports M.2 NVMe/SATA SSD(One SATA interface and one PCIE x4 interface). PCIe adapter card allows to add your M.2 NVMe/SATA SSD to your desktop, perfect solution for your desktop.
  • Exclusively Designed for Speed:Up to 32Gbps with PCI Express 3.0 x4. 3200+MB/s read and 1500+MB/s write. Up to 6Gbps with SATA, 550+MB/s read and 520+MB/s write. M.2 pcie adapter Support PCIe x4 x8 x16 slot for Windows 7/8.1/10 & MacOS,Linux.
  • Applicable SSD:Support M.2 NVMe M key or SATA NGFF B/B+M key SSD. M.2 M key NVMe SSD requires with PCIe slot. M.2 SATA NGFF B/B+M key SSD requires with a SATA cable. Applicable to sizes 2242/2260/2280 SSDs.
  • Stable Quality :No driver installation required,plug and play, intelligent LED indicator, always flashes when plugged in cartoon, flashes when reading and writing,Adopt large capacity capacitance, high power LDO Control chip, ensure more stable performance, and enjoy faster transmission.
Overview
Specs
Reviews (1)
avatar

Any questions? Our AI beta will help you find out quickly.

Try me now

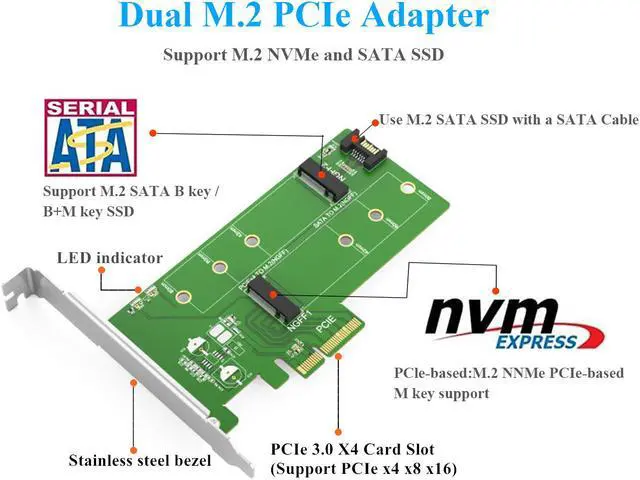

2 in 1 M.2 Adapter Card
- Brand: MAIWO
- Model: KT015
- Supports M.2 PCIE NVME SSD (Key-M), PCIE 3.0 X4 full speed support.
- Supports M.2 SATA M.2 SSD (Key-B / B+M), SATA III 6 Gbps bandwidth
- Supports two M.2 SSD simultaneously Read and Write (One SATA interface and one NVMe interface)
- High-speed signal transmission with better continuity and stability

Features:

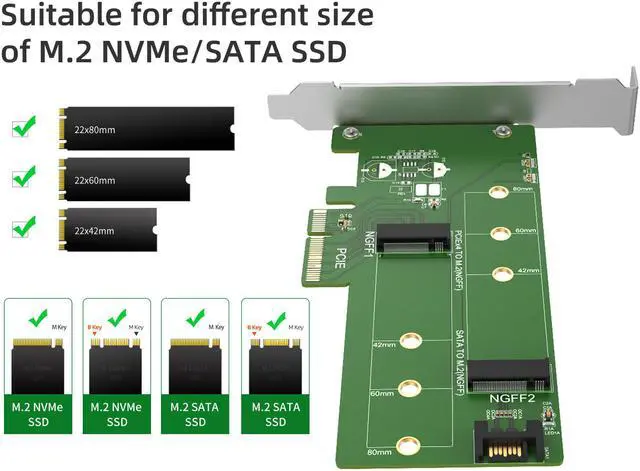

- Apply to 2280/2260/2242mm M.2 SSD
- LED Indicator for SSD states

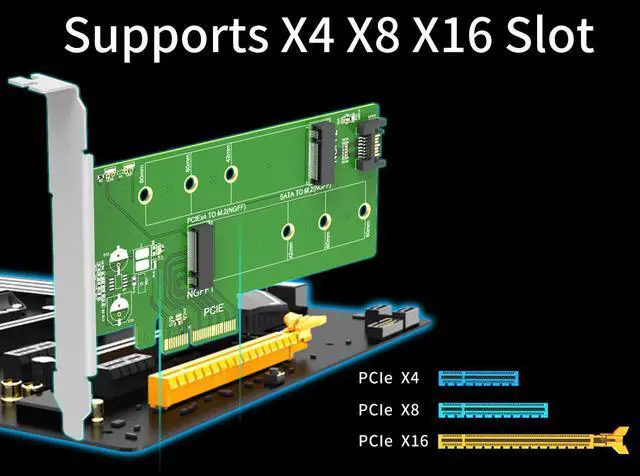

- PCIE 3.0 X4/X8/X16 lane installation
- Supports PCIe 1.0, PCIe 2.0 and PCIe 3.0 motherboard

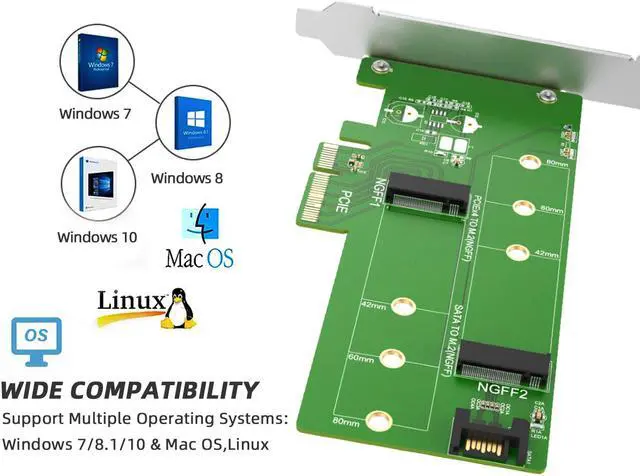

- Supports any OS, like Windows, WinCE, Mac & Linux etc
- Dimensions: 5.83 inch * 4.72 inch * 0.87 inch
- No additional power required
- Easy installation & no driver required
- Included full profile bracket for standard PC tower

Please Kindly Note:
- 7-pin SATA cable must be connected to motherboard if you want to read the M.2 SATA SSD (Key-B / B+M) for data transfer(normally many cables prepared with motherboard)
- This adapter only support PCIe X4, X8, X16 slot. DO NOT support PCIe X1 slot

Packing list:
1 * 1x NVMe/SATA to PCIe adapter card(SSD is NOT included)
1 * Bracket
1 * Screw Kit
1 * User Manual,
1 * mini screw driver.
1 * low profile bracket
M.2 PCIE Adapter
image for this item

2 in 1 M.2 Adapter Card
- Brand: MAIWO
- Model: KT015
- Supports M.2 PCIE NVME SSD (Key-M), PCIE 3.0 X4 full speed support.
- Supports M.2 SATA M.2 SSD (Key-B / B+M), SATA III 6 Gbps bandwidth
- Supports two M.2 SSD simultaneously Read and Write (One SATA interface and one NVMe interface)
- High-speed signal transmission with better continuity and stability

image for this item

Features:
- Apply to 2280/2260/2242mm M.2 SSD
- LED Indicator for SSD states
- PCIE 3.0 X4/X8/X16 lane installation
- Supports PCIe 1.0, PCIe 2.0 and PCIe 3.0 motherboard
- Supports any OS, like Windows, WinCE, Mac & Linux etc
- Dimensions: 5.83 inch * 4.72 inch * 0.87 inch
- No additional power required
- Easy installation & no driver required
- Included full profile bracket for standard PC tower

Please Kindly Note:
- 7-pin SATA cable must be connected to motherboard if you want to read the M.2 SATA SSD (Key-B / B+M) for data transfer(normally many cables prepared with motherboard)
- This adapter only support PCIe X4, X8, X16 slot. DO NOT support PCIe X1 slot

Packing list:
1 * 1x NVMe/SATA to PCIe adapter card(SSD is NOT included)
1 * Bracket
1 * Screw Kit
1 * User Manual,
1 * mini screw driver.
1 * low profile bracket
