BUCIER 2pcs DC-DC Buck Converter Power Module 3A Adjustable Step-Down LM2596 Voltage Regulator 24V to 12V 5V 3V
- Input Voltage: DC 3V-35V, Output Voltage: DC 1.25V-35V (continuously adjustable), high effeciency, max output current up to 3A.

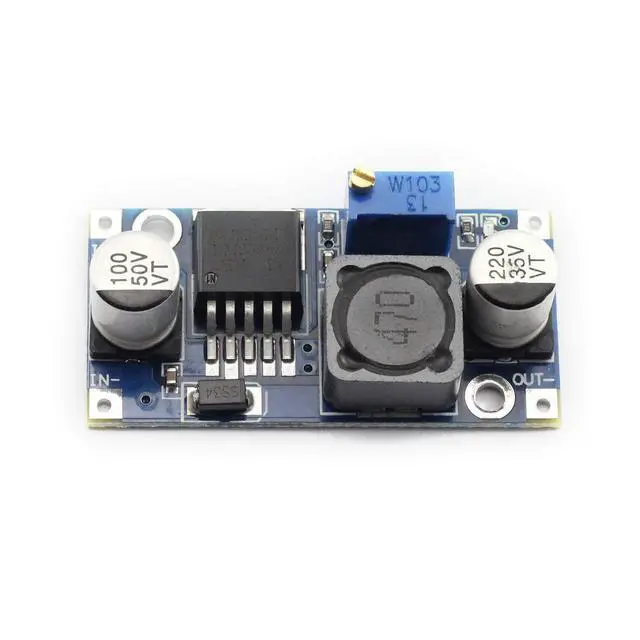

- Adopting SANYO solid-state capacitor, 36u thickened circuit board, high Q value large power inductance, with LED indicator.
- High precision potentiometer, factory default is approx 18V. Turn the potentiometer counterclockwise 1 cycle, it may step-down approx 1V voltage.
- 0.1uF high frequency bypass capacitor, can effectively filter out high frequency noise.
- Two Wire Connection Mode: Solder and Welding Pin.
+
+
Overview
Specs
Reviews
Specification:
Type: LM2596S DC-DC Buck Converter
Input Voltage: 3V-35V
Output Voltage: 1.25V-35V
Output Current: 3A Max
Transfer Efficiency: 92% Max
Output Ripple: Less than 30mV
Switch Frequency: 65KHz
Work Temperature: -45 to +85 degree Celsius

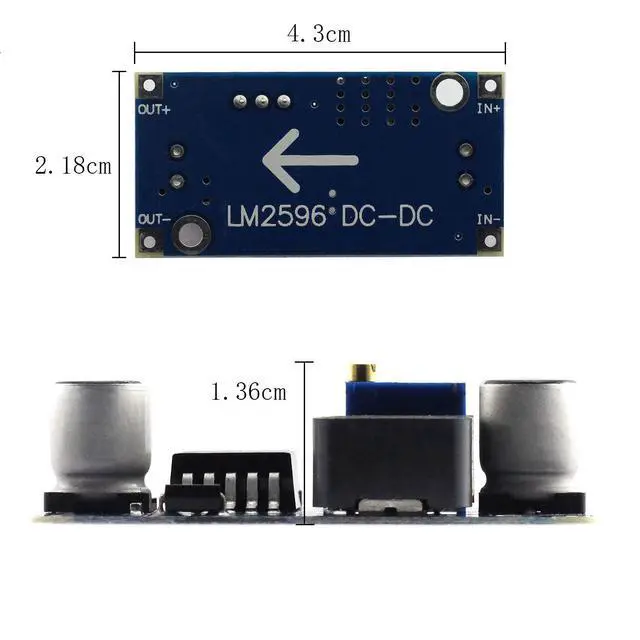

Size: 43x21x14mm (LxWxH)

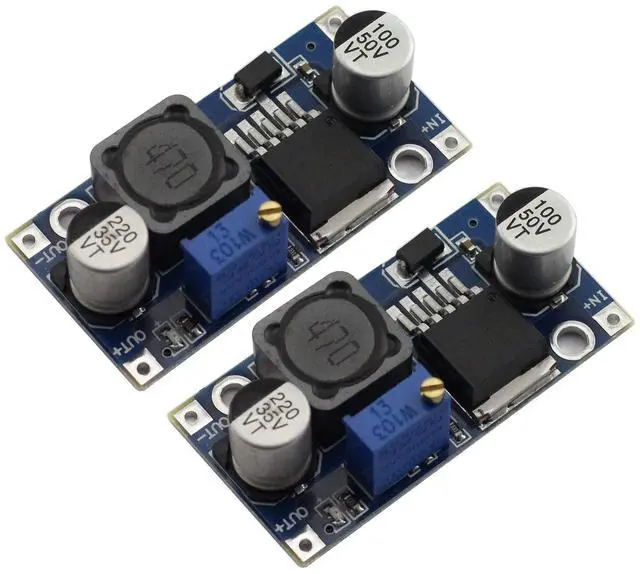

Quantity: 2pcs
Tips:
1. Input and output cannot be reversed, or it will burn the module.
2. Input voltage much be more than 1.5V higher than output voltage. Can not used to boost voltage.
3. After wire connection, first to turn a dozen times, then adjust the voltage by anticlockwise rotation.
4. It is recommended to use within 2.5A current for long time work, and need to add heat sink if the current exceeds 2A(output above 10W).
Wire Connection:
1. Solder, weld the power cord directly to the input (output) port.

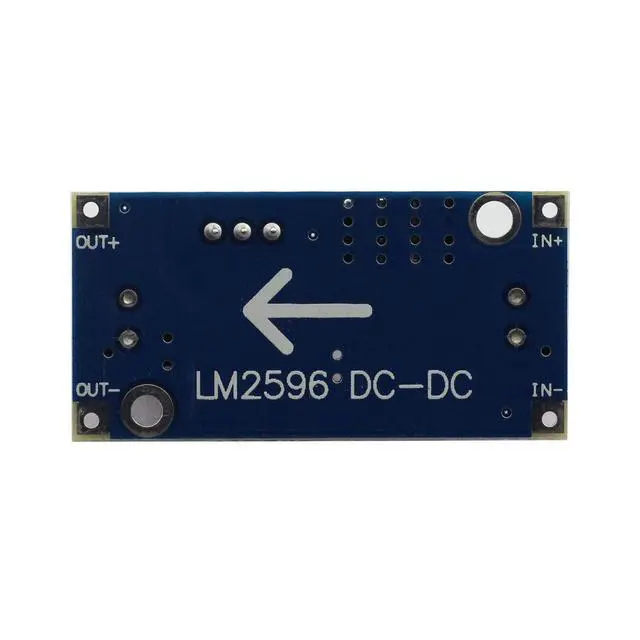

2. Welding Pin, can insert the pin with lead wire or insert into PCB, or welding on the PCB directly with pin.
