| CPU |
Ryzen 5 6600H |
| # of Cores/Threads |
6C/12T |
| Max. Boost Clock |
4.5GHz |
| Base Clock |
3.3GHz |
| L3 Cache |
16MB |
| AMD Radeon Graphics |
660M |
| Memory Type |
Dual Channel SO-DIMM DDR5 |
| Max Capacity |
64GB |
| Display GPU |
AMD Radeon Graphics |
| Ethernet Controller |
Intel i226. Data Rate Per Port: 10/100/1000/2500Mbps |
| Audio Codec |
CONEXANT HD CX20632 |
| Hardware Function |
CPU temperature, System temperature, Onboard voltage, Watchdog |
| Storage M.2 |
2xM.2 Slot for 2280 NVMe SSD |
| Expansion M.2 |
1xM.2 Slot for WiFi, Support PCIe&USB |
| Front I/O |
USB3.2 2xUSB3.2(Type-A port) |
| USB-C |
1xUSB-C(Type-C port), support USB 3.2_10Gb ONLY |
| Audio |
1xCTIA 2in1 Audio Jack, Supports Line-out+Mic-in |
| Power Button |
1xPower Button |
| Back I/O |
LAN 1xRJ45 LAN(2.5GbE) |
| USB-C |
1xUSB-C(Type-C port, USB4) full-funcationed, support display mode. |
| USB2.0 |
1xUSB2.0 |
| DP |
1xDP1.4 |
| HDMI2.0 |
1xHDMI2.0 |
| DC-IN |
1xDC-IN |
| Others |
TPM Optional |
| Dimension Size |
127 mm x 135 mm x 55mm (L x W x H) |
| Power |
Standard Port 19V/20V DC-in |
| Temperature |
Operating Temp. 0°C to 50°C/ Storage Temp. -20°C to 70°C |
| Cooling |
Active |
| Operating System |
Supports Windows 10/11 64bit, Linux 64bit |

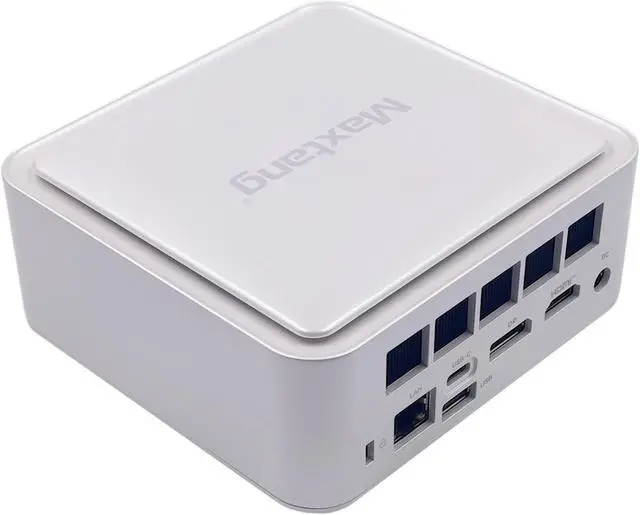

[Small but Powerful] Maxtang MTN-6600H is a mini PC equipped with AMD 6600H CPU (up to 4.5GH z, 16MB cache). Compared to Intel Core i7-1165G7, it has a high score of about 85%. Total system TDP is around 45-55 Watts when under load. For gaming performance, Indie games are generally going to have no problem running 60FPS+, the Kingdom Hearts Remasters on Steam which also runs flawlessly at 60FPS. With a compact size of 127 mm x 135 mm x 55 mm, the small form factor would keep it protected from most forms of damage ( fit in an average hand).
[Dual DDR5 Ram Support] This mini gaming PC supports dual channel SO-DIMM DDR5 memory, allowing you to smoothly process multiple tasks simultaneously. Sturdy and durable memory performance improves work efficiency.
Supported temperature:
Operating: 0 to 50 Non-operating: -20 to 70
[Various display functions] The Ryzen 5 6600H's built-in graphics "Radeon 660M" GPU delivers high-quality graphics and smooth gameplay. Compared to the Iris Xe Graphics G7 96EUs, the number of shaders is about 300% higher and the Boost frequency also scores about 41% higher. Multiple display outputs are possible using HDMI, DP, and USB4 interfaces, a, allowing you to create a multi-monitor environment, you can watch movies, steam shows. Its processing power ensures smooth playback and great image quality.
[Rich Connectivity Options] This mini PC is equipped with a 10/100/1000/2500 Mbps Ethernet controller and two M. 2 NVMe slots for high-speed storage. It also has an additional M. 2 slot for Wi-Fi and Bluetooth. Other I/O interfaces include two USB 3.2, one USB 2.0, one LAN ( 2.5G bE), two USB-C, and a 2 in 1 CTIA audio jack for connecting to a variety of devices. Plus this mini PC comes with the hardware to attach to the back of a TV via the VESA mount.
[What You Get & Quality Guarantee] This product comes with a 12-month product warranty from the date of order.
What You Get: 1x mini PC, 1x HDMI cable, 1x power adapter, 1x power cord, 1x VESA mount, 4x mounting screws, 1x product manual, 12 month warranty and and our friendly customer service.
