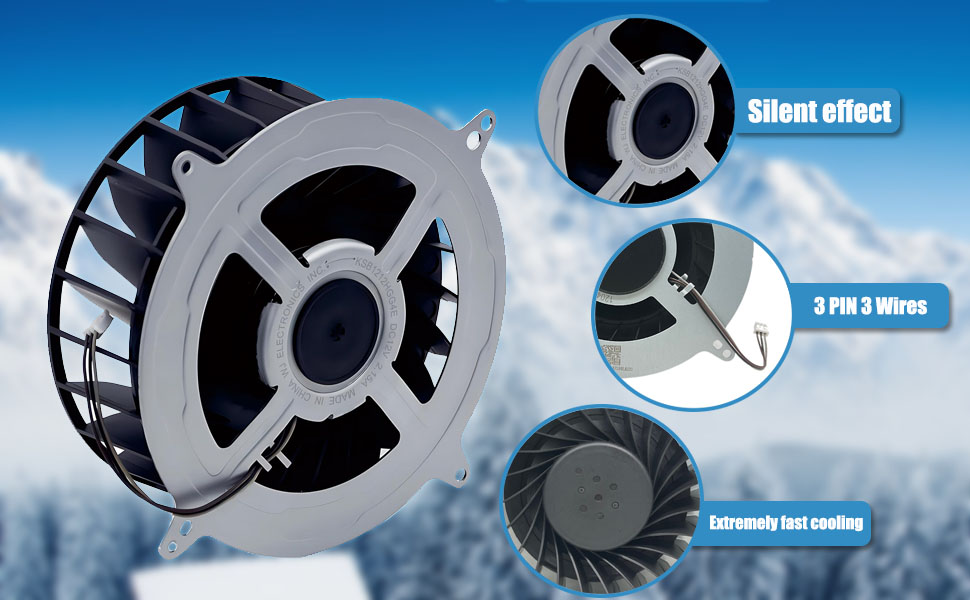

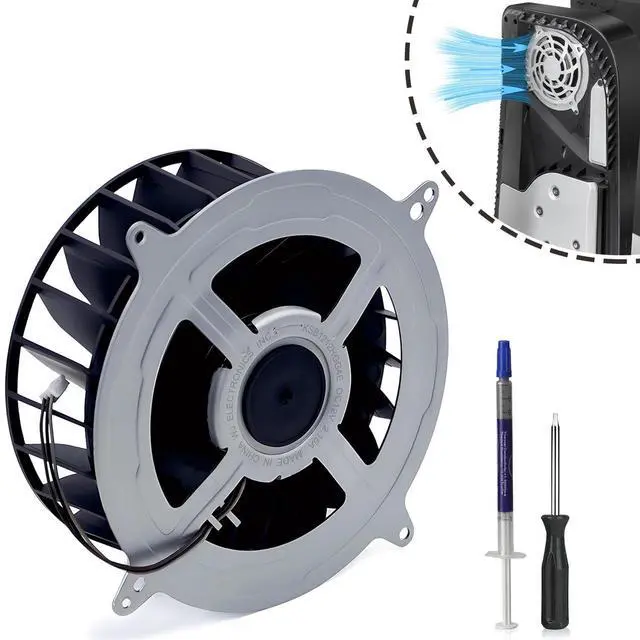

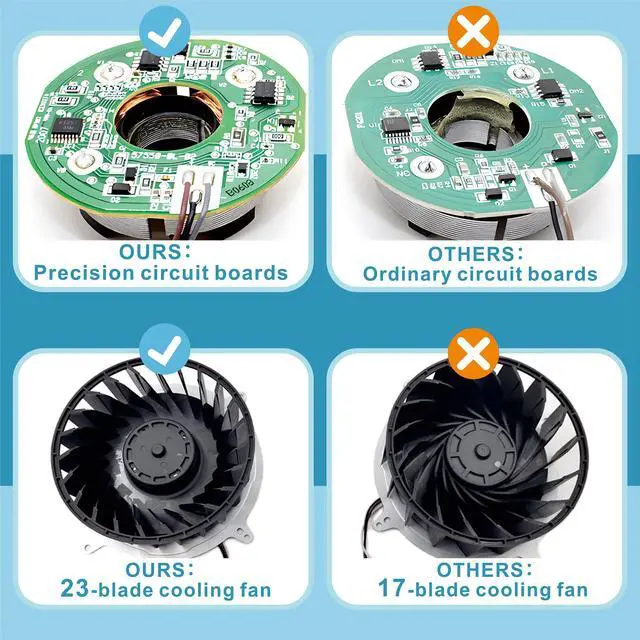

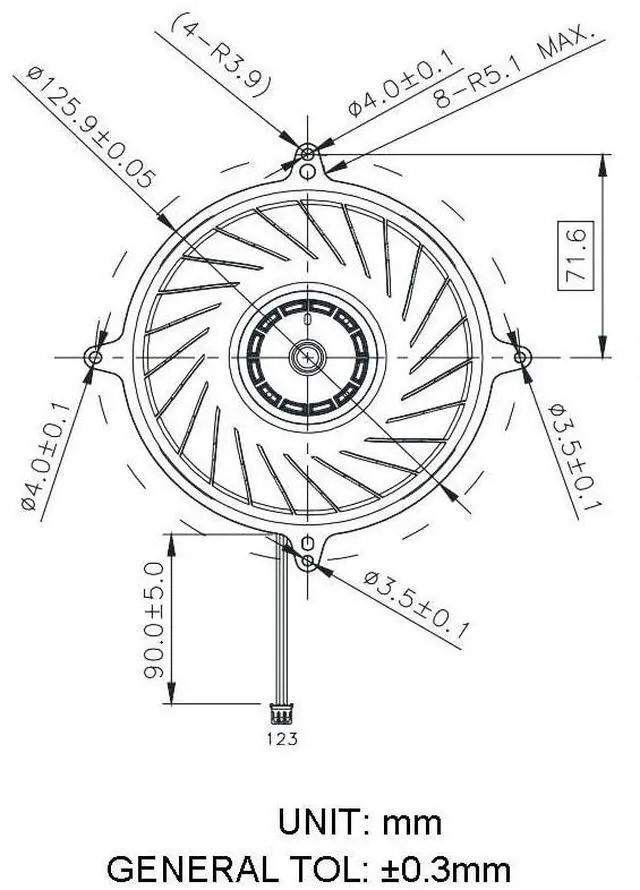

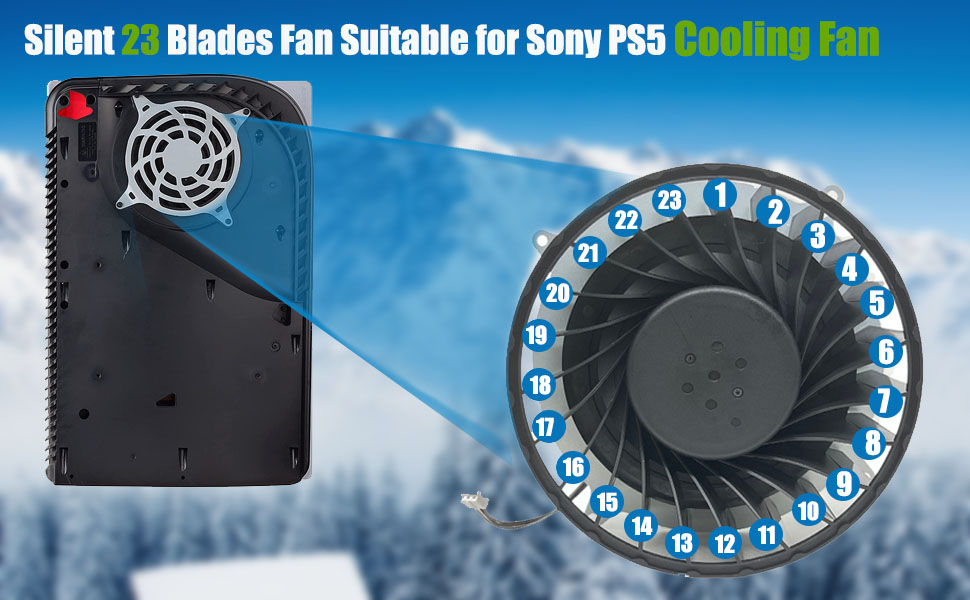

Fan Model:PS5 internal cooling fan,12V 2.4A,23 blades, 90mm wire length
RATED VOLTAGE : 12 VDC |OPERATION VOLTAaGE : 11.4 - 12.6 VDC |MINIMUN START DUTY : 17% @ 25kHz, 25?, 3.3VDC |OPERATION DUTY RANGE : 10% - 100% @ 25kHz, 25?, 3.3VDC |INPUT CURRENT : 1.60 (MAX. 1.90) A | RMS CURRENT AT DUTY CYCLE 10% : MAX. 0.06 A | RMS CURRENT AT DUTY CYCLE 10% : MAX. 0.06 A | RMS CURRENT AT DUTY CYCLE 17% : 0.08 (MAX. 0.12) A | RMS CURRENT AT DUTY CYCLE 100% : 1.90 (MAX. 2.15) A | PEAK CURRENT : 3.30 (MAX. 3.60) A | STANDBY CURRENT : MAX. 0.5 mA | INPUT POWER : 19.2 (MAX. 22.8) W | SPEED AT DUTY 10% : MAX. 750 R.P.M. | SPEED AT DUTY 17% : 750±300 R.P.M. |SPEED AT DUTY 100% : 2500 R.P.M. | MAX. AIR FLOW AT DUTY CYCLE 100% (AT ZERO STATIC PRESSURE): 3.405 (MIN. 2.826) M3/MIN. AT 12.0 VDC, 25? |
MAX. AIR PRESSURE AT DUTY CYCLE 100% (AT ZERO AIRFLOW) : 180.0 (MIN. 124.0) Pa AT 12.0 VDC, 25?
MAX. AIR FLOW AT DUTY CYCLE 17%(AT ZERO STATIC PRESSURE) : 1.000 M3/MIN. (REF.) AT 12.0 VDC, 25?
ACOUSTICAL NOISE AT DUTY CYCLE 17% (AVG. AT 0.25 METER): 42.0 (MAX. 50.0) dB-A AT 12.0 VDC, 25?
ACOUSTICAL NOISE (AVG. AT 0.25 METER): 71.0 (MAX. 75.0) dB-A AT 12.0 VDC, 25?
UNBALANCE : 300.8 mg-cm
INSULATION TYPE : UL: CLASS A
INSULATION STRENGTH : 10 MEG OHM MIN. AT 500 VDC (BETWEEN FRAME AND (+) TERMINAL)
DIELECTRIC STRENGTH : 5 mA MAX. AT 500 VAC 50/60 Hz ONE MINUTE, (BETWEEN FRAME AND (+) TERMINAL)
LIFE EXPECTANCE : 20,000 HOURS CONTINUOUS OPERATION
ROTATION : COUNTERCLOCKWISE DIRECTION FROM NAME PLATE SIDE
Fan Model:PS5 internal cooling fan,12V 2.4A,23 blades, 90mm wire length
RATED VOLTAGE : 12 VDC |OPERATION VOLTAaGE : 11.4 - 12.6 VDC |MINIMUN START DUTY : 17% @ 25kHz, 25?, 3.3VDC |OPERATION DUTY RANGE : 10% - 100% @ 25kHz, 25?, 3.3VDC |INPUT CURRENT : 1.60 (MAX. 1.90) A | RMS CURRENT AT DUTY CYCLE 10% : MAX. 0.06 A | RMS CURRENT AT DUTY CYCLE 10% : MAX. 0.06 A | RMS CURRENT AT DUTY CYCLE 17% : 0.08 (MAX. 0.12) A | RMS CURRENT AT DUTY CYCLE 100% : 1.90 (MAX. 2.15) A | PEAK CURRENT : 3.30 (MAX. 3.60) A | STANDBY CURRENT : MAX. 0.5 mA | INPUT POWER : 19.2 (MAX. 22.8) W | SPEED AT DUTY 10% : MAX. 750 R.P.M. | SPEED AT DUTY 17% : 750±300 R.P.M. |SPEED AT DUTY 100% : 2500 R.P.M. | MAX. AIR FLOW AT DUTY CYCLE 100% (AT ZERO STATIC PRESSURE): 3.405 (MIN. 2.826) M3/MIN. AT 12.0 VDC, 25? |
MAX. AIR PRESSURE AT DUTY CYCLE 100% (AT ZERO AIRFLOW) : 180.0 (MIN. 124.0) Pa AT 12.0 VDC, 25?
MAX. AIR FLOW AT DUTY CYCLE 17%(AT ZERO STATIC PRESSURE) : 1.000 M3/MIN. (REF.) AT 12.0 VDC, 25?
ACOUSTICAL NOISE AT DUTY CYCLE 17% (AVG. AT 0.25 METER): 42.0 (MAX. 50.0) dB-A AT 12.0 VDC, 25?
ACOUSTICAL NOISE (AVG. AT 0.25 METER): 71.0 (MAX. 75.0) dB-A AT 12.0 VDC, 25?
UNBALANCE : 300.8 mg-cm
INSULATION TYPE : UL: CLASS A
INSULATION STRENGTH : 10 MEG OHM MIN. AT 500 VDC (BETWEEN FRAME AND (+) TERMINAL)
DIELECTRIC STRENGTH : 5 mA MAX. AT 500 VAC 50/60 Hz ONE MINUTE, (BETWEEN FRAME AND (+) TERMINAL)
LIFE EXPECTANCE : 20,000 HOURS CONTINUOUS OPERATION
ROTATION : COUNTERCLOCKWISE DIRECTION FROM NAME PLATE SIDE
