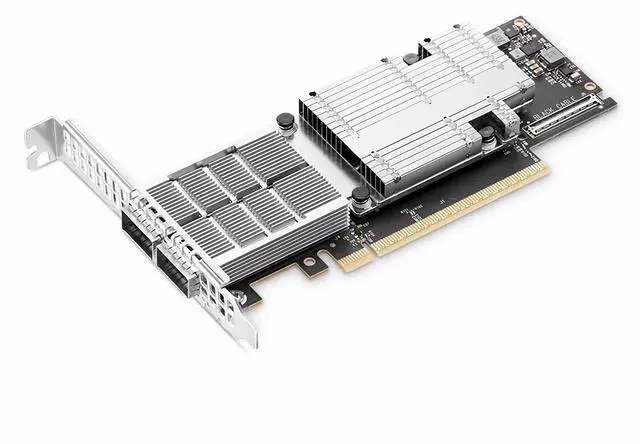

Main image of NVIDIA MCX755106AS-HEAT ConnectX-7 Adapter Card - 200GbE/NDR200 - Crypto Disabled - PCI Express 5.0 x16 - 2 Ports - Optical Fiber - HHHL Bracket Height - QSFP112 - Plug-in Card

Shop All NVIDIA Products

NVIDIA MCX755106AS-HEAT ConnectX-7 Adapter Card - 200GbE/NDR200 - Crypto Disabled - PCI Express 5.0 x16 - 2 Ports - Optical Fiber - HHHL Bracket Height - QSFP112 - Plug-in Card

Be the first to review this product...

Supports optical fiber cable to span longer distances and provides data transmission rates par excellence between servers and network components
This dual port 200gigabit ethernet card lets you add two network ports using a single expansion slot to a client, server or workstation
The PCI Express 5.0 x16 interface provides smooth data transfer and outstanding performance
200Gigabit Ethernet Card is reliable and offers a convenient networking solution

This item is covered under the Manufacturer Only Return Policy.

Overview

Specs

Reviews

See all Q & A

Any questions? Our AI beta will help you find out quickly.

Try me now

NVIDIA CONNECTX-7 VPI ADAPTER CARD, 200GB/S (NDR200/HDR AND 200GBE), DUAL-PORT QSFP, SINGLE PORT INFINIBAND AND SECOND PORT VPI

Model
Brand	NVIDIA
Model	ConnectX-7 Adapter Card
Part Number	MCX755106AS-HEAT

Details
Speed	InfiniBand: NDR200/HDR/HDR100/EDR/FDR/SDR Ethernet (Default Mode): 200/100/50/25/10 Gb/s
Interface	PCI Express Interface: Gen 5.0/4.0: SERDES @ 16/32GT/s, x16 lanes (4.0 and 3.0 compatible) Networking Ports: Dual QSFP112 InfiniBand and Ethernet

Features
Features	Voltage: 12V, 3.3VAUX Maximum current: 100mA Typical power with passive cables in PCIe Gen 5.0 x16: 24.9W

Dimensions & Weight
Dimensions	Adapter Card Size: PCIe Half Height, Half Length 2.71 in. x 6.6 in. (68.90mm x 167.65 mm) Auxiliary PCIe Connection Card Size: 5.09 in. x 2.32 in. (129.30mm x 59.00mm) Two Cabline CA-II Plus harnesses (white and black)

Disclaimer
Disclaimer	RGULATORY Safety: CB / cTUVus / CE EMC: CE / FCC / VCCI / ICES / RCM / KC RoHS: RoHS Compliant

Additional Information
First Listed on Newegg	November 26, 2025
