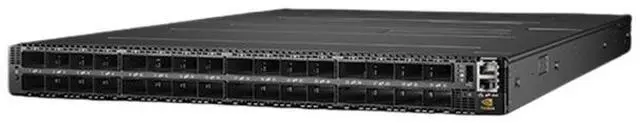

Brand New NVIDIA MQM9790-NS2F Quantum 2 NDR InfiniBand Switch
Learn more about the NVIDIA QM9790
Model
Brand
NVIDIA
Series
Quantum-2 QM9700 Series
Model
QM9790
Part Number
MQM9790-NS2F
Format & Standards
Format
Rackmount
Ports & Interface
Primary Port Speed
40, 56, 100, 200, 400 Gb/s per port
Primary Port Type
32 x OSFP
Power Supply
Power
Input Voltage: 1x/2x, 200-240Vac, 10A, 50/60Hz Global Power Consumption: Typical power with passive cables (ATIS): 640WMax power with active cables: 1,610W
Dimensions & Weight
Dimensions
17.2" (H) x 1.7" (W) x 26" (D) 438mm (H) x 43.6mm (H) x 660mm (D)
Weight
1 PSU: 13.6 kg 2 PSUs: 14.8 kg
Environmental
Temperature
Operational: Forward air flow: 0 degree Celsius to 35 degrees Celsius / Reverse air flow: 0 degree Celsius to 40 degrees Celsius Non-Operational: -40 degrees Celsius to 70 degrees Celsius
Features
Features
MAIN DEVICES:
CPU (in QM9700 only): Intel Core i3 Coffee Lake Switch: NVIDIA Quantum -2 IC
