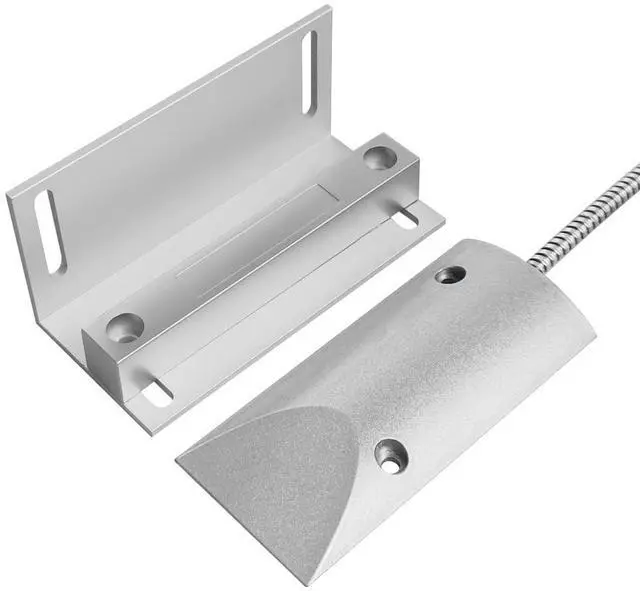

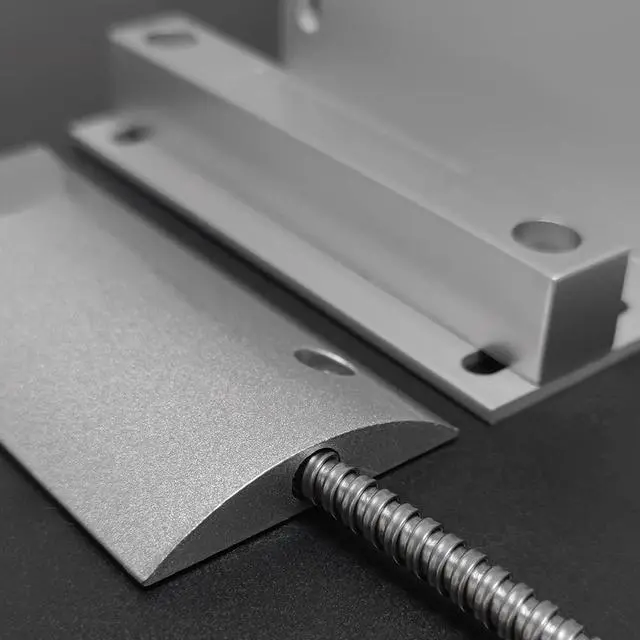

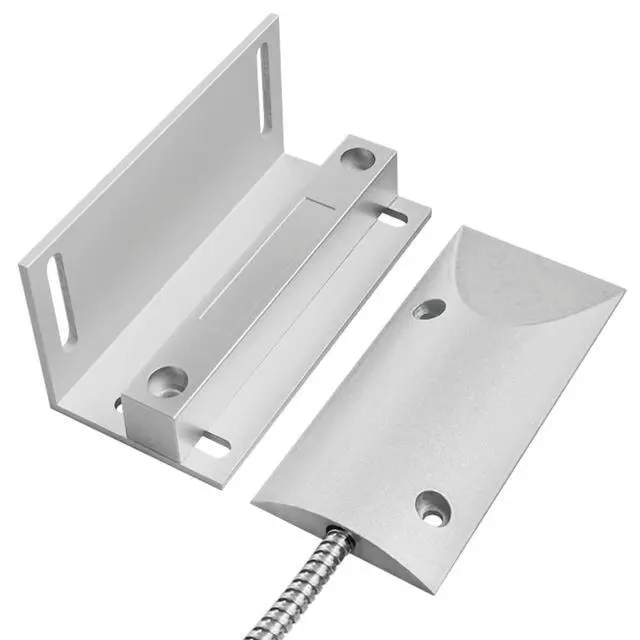

Magnetic Switch Alarm Sensor Overhead Garage Door Contacts with L Bracket
- Alloy zinc material case make it quite sturdy
- Metal tube protection
- Epoxy sealed water proof

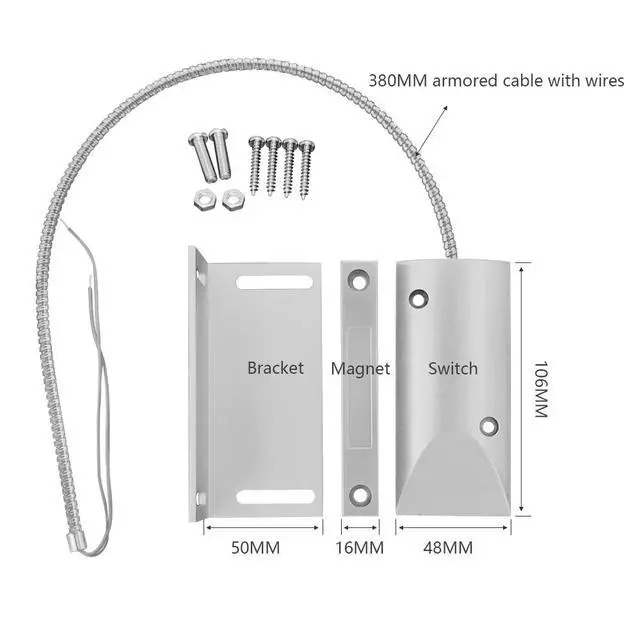

- Adjustable with L bracket to fit most door-channel widths and easy installation
- Used for overhead doors in both industrial and residential situations where a wide gap is present
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

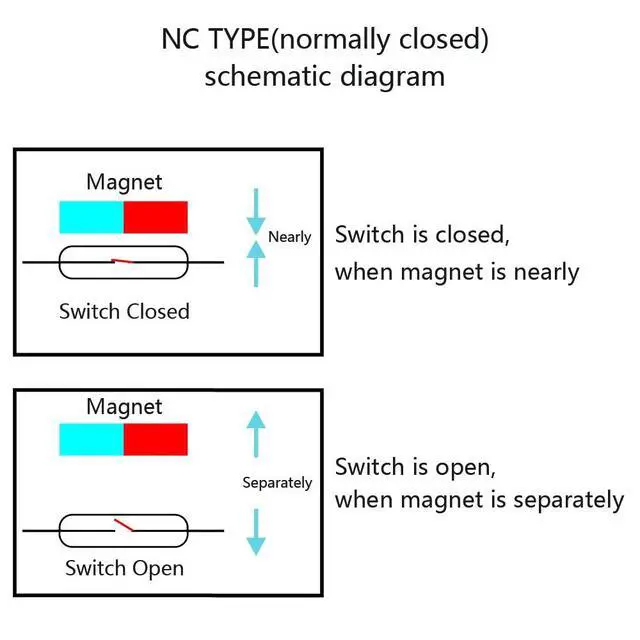

Magnetic contacts is widely used for alarm system(panel) to detect state of door. It consist of a reed switch part and a magnet part . When door closed, reed switch is effected by magnet and turn ON; when door open, reed switch is effected by magnet and turn OFF, trigger alarm.
Contact type : NC (normally closed),switch OFF when door is opened
Switch part material: alloy zinc
L bracket Material : Aluminum
Color: silver-grey
Pack: 1pairs/bag
Operation gap : 50mm
Mounting type : Surface mounting
Max. voltage : 28V DC
Max. current : 0.2A
Max. load : 3W
