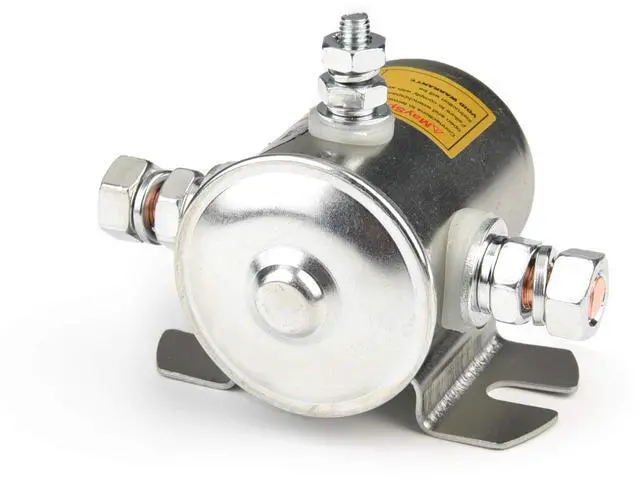

Name: Max Transient 200A Trombetta 12V Solenoid Relay 3 Terminal Heavy Duty Winch Marine 24106 SPST 12 Volt Solenoid
Brand: Generic Brand
SKU: 35P-00B9-00020
Price: 33.99 USD
Availability: InStock

Max Transient 200A Trombetta 12V Solenoid Relay 3 Terminal Heavy Duty Winch Marine 24106 SPST 12 Volt Solenoid

Contacts:Normally Open (NO)/ Flat Base Metal Case / 10-32 Terminal
3 Pole Battery Isolation Solenoid, 12VDC With 2 Copper Point,Housing plated Steel Case / 180Flat mounting bracket./ Mounting holes: 5/16 x 19/32, 2-13/64 on centers.

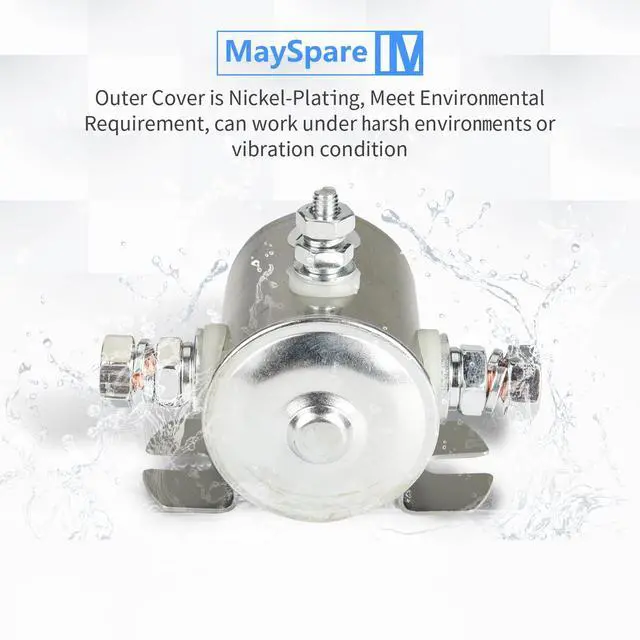

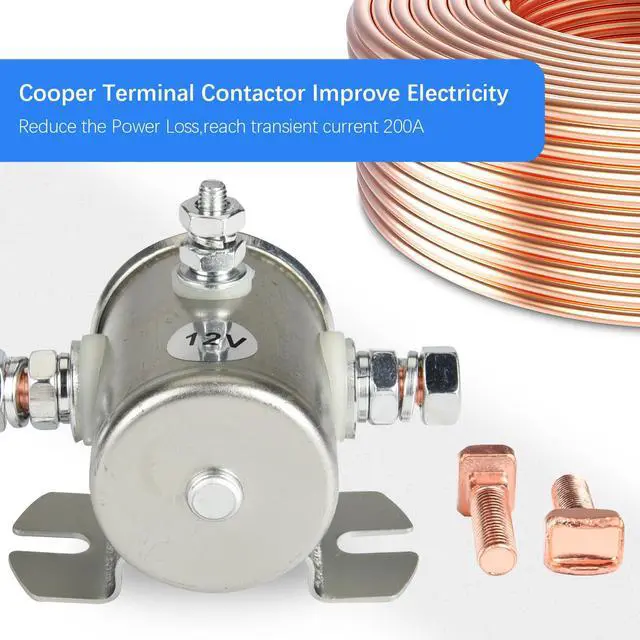

Our Coil Roll is using 180 Copper. Max Current Above 200amp/ Rate Current: 100A / Our Cover is Environmental Plating,Sealed Unit Protects Solenoid From The Elements Helping Prevent Corrosion
if be Continuous Duty,can work 5 minutes under 150Amp, but NEED BREAK otherwise will be too hot to burned or fired
Note:It is a starter solenoid, work in the process of started. recommend hold time is 5 minutes, must need a cool rest time for the next start. /If u need a long working one, pls note us.

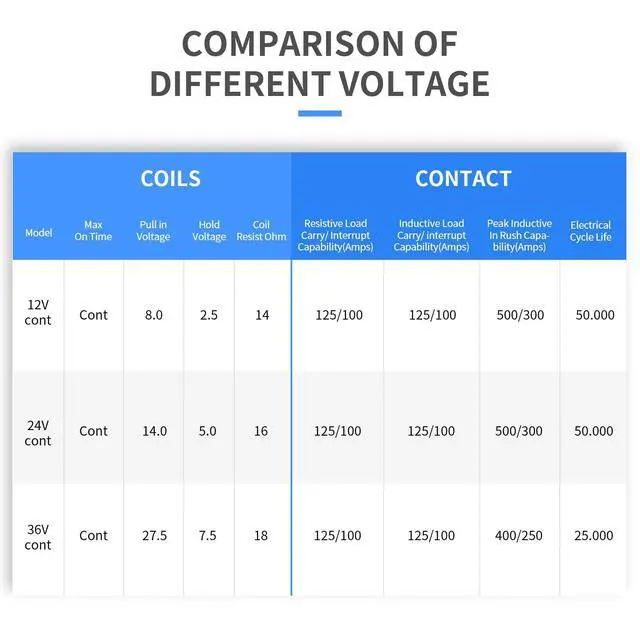

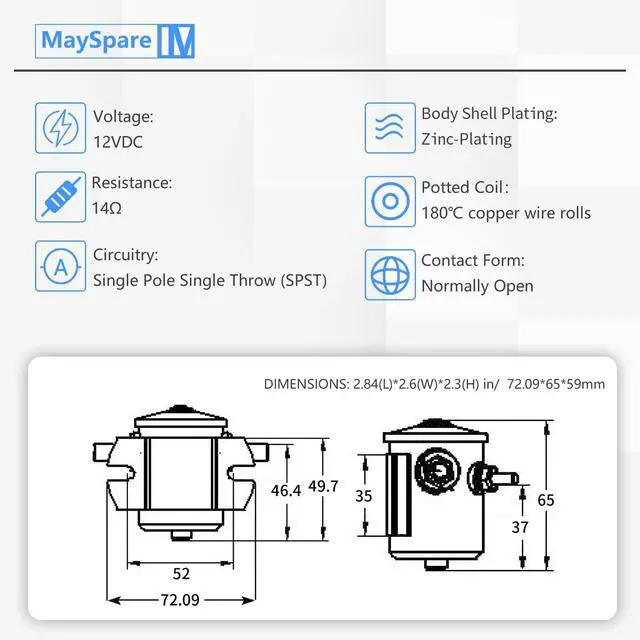

Specifications

Voltage	12VDC
Resistance	14O
Capacity	10.2W
Max Transient Flash Current	200Amp

Continuous Working Current	Under 80Amp
Contact Studs	5/16 -24 Studs Standard & Long
Bracket mounting	Holes 5/16 x 19/32 2-13/64 on Center

How to Install The solenoid Relay

MAYSPARE

MAYSPARE was established in 2017 and is an new star in the accessories of Garden,Yacht RV and Car Field. We focus on proving 100% high quality parts and excellent after-sales service.
Our mission is to enrich your driving experience and improve the safety. Promise you will never be stuck, you can entirely enjoy the speed, leisure time and convenient life.
Golf Cart Relay
Lawn Mower Relay
Outboard Motors Relay
