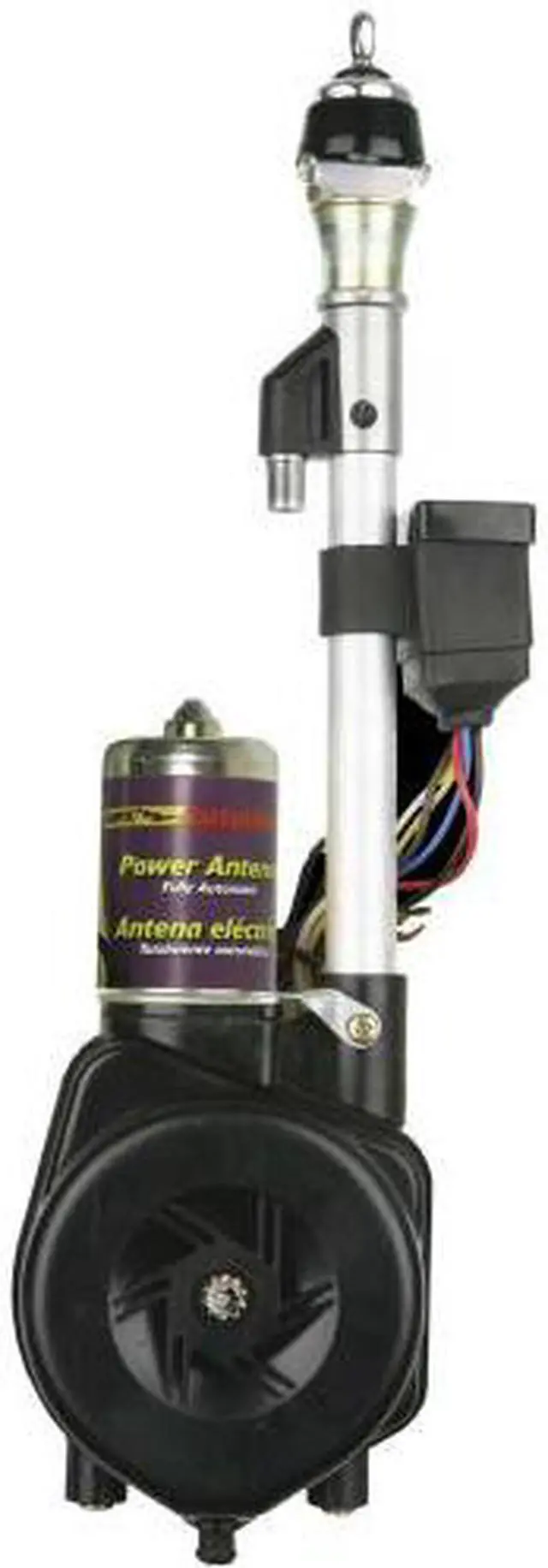

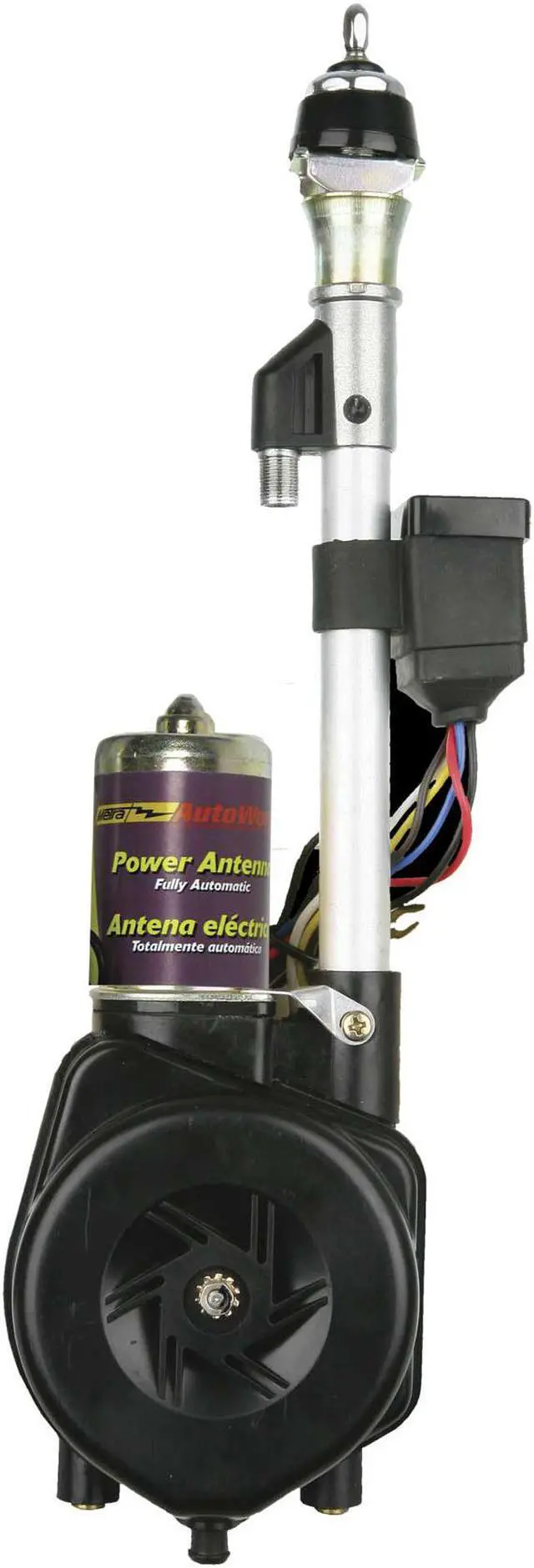

Metra 44-PW20 Universal Power Antenna for Select 1990-2011 Fender Mount Antenna

Automatically extends when radio is turned on and retracts when radio is turned off

Easily mounts in most domestic and import vehicles

Two antenna bottom mounting points are provided for easy support strap attachment

Drain tub included for trunk installation

All parts and installation instruction are included for most installations

Can mount on front or rear fender location

May require an extension cable (44-PWEC 157) depending on vehicle or an antenna adaptor cable for many 1988-up GM, 1995-up Ford & some import vehicles

Combination male/female spade terminal for "no solder" fuse block connection

Easy two wire hookup connects directly to car audio switched antenna wire and unswitched power wire with bullet terminals

All wires and cables connect at the antenna for easy replacement of factory antenna

Silent running eight-pole high torque motor for all weather operation

Limit switch and special clutch design protects motor from overheating due to obstructions, freezing or external interference

Special design allows mast to be operate by hand

Mast can be raised or lowered without motor running

Mast is replaceable from the top without removing antenna from the car

Custom mounting bases included (Fixed 3 degrees angle; Fixed 8 degrees angle; Fixed 15 degrees angle; Fixed 23 degrees angle; Fixed 30 degrees angle; When fully retracted mast is flush with top of base)

Compatible with various vehicles that have an OEM power antenna mounted either on the Front Fender or Rear Fender



Specifications:

Under Fender Requirement: 11-1/2" (29cm)

Cable Length: 55" (140cm) - Detachable

Mast Length: 31" (70cm)

Mast: 4 Section - Replaceable

Mast Material: Stainless Steel

Operating Voltage: 11-16 VDC

Maximum Current: 5 Amps

Capacitance: 80pf
