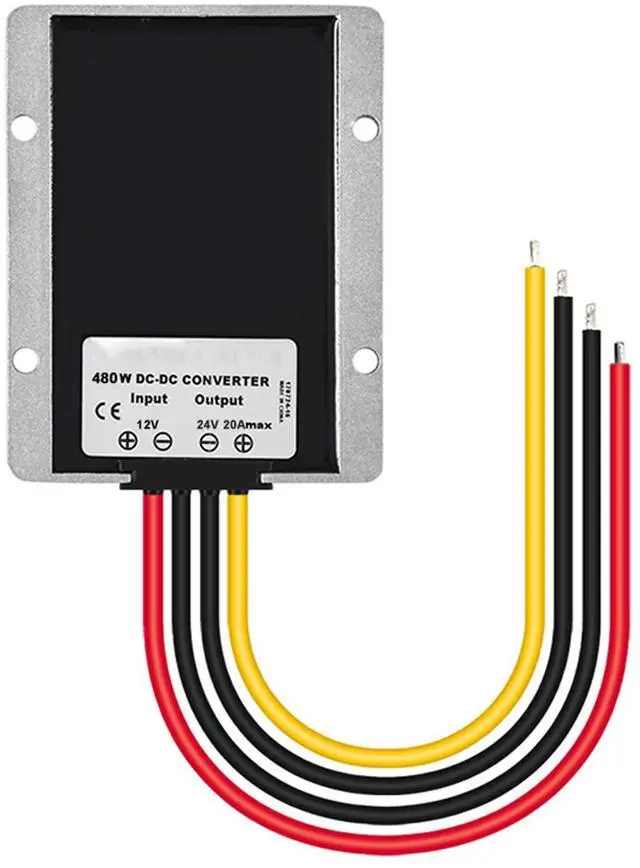

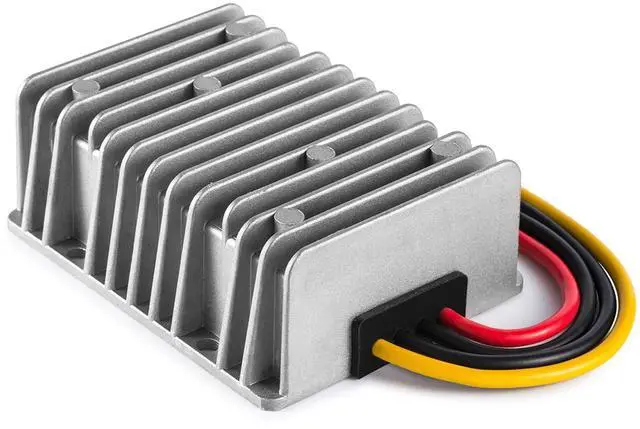

MGGi Waterproof DC/DC Converter 12V Step Up to 24V, Boost Converter 20A 480W Voltage Regulator, Power Adapter Voltage Booster,Power Supply Module Boost Transformer for Car Truck Vehicle Boat

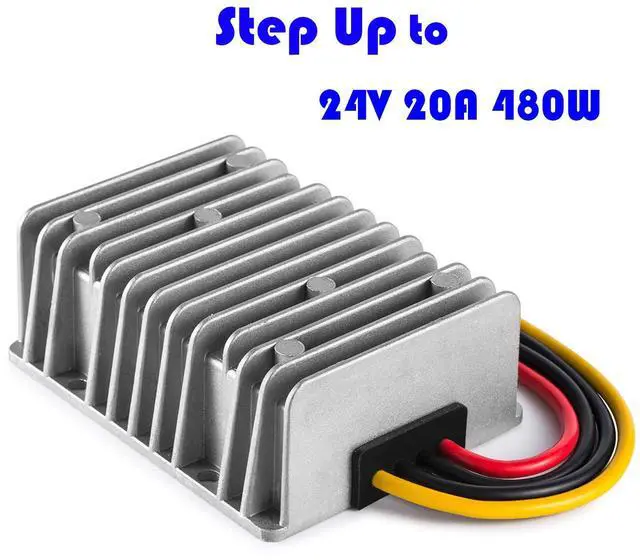

- Wide DC boost converter regulator DC 12V to DC 24V 20A 480W - input voltage range DC 11-16V; output voltage: DC 24V(non-adjustable); output current: 20A(max.); output power 480W.
- 5 Safty Protections - Over-load, Over-current, Over-temperature, Short-circuit, Over-voltage; Auto-recovery when device is back to normal operating, over 100,000 hours lifetime.
- Wide application - fits for car, truck, vehicle, boat, electric bike, bus, cmb, club cart, LED strip lights, display moniter screen of taxi, car radio audio device, LCD TV, DVD, IP camera, speaker system, GPS, air-conditioner, electric fan and any 24v DC appliances. (Note: Never connect to solar panel or wind turbine. Never charge the battery.)

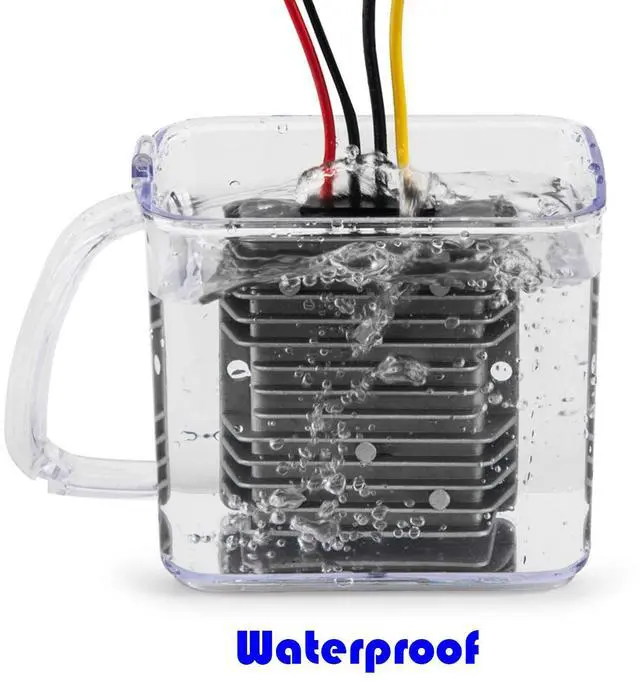

- Waterproof and portable - with aluminum alloy shell, silicone gel package, IP68 waterproof rating, 100% waterproof , can work in rain; small and portable, easy to install.
- High and stable conversion efficiency - synchronization rectification technology-multiple intelligent protection function. Die-cast aluminum shell, expoxy potting, cooling by free air convection. High conversion efficiency up to 96%. 100% full rated power and stable output voltage.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

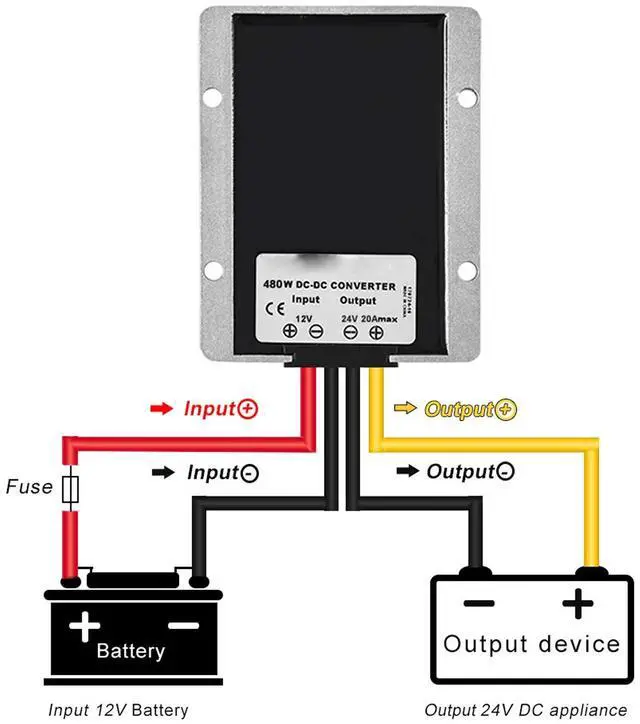

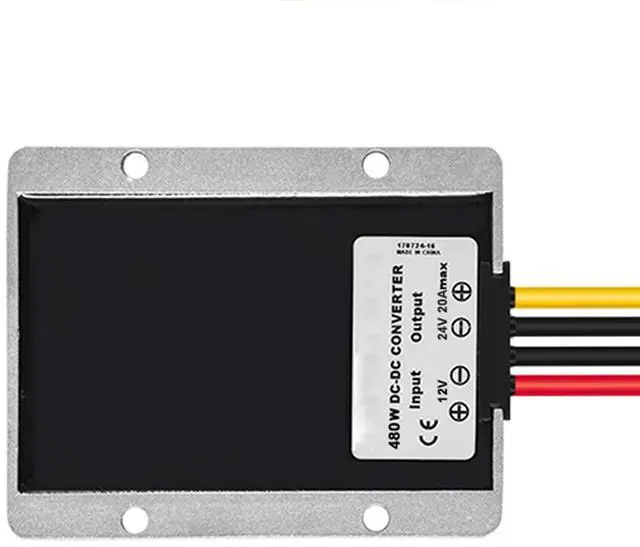

Wiring: OUTPUT+ to LOAD+, OUTPUT- to LOAD-; INPUT+ to BAT+, INPUT- to BAT-
Note:
Never connect to solar panel, PWM/MPPT charge controller, inverter or wind turbine.
Never charge the battery. Keep good air convection.
Never reverse the polarity.
Use the enough big cable to avoid the voltage drop. Specifications:
1. 100% full power and stable current output, non-isolated module.
2. Industry grade DC 12V to DC 24V 20A 480W step up converter, efficiency up to 95%.
3. Die-cast aluminum shell, epoxy potting, cooling by free air convection; Waterproof level IP68 and anti-shock protection.
4. Protections: Over-current, Over-voltage, Over-temperature, Over-load and Short-circuit, auto-recovery when device is back to normal operating.
5. Certificates: CE/RoHS, 1 year warranty, lifetime up to 100,000 hours.
Input Rated Voltage: 12V DC
Input Voltage Range: 10V-16 DC
Output voltage: 24V DC
Output Current: 20 Amp
Output Rated Power: 480W
Efficiency: 97% (half load); 95% (full load)
Ripple: 200mVp
Line Regulation: ±0.2%
Load Regulation: ±0.2%
Voltage Accuracy: ±1.5%
Enclosures: IP68
Case Operating Temperature: -40~85°C
Weight: 550gNote:
1.Can not used long time under the max listed load power. Choose the twice bigger ampere than your machine need is perfect.Because it can avoid long time max load workenhance the converter's work lifetime
2.Please ensure enough input voltage and power so that the module will output enough voltage and power so that the module will output enough voltage and power.
Product information
| Brand | MGGi |
| Color | Aluminum |
| Input Voltage | 12 Volts |

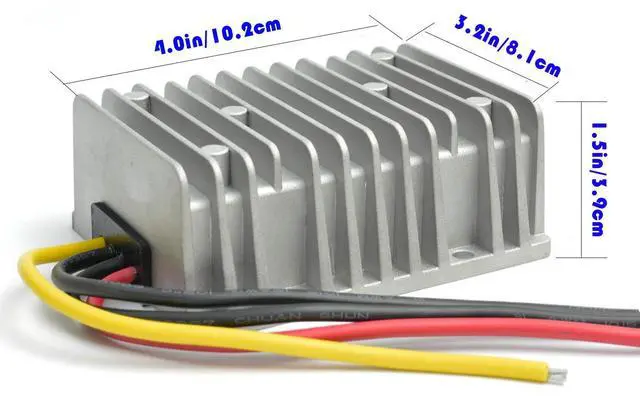

| Item dimensions L x W x H | 4 x 3.2 x 1.5 inches |
| Output Voltage | 24 Volts |
| Product Dimensions | 4 x 3.2 x 1.5 inches |
| Item Weight | 1.12 pounds |
| Item model number | 308075960886 |
| Date First Available | November 15, 2019 |
| Manufacturer | XingHua |
