Mikrotik SXTsq Lite2 RBSXTsq2nD Low-cost small-size 10dBi 2.4GHz dual chain integrated CPE/Backbone

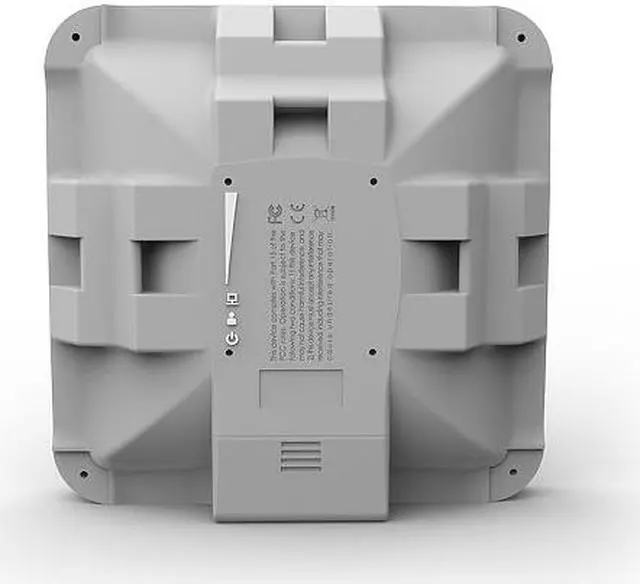

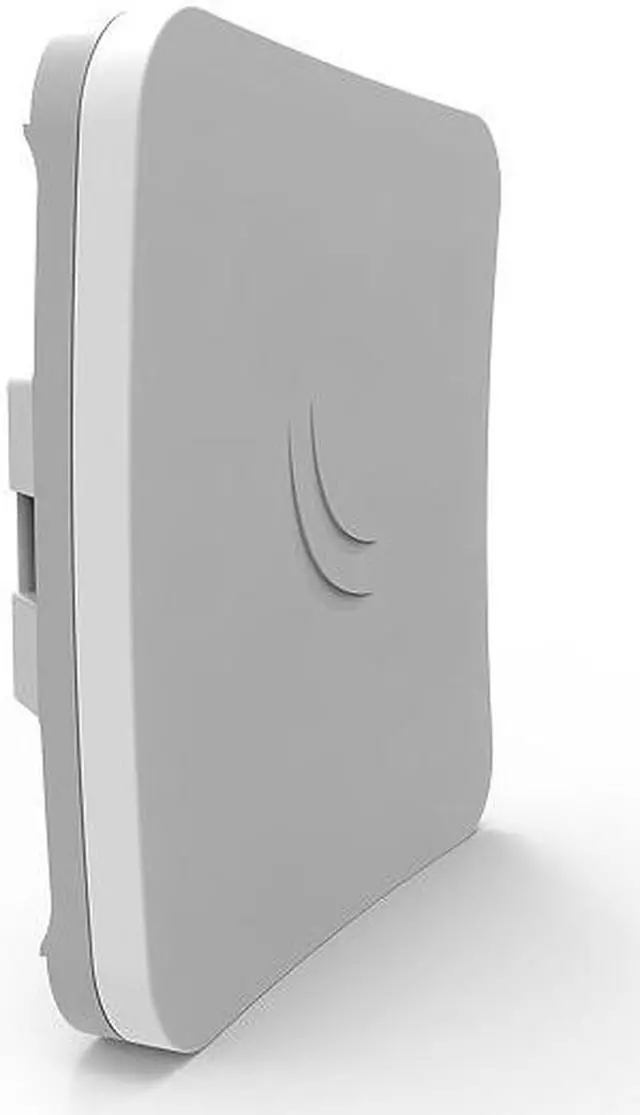

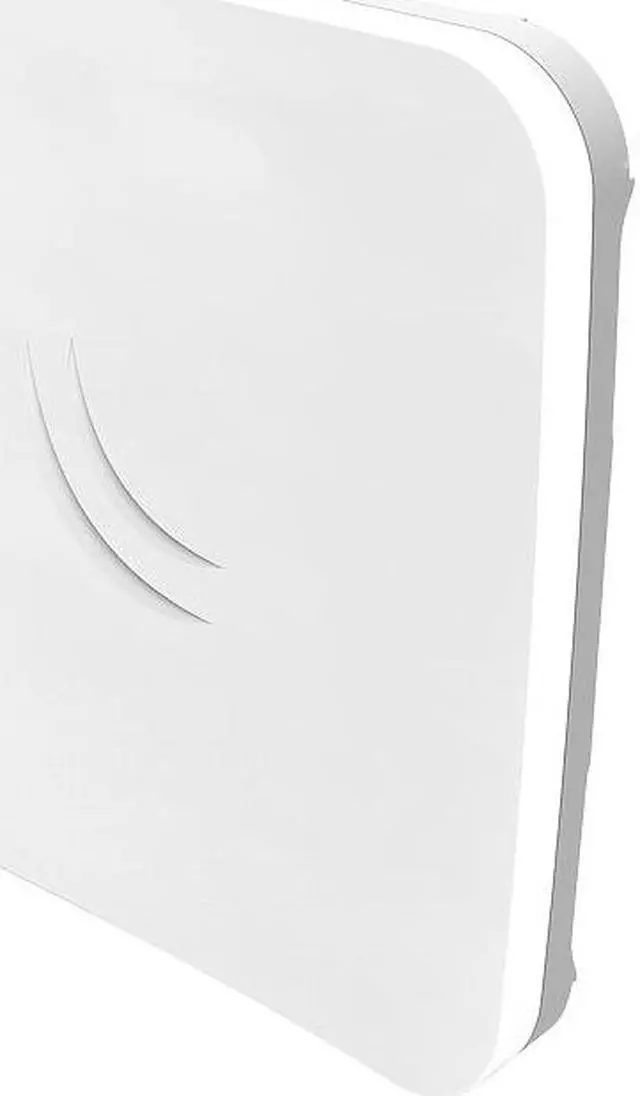

MikroTik RouterBOARD RBSXTsq2nD MikroTik SXTsq Lite2 CPE for 2.4G hz Integrated Antenna The SXTsq Lite2 is a compact and lightweight outdoor wireless device with an integrated antenna. Perfect for point-to-point links or as a CPE unit. It is compact, weatherproof and easy to mount. The SXTsq Lite2 retains a 10 dBi antenna like the SXT Lite2, our previous model, yet the antenna design has been improved and the physical size has been dramatically reduced - the SXTsq is two times thinner. The enclosure includes slots for directly attaching a hose clamp mount in three different mounting places, with ability to be mounted on horizontal railings.

The device includes one 10/100 Mbit Ethernet port. There is also an easily accessilble grounding connection to protect it against lightning. Specifications RBSXTsq2nD Product code RBSXTsq2nD CPU QCA9533 CPU nominal frequency 650 MHz CPU core count 1 Size of RAM 64 MB Storage 16 MB Flash 10/100 Ethernet ports 1 Wireless bands 2.4 GHz radio Wireless regulations Specific frequency range may be limited by country regulations Operating frequency 2412 - 2484 MHz Protocols 802.11 b/g/n Chains 2 Antenna gain 10 dBi Antenna beam width 60° Wireless chip model QCA9533 PoE in Yes Supported input voltage 10 V - 30 V, Passive PoE Dimensions 129 x 129 x 34 mm; package: 255 x 180 x 45 mm
Weight Unit: 295
g; package: 492 g Operating temperature -40 to 70° C License level 3 Operating System RouterOS Max Power consumption 5 W
