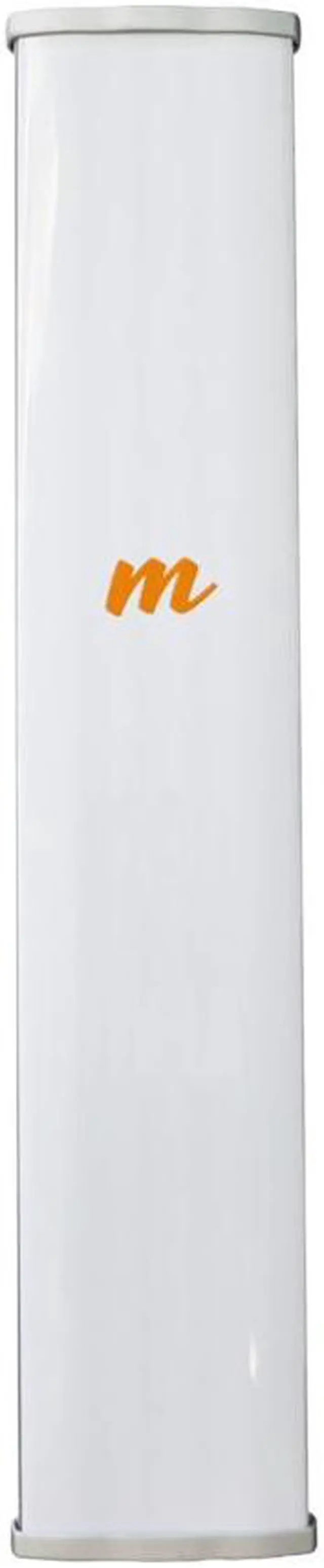

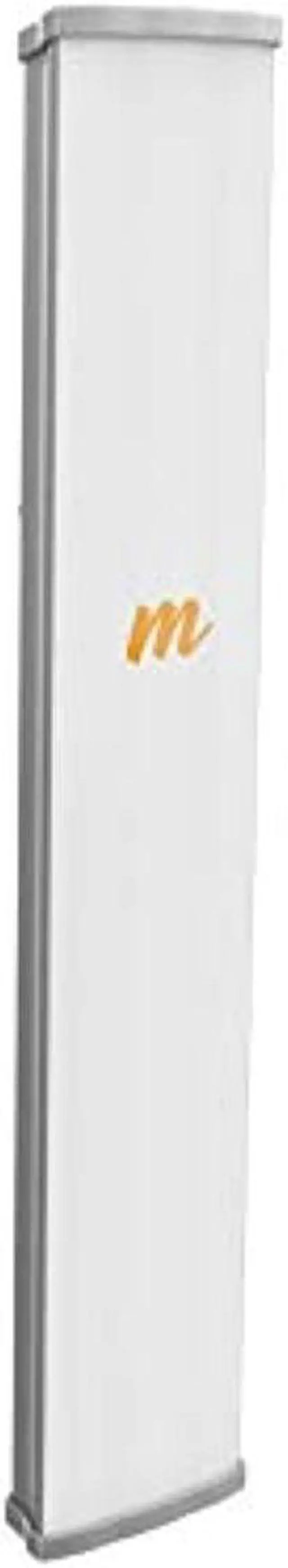

Mimosa Networks - N5-45X4 - 45 Sector Antenna MIMO 4x4, 4.9 - 6.4 GHz, IP55, 22 dBi Gain, 4 N-Female Connectors,

Mimosa N5-45x4 is the industrys first sector antenna to deliver the best of both worlds incredible noise rejection and long-distance performance, with wideband 4.9 GHz 6.4 GHz operation for fixed wireless broadband. This 4 port, dual-slant polarization 45° sector is designed for use with the Mimosa A5c 4x4 MIMO radio, delivering gain enhancing beamforming for the best possible channel reuse, range and noise rejection at collocation and tower sites.
Product Features: Industry-Leading Front-to-Back Radio for 2x Spectrum Reuse World-Class Noise Rejection Beamformed High-Gain for Long Distances Wideband 4.96. 4 GHz Sector
Antenna

Specifications

:
Gain: 22 dBi (+3 dBi from beamforming)
Polarization: Dual-slant 45°
Azimuth Beamwidth (3 dB): 42°
Elevation Beamwidth (3 db): 9°
Electrical Downtilt: 2°
Front-to-Back Ratio (min): 43 dB
Cross-Polar Isolation: >30 dB
Port-to-Port Isolation: >10 dB
Impedance: 50 Max
Input Power: 30 dBm Physical

Specifications

:
Dimensions:
Height: 734 mm ( 28.88 )
Width: 143 mm ( 6.63 )
Depth: 76 mm ( 3.0 ) including connectors
Shipping Box Dimensions:
Height: 981 mm ( 38.62 )
Width: 166 mm ( 6.53 )
Length: 105 mm ( 4.13 )
Weight: 4.08 kg ( 9.0 lbs)
RF Connectors: 4 N-type female (includes four 1 meter LMR 240 Type-N to Type-N cables) RF
Connectors Position: Back of antenna, near center
Enclosure Characteristics: Outdoor, UV stabilized, engineered polymer
Mounting: Galvanized steel, dual attached pole mount with 20° mechanical up or down tilt. Two mounting brackets included. For pole sizes, maximum is 3.5 (90 mm) and minimum is 1.5 (38 mm).
Wind Survivability: 200 km/h (125 mph)
Wind Loading: 4.77 kg @ 160 km/h ( 10.49 lbs @ 100 mph)
Environmental

Specifications

: Outdoor Ingress
Protection Rating: IP55
Operating Temperature: -40°C to +55°C (-40°F to 131°F)
Operating Humidity: 5 to 100% condensing
Operating Altitude: 4, 420 m (14, 500) max
Shock & Vibration: ETS 300-019-2-4 class 4M5
RoHS Compliance: Yes
Product Includes: (1) N5-45x4 Sector Antenna (2) Mounting Brackets (1) User Manual
