What wired network ports are built into the MS-A2 mini workstation?

It includes 1 x 2.5Gb LAN port with a Realtek RTL8125 controller, 1 x 2.5Gb LAN port with an Intel I226-V controller, and 2 x 10G SFP+ ports with Intel X710 controllers.

Does this mini workstation support installing a U.2 enterprise SSD, and what is the maximum capacity mentioned?

Yes. The specifications list one M.2 2280/U.2 NVMe SSD slot that supports U.2 enterprise SSDs, with up to 15 TB capacity.

COMING SOON

$1,649^.99

Free 30-day Returns

Limit 99999 per customer.

Sold by Newegg

Shipped by Newegg

Price alert

Add to Wish List

Main image of MINISFORUM Mini PC MS-A2 Mini Workstation AMD Ryzen 9 9955HX include 96GB DDR5 memory Without SSD/OS Desktop Computer AMD Radeon 610M Graphics , HDMI|2X USB-C Output, 2x2.5G LAN Port|10G SFP+ Port

Alt view image 2 of 7 - MINISFORUM Mini PC MS-A2 Mini Workstation AMD Ryzen 9 9955HX include 96GB DDR5 memory Without SSD/OS Desktop Computer AMD Radeon 610M Graphics , HDMI|2X USB-C Output, 2x2.5G LAN Port|10G SFP+ Port

Alt view image 3 of 7 - MINISFORUM Mini PC MS-A2 Mini Workstation AMD Ryzen 9 9955HX include 96GB DDR5 memory Without SSD/OS Desktop Computer AMD Radeon 610M Graphics , HDMI|2X USB-C Output, 2x2.5G LAN Port|10G SFP+ Port

Alt view image 4 of 7 - MINISFORUM Mini PC MS-A2 Mini Workstation AMD Ryzen 9 9955HX include 96GB DDR5 memory Without SSD/OS Desktop Computer AMD Radeon 610M Graphics , HDMI|2X USB-C Output, 2x2.5G LAN Port|10G SFP+ Port

Alt view image 5 of 7 - MINISFORUM Mini PC MS-A2 Mini Workstation AMD Ryzen 9 9955HX include 96GB DDR5 memory Without SSD/OS Desktop Computer AMD Radeon 610M Graphics , HDMI|2X USB-C Output, 2x2.5G LAN Port|10G SFP+ Port

Alt view image 6 of 7 - MINISFORUM Mini PC MS-A2 Mini Workstation AMD Ryzen 9 9955HX include 96GB DDR5 memory Without SSD/OS Desktop Computer AMD Radeon 610M Graphics , HDMI|2X USB-C Output, 2x2.5G LAN Port|10G SFP+ Port

Alt view image 7 of 7 - MINISFORUM Mini PC MS-A2 Mini Workstation AMD Ryzen 9 9955HX include 96GB DDR5 memory Without SSD/OS Desktop Computer AMD Radeon 610M Graphics , HDMI|2X USB-C Output, 2x2.5G LAN Port|10G SFP+ Port

Shop All Minisforum Products

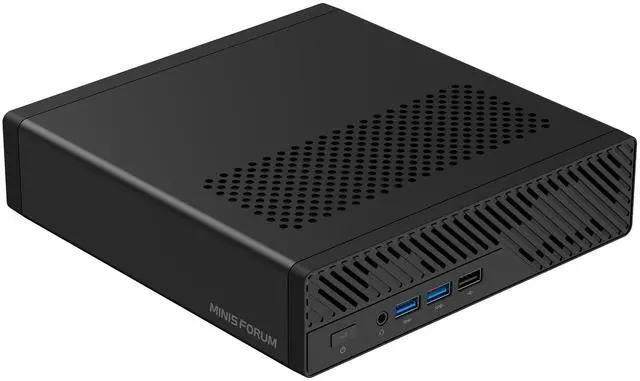

MINISFORUM Mini PC MS-A2 Mini Workstation AMD Ryzen 9 9955HX include 96GB DDR5 memory Without SSD/OS Desktop Computer AMD Radeon 610M Graphics , HDMI|2X USB-C Output, 2x2.5G LAN Port|10G SFP+ Port

Be the first to review this product...

Memory Type: 96GB SO-DIMM DDR5 5600

64GB SO-DIMM DDR5 5600
96GB SO-DIMM DDR5 5600

Powerful Processor: The MS-A2 mini workstation adopts AMD Ryzen 9 9955HX CPU (16C/32T, up to 5.4GHz) and integrated AMD Radeon 610M graphics at 2.2GHz. It provides powerful computing capability, ensuring smooth operation and reliable multitasking for daily office, professional computing and heavy workloads.

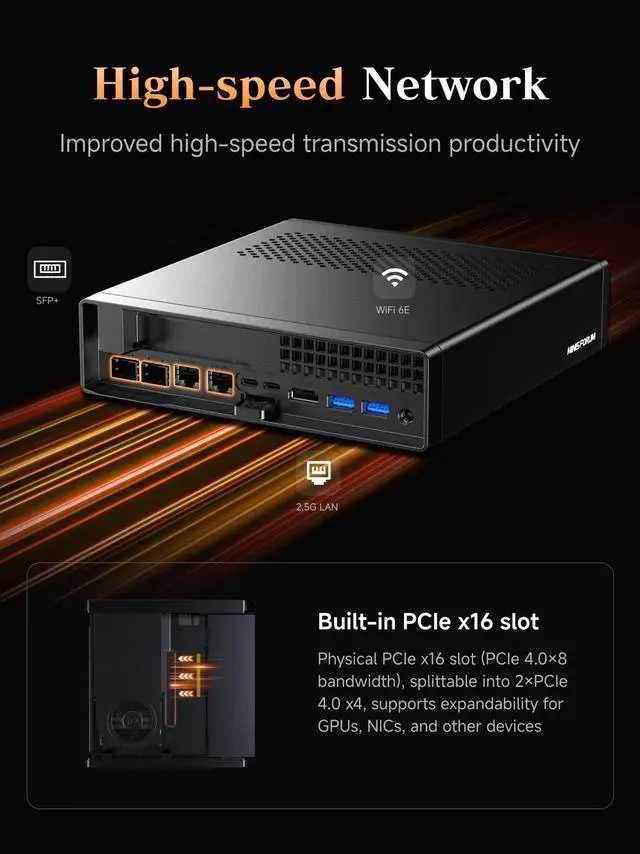

High-Speed Network: Equipped with dual 10G SFP+ ports supporting 10Gbps transmission and link aggregation, it adapts to high-speed LAN, network storage and server connections. Dual 2.5G RJ45 ports deliver fast and stable network speed to meet daily home and office high-efficiency data transmission needs.

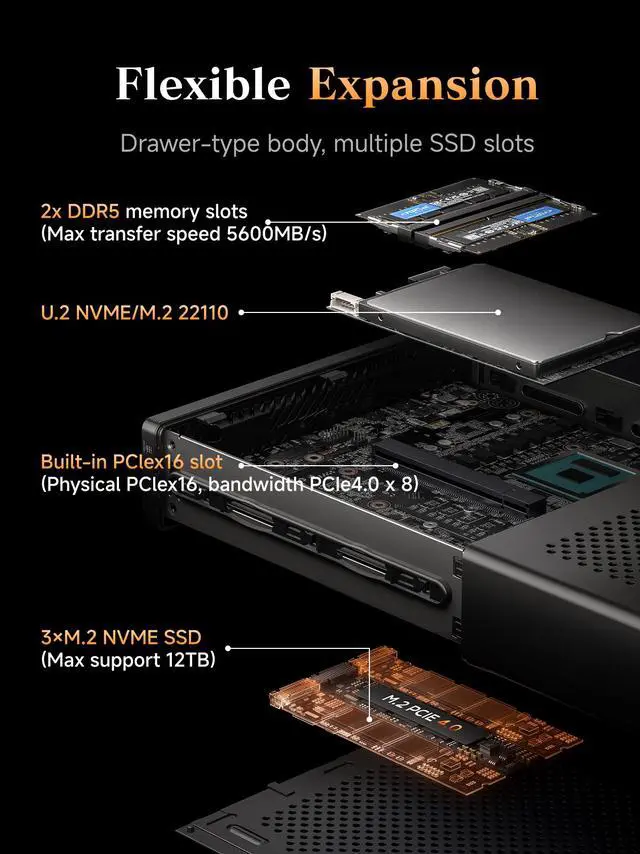

Excellent Upgradeability: It supports dual DDR5-5600 SODIMM slots (max 96GB RAM). The PCIe 4.0 M.2 2280 slot supports RAID0/RAID1 and U.2 enterprise SSDs with up to 15.36TB storage. Two additional M.2 NVMe slots accommodate 2280/22110 SSDs for running large software and storing massive media files effortlessly.
Triple 8K Video Output: Featuring one 8K@60Hz HDMI port and two 8K@60Hz USB-C (DP Alt) ports, it supports multi-monitor simultaneous output to enhance workflow efficiency. It suits CAD design, scientific calculation, animation, video post-production, digital signage and securities trading scenarios.
Package Contents: The package includes MS-A2 mini workstation, power adapter, power cord, HDMI cable and user manual.

Overview

Specs

Reviews

See all Q & A

Any questions? Our AI mode will help you find out quickly.

Try me now

MINISFORUM Mini PC MS-A2 Mini Workstation

Brand	MINISFORUM
Model	MS-A2-9955HX
Color	Black

CPU Type	AMD Ryzen 9 9955HX
CPU Cores	16-Core
CPU Feature	16 cores, 32 threads, max. 5.4GHz

Memory installed	96GB
Memory slot	2 x 262Pin SO-DIMM
Memory Type Supported	DDR5 5600
Max Memory Supported	96GB
Dual Channel Memory Supported	Yes

Storage Installed	No Storage
M.2 Slot	1 x M.2 2280/U.2 NVME SSD (Up to 15 TB U.2, PCIe 4.0x4) 2 x M.2 2280/22110 NVME SSD (Up to 4 TB/Slot, default PCIe 3.0 x4, up to PCIe 4.0 x4)

LAN	Realtek RTL8125 + Intel I226-V + 2 x Intel X710
Max LAN Speed	10Gbps
Wireless LAN	802.11ax
WiFi Generation	Wi-Fi 6E
Bluetooth	Bluetooth 5.2

MINISFORUM Mini PC MS-A2 Mini Workstation AMD Ryzen 9 9955HX include 96GB DDR5 memory Without SSD/OS Desktop Computer AMD Radeon 610M Graphics , HDMI|2X USB-C Output, 2x2.5G LAN Port|10G SFP+ Port

Learn more about the minisforum MS-A2-9955HX

Customer Reviews of the minisforum MS-A2-9955HX

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

Return Policies

Manufacturer Contact Info

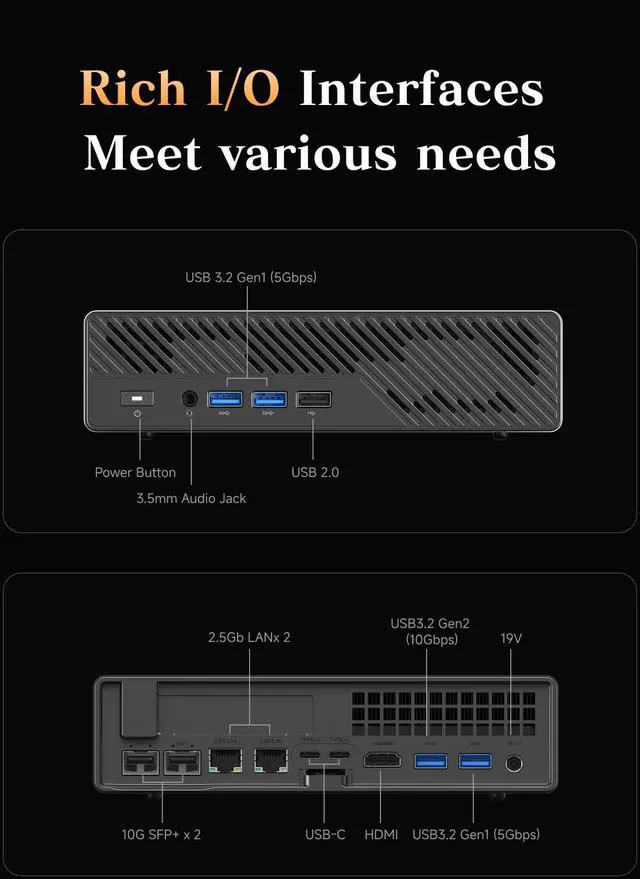

Front USB	2 x USB 3.2 Gen1 (5Gbps) 1 x USB 2.0
Front Audio Ports	1 x 3.5 mm combo jack

HDMI	1 x HDMI 2.1
Rear USB	1 x USB3.2 Gen2 (10Gbps) 1 x USB3.2 Gen1 (5Gbps) 2 x USB-C (USB3.2 Gen2, 10Gbps,Alt DP2.0)
RJ45	1 x 2.5Gb LAN(RJ45,Realtek RTL8125) 1 x 2.5Gb LAN(RJ45,Intel I226-V) 2 x 10G SFP+(Intel X710)

Physical SPEC
Dimensions	196 x 189 x 48mm
Weight	1.4 kg
