The Intel Core i7-13700H in the Venus Series NPB7 is a CPU belonging to Intel's 13th generation Raptor Lake-H series, offering 14 cores, 20 threads, and 24 MB of tertiary cache. The maximum clock speed reaches 5 GHz.
Built-in Intel Iris Xe Graphics eligible, the maximum frequency reaches 1.50 GHz. The excellent performance can handle even the most demanding tasks.

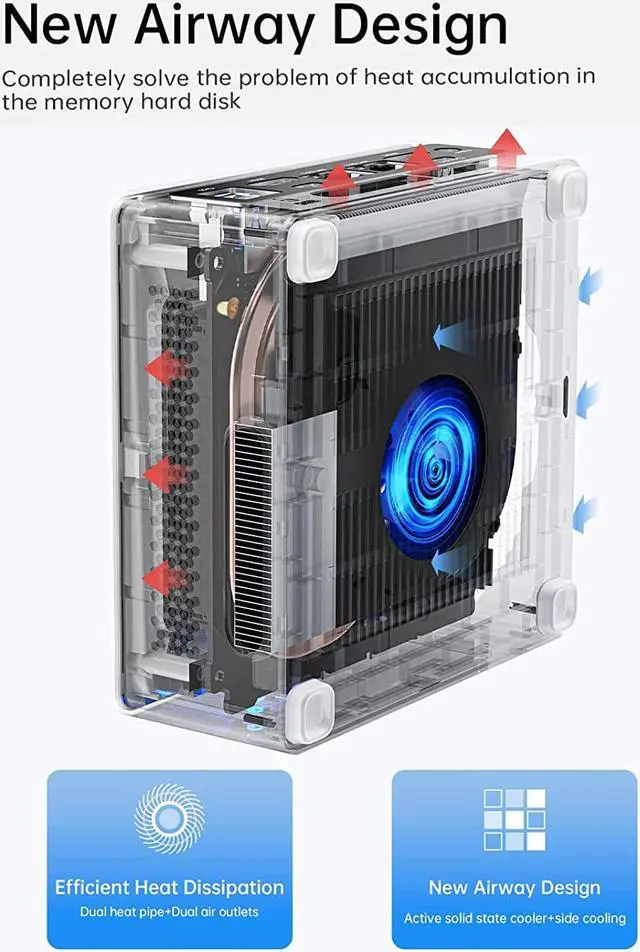

Two air vents in the case provide flowing airflow, and two copper heat pipes are used to improve heat dissipation and cooling efficiency.
New SSD heat sink + side cooling vents enhance heat dissipation for memory and SSD.
Note: Barebone kits are not equipped with SSD heat sinks.
With 2 HDMI (4K@60Hz) and 2 USB4 (4K@60Hz), it can support 4 screens simultaneously. It can drive up to four independent displays, expanding your work and making you more efficient and comfortable in your productivity. It is also useful for live game distribution, content creation and editing, etc.
| DDR5 Dual Channel Memory | Up to 32GB and 5200MHz |
|---|---|
| M.2 2280 NVMe PCIe4.0 SSD | Up to 2 TB |
| 2.5-inch SATA 3.0 HDD | 6Gb/s |

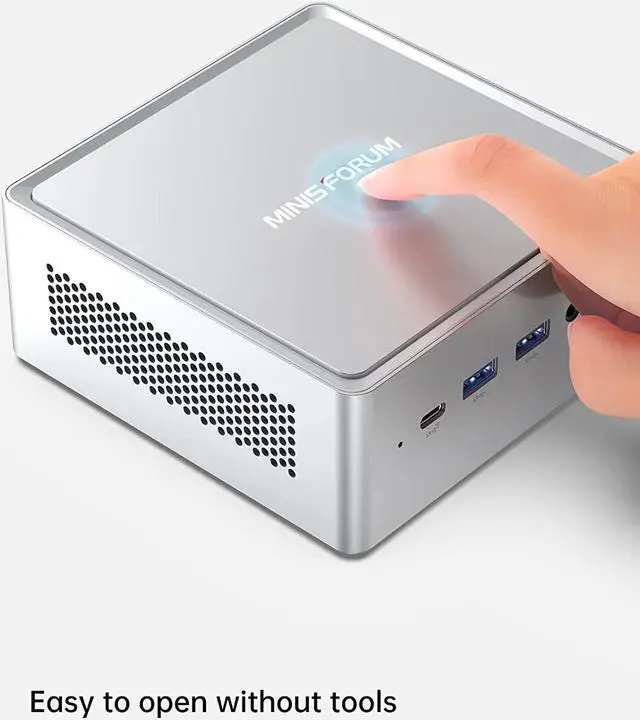

| No tool needed to open the cover | Work, Stream, and Gaming Anywhere |
| Products | |||
|---|---|---|---|
| Processor | Intel® Core i7-13700H Processor, 14 Cores/20 Threads (24M Cache, up to 5.0 GHz) | Intel® Core i5-13500H Processor, 12 Cores/16 Threads (18M Cache, up to 4.7 GHz) | Intel® Core i7-12650H Processor, 10 Cores/16 Threads (24M Cache, up to 4.70 GHz) |
| Graphics | Intel® Iris® Xe Graphics eligible (Graphics Frequency 1.50 GHz) | Intel® Iris® Xe Graphics eligible (Graphics Frequency 1.45 GHz) | Intel® UHD Graphics for 12th Gen Intel® Processors (Graphics Frequency 1.40 GHz) |
| Memory | DDR5 Dual channel (SODIMM Slots×2, up to 32GB) | DDR5 Dual channel (SODIMM Slots×2, up to 32GB) | DDR4 Dual channel (SODIMM Slots×2, up to 32GB) |
| Storage | M.2 2280 PCIe4.0 SSD ×1 (up to 2TB) | M.2 2280 PCIe4.0 SSD ×1 (up to 2TB) | M.2 2280 PCIe4.0 SSD ×1 (up to 2TB) |
| Storage Expansion | 2.5-inch SATA HDD Slot ×1 (SATA 3.0, 6.0Gb/s) | 2.5-inch SATA HDD Slot ×1 (SATA 3.0, 6.0Gb/s) | 2.5-inch SATA HDD Slot ×1 (SATA 3.0, 6.0Gb/s) |
| Wireless Connectivity | M.2 2230 WIFI Support (Wi-Fi 6E BlueTooth 5.2) | M.2 2230 WIFI Support (Wi-Fi 6E BlueTooth 5.2) | M.2 2230 WIFI Support (Wi-Fi BlueTooth) |
| Video Output | HDMI (4K@60Hz) ×2 USB4 (8K@60Hz)×2 | HDMI (4K@60Hz) ×2 USB4 (8K@60Hz)×2 | HDMI (4K@60Hz) ×2 USB-C (4K@60Hz) ×2 |
| Audio Output | HDMI ×2 Audio Jack ×1 | HDMI ×2 Audio Jack ×1 | HDMI ×2 3.5mm Combo Jack ×1 |

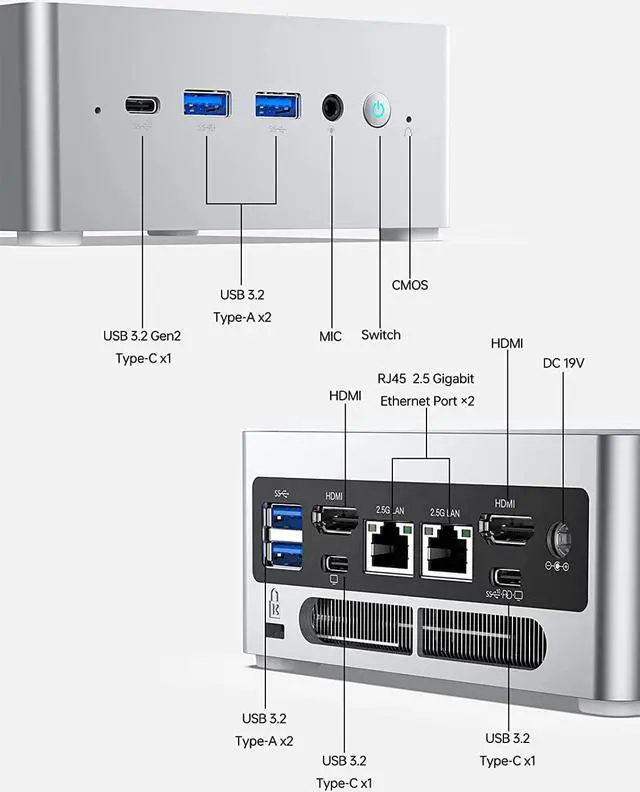

| Ports & Buttons | RJ45 2.5Gigabit Ethernet Port ×2 USB3.2 Gen1 Type-A Port ×2 (Rear) USB4 Port ×2 (Rear) USB3.2 Gen2 Type-A Port ×2 (Front) USB3.2 Gen2 Type-C ×1 (Data Transfer) DC Jack ×1 HDMI ×2 Audio Jack ×1 DMIC ×1 Clear CMOS ×1 | RJ45 2.5Gigabit Ethernet Port ×2 USB3.2 Gen1 Type-A Port ×2 (Rear) USB4 Port ×2 (Rear) USB3.2 Gen2 Type-A Port ×2 (Front) USB3.2 Gen2 Type-C ×1 (Data Transfer) DC Jack ×1 HDMI ×2 Audio Jack ×1 DMIC ×1 Clear CMOS ×1 | RJ45 2.5 Gigabit Ethernet Port ×2 USB3.2 Gen1 Type-C ×1 (Data Transfer, Front) USB3.2 Type-C ×1 (DisplayPort) USB3.2 Type-C ×1 (Alt DP, Data Transfer) USB3.2 Gen2 Type-A ×4 HDMI ×2 DMIC ×1 3.5mm Combo Jack ×1 Clear CMOS ×1 |
| System | Windows 11 | Windows 11 | Windows 11 |
