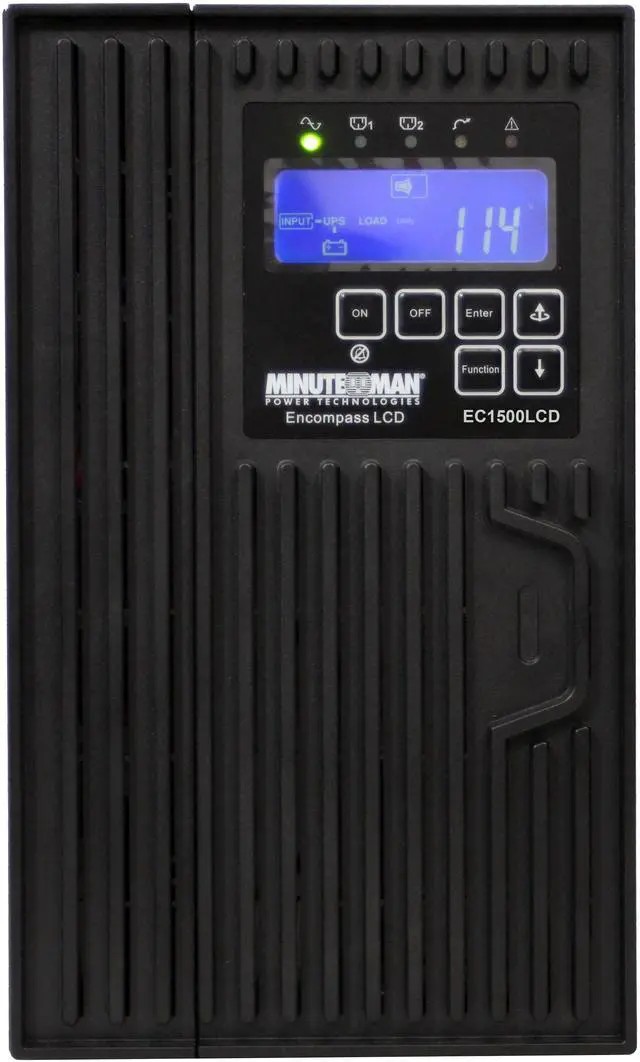

Minuteman EC1500LCD-NC Encompass 1500VA Tower UPS - Tower - 5 Minute Stand-by - Serial Port - 6 x NEMA 5-15R Receptacle(s) - 6 x Battery/Surge Outlet

Be the first to review this product...

Model: EC1500LCD-NC

EC1000LCD
EC1000LCD-NC
EC1000RTXL2U
EC1000RTXL2UNC
EC1500LCD
EC1500LCD-NC
EC1500RT2U
EC1500RT2UNC
EC1500RTXL2U
EC1500RTXL2UNC
EC2000LCD
EC2000LCD-NC
EC2000RTXL2U
EC2000RTXL2UNC
EC3000LCD
EC3000LCD-NC
EC3000RT2U
EC3000RT2UNC
EC3000RTXL2UNC

Double Conversion Online UPS provides optimal and uninterrupted power supply for maximum usability
Up to 5 minute runtime on full load to preserve critical data from power shortage interruptions
1500 VA load capacity - work without any interruption during power outages
NEMA 5-15R receptacle type provides secure, reliable connection with added productivity
Tower form factor is ideal for running internal applications, serving public websites or storing sensitive customer data with maximum productivity
Lead Acid battery chemistry to better suit your requirements with maximum productivity
Prevent critical data loss by staying powered during a blackout with up to 1350 W load capacity

This item is covered under the Manufacturer Only Return Policy.

Specs

Reviews

Any questions? Ask Celeste^SM will help you find out quickly.

Try me now

Learn more about the MINUTEMAN EC1500LCD-NC

Model
Brand	MINUTEMAN
Model	EC1500LCD-NC

Input
International Version	120V
Input Voltage Range	0 V AC - 160 V AC
Input Frequency	50/60Hz +/- 6Hz Auto-sensing
Input Connection	NEMA 5-15P

Output
VA Rating	1500VA
Watts	1350W
Output Voltage	120VAC, User selectable: 110VAC, 127VAC
Output Frequency	50/60Hz +/-0.2Hz unless synchronized to line
Outlets	6
Outlet Type	(6) NEMA 5-15R

Battery
Battery Type	Sealed Lead Acid
Battery Run Time	Half Load: 15 min Full Load: 5 min
Battery Recharge Time	8 hours to 90% from total discharge
Battery Replaceable	BM0077

Details
Interface Port	DB-9, RJ-45
Approvals	cULus (UL1778 5th Edition & CSA 22.2 no. 107.3-14 / R: 2014), FCC Class A, CE certified, RoHS2 (EU Directive 2011/65/EU & 2015/863/EU)

Surge Protection
Surge Energy Rating	254 Joules

Environmental
Temperature	Operating Temperature +32 to +104°F (0 to 40°C) Storage Temperature +14 to +122°F (-10 to +50°C)
Humidity	10% to 90% non-condensing

Dimensions & Weight
Dimensions	17.4" x 6.8" x 11.4"
Weight	48.1 lbs.

Additional Information
First Listed on Newegg	May 23, 2025

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

Limited Warranty period (parts): 3 years
Limited Warranty period (labor): 3 years
Read full details

Return Policies

Contact Manufacturer for Assistance
This item is covered by Newegg.com's Manufacturer Warranty Only Return Policy.
Read full return policy for details.

Manufacturer Contact Info

Manufacturer Product Page
Manufacturer Website
Support Phone: 1-800-238-7272
Support Email: mmsupport@minutemanups.com
Support Website
View other products from MINUTEMAN

The Minuteman EC1500LCD-NC is a 1500VA/1350W double-conversion online tower UPS for users who need continuous backup power for business or IT equipment; it provides six battery-and-surge-protected NEMA 5-15R outlets and up to 5 minutes of runtime at full load.

Recommended For

Small server and network closets that need continuous online power conditioning for servers, switches, or other sensitive equipment, with SNMP-based remote monitoring and management.
Businesses protecting voice-and-data communications or security systems that need a tower UPS for sensitive equipment and brief outages.
Labs or light-industrial sites backing up compatible sensitive equipment, where online power protection matters more than extended battery operation.
Organizations that want to monitor a UPS remotely and coordinate orderly shutdowns across connected systems during power events.

Spec Summary

Attribute	Value
Best For	Backup power for equipment drawing up to 1,350 W, with six NEMA 5-15R outlets and up to 5 minutes of runtime at full load
Power Capacity And Voltage	1500 VA / 1350 W capacity; 120 V version with 0–160 V AC input range and selectable 110, 120, or 127 V AC output
Input And Output Frequency	50/60 Hz auto-sensing input (±6 Hz); 50/60 Hz output (±0.2 Hz unless synchronized to line)
Outlets And Interfaces	Six NEMA 5-15R outlets; NEMA 5-15P input connection; DB-9 and RJ-45 interface ports
Battery And Runtime	Sealed lead-acid battery; 15 minutes at half load and 5 minutes at full load; recharges to 90% in 8 hours from total discharge; replacement battery BM0077
Surge Protection	254-joule surge energy rating
Operating Environment	Operating temperature: 32–104°F (0–40°C); storage temperature: 14–122°F (-10–50°C); 10%–90% non-condensing humidity
Dimensions And Weight	Product dimensions: 17.4 × 6.8 × 11.4 inches; package dimensions: 17 × 7 × 11 inches; weight: 48.1 lb
Certifications And Compliance	cULus (UL1778 5th Edition and CSA 22.2 No. 107.3-14 / R: 2014), FCC Class A, CE certified, and RoHS2 compliant
Model And Brand	Minuteman EC1500LCD-NC
