Minuteman EC1500LCD 1500 VA On-line Tower UPS with 6 0utlets - Tower - 5 Minute Stand-by - 120 V AC Input - 110 V AC, 120 V AC, 127 V AC Output - Serial Port - 6 x NEMA 5-15R Receptacle(s)
- True on-line, double-conversion technology

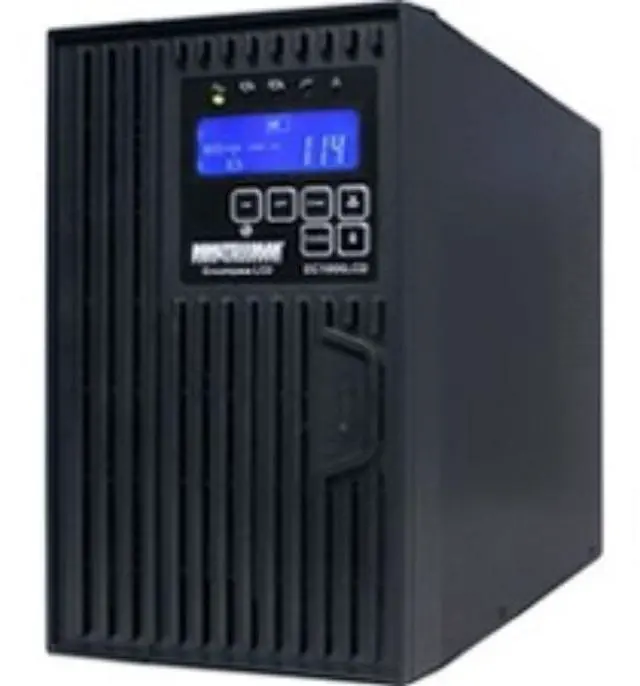

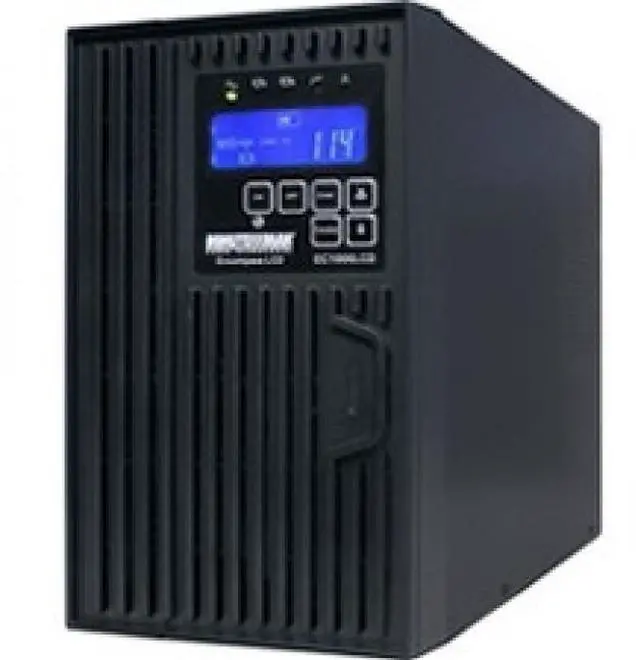

- Easy-to-read LCD display
- 0.9 output power factor
- Highly-efficient, Economy Mode option
- Output receptacle control with 2 banks
- Extended runtime capable
- Independent Battery Bypass - allows the UPS to provide voltage regulation and spike/surge protection either with dead batteries or without batteries
- Hot-swappable battery replacement
- Cold Start capable
- Automatic internal bypass
+
+
Overview
Specs
Reviews
Any questions? Ask CelesteSM will help you find out quickly.
Try me now
On-Line UPS, Comprehensive Protection Minuteman's Encompass Series delivers the comprehensive protection only offered by a true on-line UPS. By totally regenerating the incoming AC signal through double-conversion technology, an on-line UPS provides an impenetrable electrical firewall," providing the most fail-safe power protection available.Designed to protect the most critical equipment used in data centers, voice and data communications, security systems, and light industrial applications. The Encompass Series is SNMP-capable (card optional) and allows full-device management using Minuteman's SentryHD power monitoring and control software.The Encompass product line is a value-priced on-line UPS solution that provides an outstanding set of features, true sinewave output, a three-year warranty (including batteries), and is designed to m..."Plug/Connector Type: NEMA 5-15PReceptacles: 6 x NEMA 5-15RTransfer Time: 0 nsLoad Capacity: 1500 VA/1350 WInput Voltage: 120 V ACInput Voltage Range: 0 V AC - 160 V ACOutput Voltage: 110 V ACOutput Voltage: 120 V ACOutput Voltage: 127 V ACBackup/Run Time (Full Load): 5 MinuteHeight: 11.4Width: 6.8"Depth: 17.4"Form Factor: TowerWeight (Approximate): 48.10 lbPackage Contents: 1500 VA On-line Tower UPS with 6 0utlets Batteries Disconnected Quick Installation Guide Environmentally Friendly: YesEnvironmental Certification: RoHS 2Limited Warranty: 3 YearPackage Contents 1500 VA On-line Tower UPS with 6 0utlets Batteries Disconnected Quick Installation Guide "
Warranty & Returns
Warranty, Returns, And Additional Information
Warranty
- Limited Warranty period (parts): 3 years
- Limited Warranty period (labor): 3 years
- Read full details
Return Policies
- Contact Manufacturer for Assistance
- This item is covered by Newegg.com's Manufacturer Warranty Only Return Policy.
- Read full return policy for details.
Manufacturer Contact Info
- Manufacturer Product Page
- Manufacturer Website
- Support Phone: 1-800-238-7272
- Support Email: mmsupport@minutemanups.com
- Support Website
- View other products from MINUTEMAN
LOADING...
The Minuteman EC1500LCD is a 1500VA/1350W online, double-conversion tower UPS for users who need regulated backup power for servers, network equipment, or other sensitive electronics, with six outlets and a runtime of up to 15 minutes at half load.
Recommended For
- Small-office or home-lab operators protecting a server, network switch, or other sensitive IT equipment who want continuous double-conversion power conditioning rather than battery backup alone.
- Users with equipment sensitive to power-quality changes who need a true online, double-conversion UPS with true sine-wave output.
- People who need a short window to save work or shut down connected equipment during an outage; the manufacturer lists about 5 minutes at full load and 15 minutes at half load.
- IT users who want a tower UPS with six controllable outlets and the option to add an external battery pack for longer runtime.
Spec Summary
| Attribute | Value |
|---|---|
| Best For | Backup power for equipment totaling up to 1350W across six outlets, with specified runtime of 15 minutes at half load and 5 minutes at full load |
| Power Capacity | 1500 VA, rated for 1350 W output |
| Input Power | 120 V AC input, with an input range of 0–160 V AC and automatic 50/60 Hz sensing (±6 Hz); NEMA 5-15P input connection |
| Output Power | 120 V AC output, user-selectable to 110 V AC or 127 V AC; 50/60 Hz output (±0.2 Hz unless synchronized to line) |

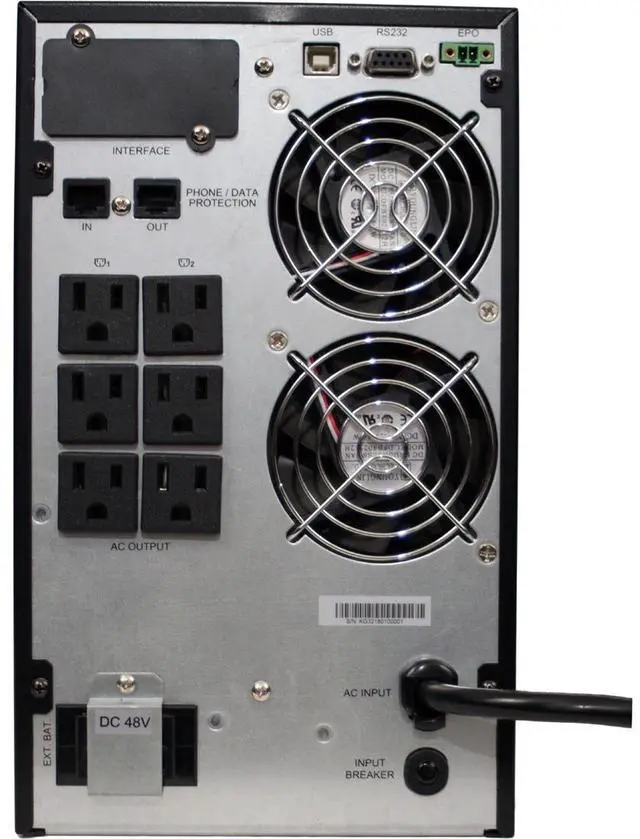

| Outlets And Interfaces | Six NEMA 5-15R outlets, plus DB-9 and RJ-45 interface ports |
| Battery Backup | Sealed lead-acid battery; 15-minute runtime at half load and 5 minutes at full load; recharges to 90% in 8 hours from total discharge; replacement battery model BM0077 |
| Surge Protection | 254-joule surge energy rating |
| Physical Specifications | Tower form factor; 17.4 × 6.8 × 11.4 in; 48.1 lb |
| Environmental Conditions | Operating temperature: 32–104°F (0–40°C); storage temperature: 14–122°F (−10–50°C); humidity: 10%–90%, non-condensing |
| Certifications And Compliance | cULus (UL 1778 5th Edition and CSA 22.2 No. 107.3-14 / R: 2014), FCC Class A, CE certified, and RoHS2 compliant |
| Model Identifiers | Minuteman EC1500LCD |
