What are the dimensions of the Minuteman Encompass EC1500RT2U UPS?

The dimensions of the Minuteman Encompass EC1500RT2U UPS are 19.2" x 3.5" x 18.9".

What is the battery run time for the Minuteman Encompass EC1500RT2U UPS at half load?

The battery run time for the Minuteman Encompass EC1500RT2U UPS at half load is 15 minutes.

$1,160^.99

This item is not returnable

Limit 99999 per customer.

Add to PC build list

Sold by Newegg

Shipped by Newegg

Price alert

Add to Wish List

Best Sellers

Compute4Less Corp

Hot Seller

3.6 (356 total ratings)

$1,181^.89
+ FREE SHIPPING

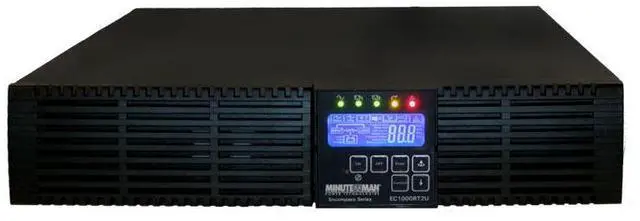

Main image of Minuteman Encompass EC1500RT2U 1500VA Tower/Rack Mountable UPS - 2U Rack/Tower - 5 Minute Stand-by - 120 V AC Input - 120 V AC Output - Serial Port - USB - 6 x NEMA 5-15R Receptacle(s)

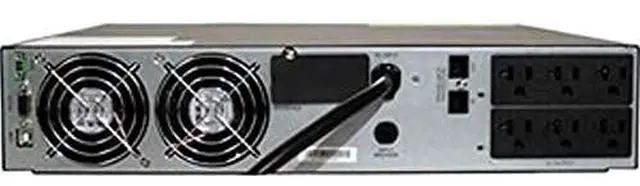

Alt view image 2 of 5 - Minuteman Encompass EC1500RT2U 1500VA Tower/Rack Mountable UPS - 2U Rack/Tower - 5 Minute Stand-by - 120 V AC Input - 120 V AC Output - Serial Port - USB - 6 x NEMA 5-15R Receptacle(s)

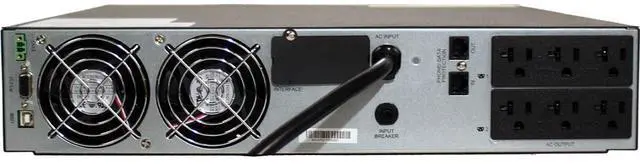

Alt view image 3 of 5 - Minuteman Encompass EC1500RT2U 1500VA Tower/Rack Mountable UPS - 2U Rack/Tower - 5 Minute Stand-by - 120 V AC Input - 120 V AC Output - Serial Port - USB - 6 x NEMA 5-15R Receptacle(s)

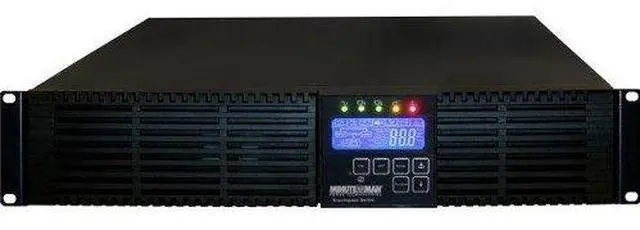

Alt view image 4 of 5 - Minuteman Encompass EC1500RT2U 1500VA Tower/Rack Mountable UPS - 2U Rack/Tower - 5 Minute Stand-by - 120 V AC Input - 120 V AC Output - Serial Port - USB - 6 x NEMA 5-15R Receptacle(s)

Alt view image 5 of 5 - Minuteman Encompass EC1500RT2U 1500VA Tower/Rack Mountable UPS - 2U Rack/Tower - 5 Minute Stand-by - 120 V AC Input - 120 V AC Output - Serial Port - USB - 6 x NEMA 5-15R Receptacle(s)

Shop All MINUTEMAN Products

Minuteman Encompass EC1500RT2U 1500VA Tower/Rack Mountable UPS - 2U Rack/Tower - 5 Minute Stand-by - 120 V AC Input - 120 V AC Output - Serial Port - USB - 6 x NEMA 5-15R Receptacle(s)

Be the first to review this product...

Model: EC1500RT2U

EC1000LCD
EC1000LCD-NC
EC1000RTXL2U
EC1000RTXL2UNC
EC1500LCD
EC1500LCD-NC
EC1500RT2U
EC1500RT2UNC
EC1500RTXL2U
EC1500RTXL2UNC
EC2000LCD
EC2000LCD-NC
EC2000RTXL2U
EC2000RTXL2UNC
EC3000LCD
EC3000LCD-NC
EC3000RT2U
EC3000RT2UNC
EC3000RTXL2UNC

True on-line, double-conversion technology
Easy-to-read LCD display
0.9 output power factor
Highly-efficient, economy mode option
Output receptacle control
Independent Battery Bypass - allows the UPS to provide voltage regulation and spike/surge protection either with dead batteries or without batteries
Tool-less battery replacement
Hot-swappable battery replacement
Cold start capable
Automatic internal bypass

This item is covered under the Manufacturer Only Return Policy.

Overview

Specs

Reviews

See all Q & A

Any questions? Our AI beta will help you find out quickly.

Try me now

MAIN OVERVIEW FEATURES: Plug/Connector Type: NEMA 5-15PReceptacles: 6 x NEMA 5-15RLoad Capacity: 1500 VA/1350 WInput Voltage: 120 V ACInput Voltage Range: 0 V AC - 160 V ACOutput Voltage: 120 V ACBackup/Run Time (Full Load): 5 MinuteHeight: 3.5"Width: 18.9"Rack Height: 2UForm Factor: Rack/TowerWeight (Approximate): 44.10 lbPackage Contents: Encompass EC1500RT2U 1500VA Tower/Rack Mountable UPS Battery Energy Star: YesEnvironmentally Friendly: YesEnvironmental Certification: cTUVus,RoHS 2,T?V RheinlandCountry of Origin: ChinaLimited Warranty: 3 Year

International Version	120V
Input Voltage Range	0-160VAC
Input Frequency	50/60Hz +/-6Hz Auto-sensing

VA Rating	1500VA
Watts	1350W
Output Voltage	120V
Output Frequency	50/60Hz ±0.2Hz unless synchronized to line
Outlets	6
Outlet Type	(6) NEMA 5-15R

Battery Type	Sealed Lead Acid
Battery Run Time	Half Load: 15 min Full Load: 5 min
Battery Recharge Time	8 hours to 90% from total discharge
Battery Replaceable	BM0070

Interface Port	DB-9, USB, RJ-45
Approvals	cTUVus (Conforms to UL1778 5th Edition & CSA 22.2 no. 107.3-14 / R: 2014), FCC Class A, CE certified, RoHS2 (EU Directive 2011/65/EU)

Temperature	Operating (max)/Storage Temperature: +32 to +104°F (0 to 40°C) / +14 to +122°F (-10 to +50°C)
Humidity	10% to 90% non-condensing

Best Sellers

Minuteman Encompass EC1500RT2U 1500VA Tower/Rack Mountable UPS - 2U Rack/Tower - 5 Minute Stand-by - 120 V AC Input - 120 V AC Output - Serial Port - USB - 6 x NEMA 5-15R Receptacle(s)

Learn more about the MINUTEMAN EC1500RT2U

Customer Reviews of the MINUTEMAN EC1500RT2U

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

Return Policies

Manufacturer Contact Info

Model
Brand	MINUTEMAN
Series	ENCOMPASS
Model	EC1500RT2U

Dimensions & Weight
Dimensions	19.2" x 3.5" x 18.9"
Weight	44.1 lbs.
