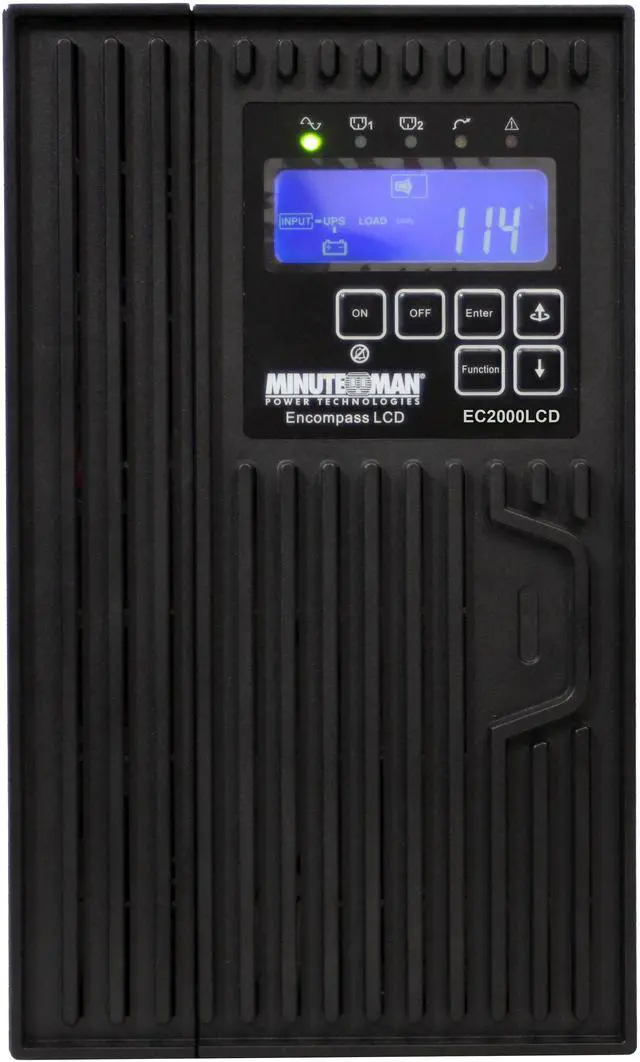

Minuteman EC2000LCD-NC Encompass 2000VA Tower UPS - Tower - 3 Minute Stand-by - Serial Port - 8 x NEMA 5-15/20R Receptacle(s) - 8 x Battery/Surge Outlet

  • EC1000LCD
  • EC1000LCD-NC
  • EC1000RTXL2U
  • EC1000RTXL2UNC
  • EC1500LCD
  • EC1500LCD-NC
  • EC1500RT2U
  • EC1500RT2UNC
  • EC1500RTXL2U
  • EC1500RTXL2UNC
  • EC2000LCD
  • EC2000LCD-NC
  • EC2000RTXL2U
  • EC2000RTXL2UNC
  • EC3000LCD
  • EC3000LCD-NC
  • EC3000RT2U
  • EC3000RT2UNC
  • EC3000RTXL2UNC
  • Offers power supply with zero transfer time taken to the battery and proves ideal for voltage sensitive equipments
  • Keep your sensitive devices powered with a backup of up to 3 minute at full load
  • 2000 VA load capacity provides sufficient backup during power failures
  • NEMA 5-15/20R receptacle type offers ease of operation with maximum efficiency
  • Tower form factor allows hassle-free and easy usage with increased efficiency
  • Lead Acid battery chemistry to better suit your requirements with maximum productivity
  • Prevent critical data loss by staying powered during a blackout with up to 1800 W load capacity
This item is covered under the Manufacturer Only Return Policy.
+
+
Specs
Reviews

Any questions? Ask CelesteSM will help you find out quickly.

Learn more about the MINUTEMAN EC2000LCD-NC

Model
Brand MINUTEMAN
Series ENCOMPASS
Model EC2000LCD-NC
Input
International Version 120V
Input Voltage Range 0-160VAC
Input Frequency 50/60Hz +/- 6Hz Auto-sensing
Input Connection NEMA 5-20P
Output
VA Rating 2000VA
Watts 1800W
Output Voltage 120V
Output Frequency 50/60Hz +/-0.2Hz unless synchronized to line
Outlets 8
Outlet Type (8) NEMA 5-15/20R (controllable)
Battery
Battery Type Sealed Lead Acid
Battery Run Time Half Load: 10 min
Full Load: 3 min
Battery Recharge Time 8 hours to 90% from total discharge
Battery Replaceable BM0077
Details
Approvals cULus (UL1778 5th Edition & CSA 22.2 no. 107.3-14 / R: 2014), FCC Class A, CE certified, RoHS2 (EU Directive 2011/65/EU & 2015/863/EU)
Surge Protection
Surge Energy Rating 254 Joules
Environmental
Temperature Operating Temperature +32 to +104°F (0 to 40°C)
Storage Temperature +14 to +122°F (-10 to +50°C)
Humidity 10% to 90% non-condensing
Dimensions & Weight
Dimensions 17.4" x 6.8" x 11.4"
Weight 48.1 lbs.
Additional Information
First Listed on Newegg May 23, 2025

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

  • Limited Warranty period (parts): 3 years
  • Limited Warranty period (labor): 3 years
  • Read full details

Return Policies

LOADING...

The MINUTEMAN EC2000LCD-NC is a 2000VA/1800W tower UPS for offices and equipment setups that need battery backup for multiple devices, with eight controllable outlets and zero transfer time to battery. It provides up to 10 minutes at half load or 3 minutes at full load, making it suited to short outages and shutdown time.

Recommended For

  • Small server and network operators who need continuous, conditioned power for servers, switches, or communications equipment and want time to ride through brief outages or shut systems down safely.
  • Users with voltage-sensitive equipment who need online, double-conversion power protection rather than a UPS that switches to battery only when utility power fails.
  • Lab, security-system, and other light-industrial operators protecting sensitive equipment who need a tower UPS with eight controllable battery-backed outlets.
  • IT staff who want to monitor or manage a protected system using the UPS’s USB or serial connection and Minuteman’s power-monitoring software.

Spec Summary

AttributeValue
Best ForBattery backup for equipment needing 120V power, with capacity for connected loads up to 1800W and eight outlets
Capacity And Output2000VA / 1800W capacity; 120V output at 50/60Hz ±0.2Hz unless synchronized to line
Input PowerNEMA 5-20P input; accepts 0–160VAC at 50/60Hz ±6Hz with auto-sensing
Outlets And Surge ProtectionEight controllable NEMA 5-15/20R outlets; 254-joule surge energy rating
Battery And RuntimeSealed lead-acid battery provides 10 minutes at half load or 3 minutes at full load; recharges to 90% in 8 hours from total discharge; replacement battery BM0077
Environmental ConditionsOperating temperature: 32–104°F (0–40°C); storage temperature: 14–122°F (-10–50°C); humidity: 10%–90%, non-condensing
Dimensions And Weight17.4 × 6.8 × 11.4 inches; 48.1 lb
Certifications And CompliancecULus (UL 1778 5th Edition and CSA 22.2 No. 107.3-14 / R: 2014), FCC Class A, CE certified, and RoHS2 compliant
Model IdentifiersMinuteman Encompass series, model EC2000LCD-NC; 120V international version
