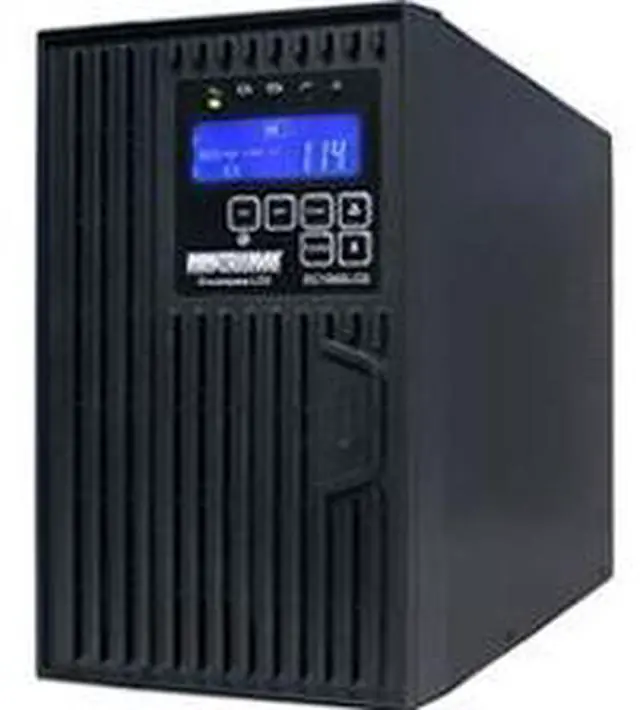

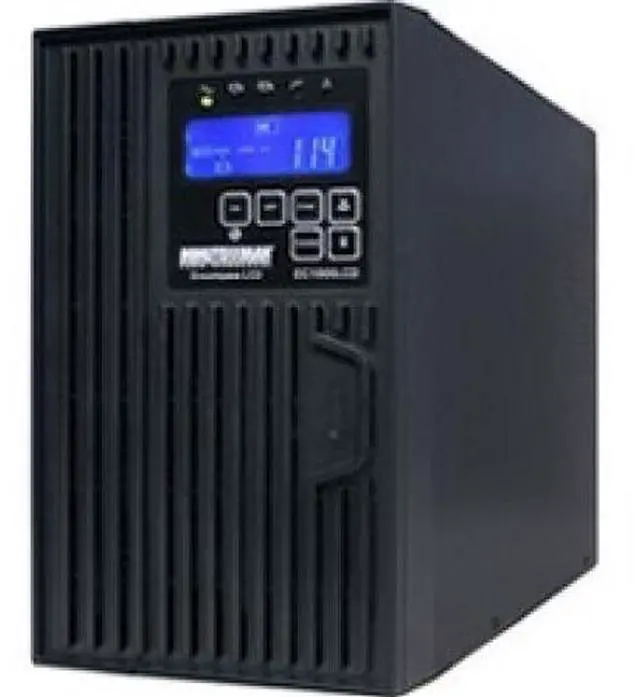

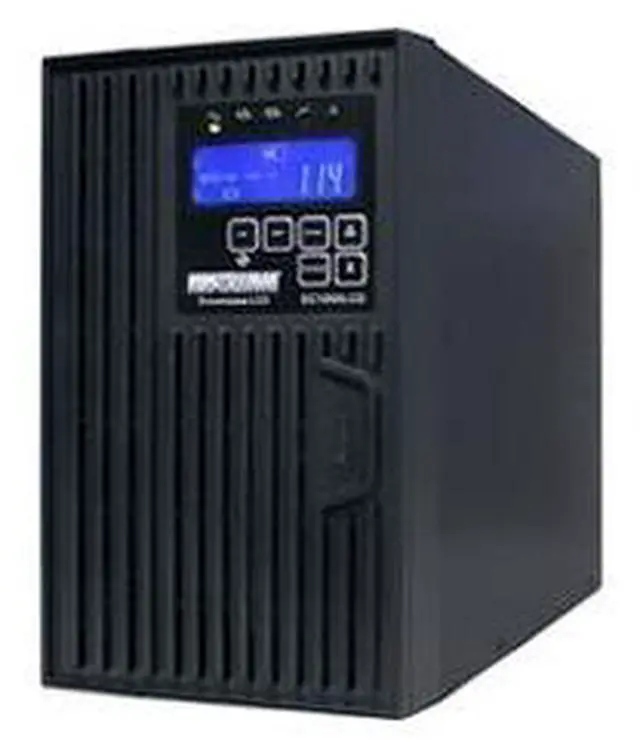

Minuteman EC2000LCD 2000 VA On-line Tower UPS with 8 0utlets - Tower - 3 Minute Stand-by - 120 V AC Input - 110 V AC, 120 V AC, 127 V AC Output - Serial Port - 8 x NEMA 5-15/20R Receptacle(s)
- True on-line, double-conversion technology
- Easy-to-read LCD display
- 0.9 output power factor
- Highly-efficient, Economy Mode option
- Output receptacle control with 2 banks
- Extended runtime capable
- Independent Battery Bypass - allows the UPS to provide voltage regulation and spike/surge protection either with dead batteries or without batteries
- Hot-swappable battery replacement
- Cold Start capable
- Automatic internal bypass
+
+
Overview
Specs
Reviews
Any questions? Ask CelesteSM will help you find out quickly.
Try me now
On-Line UPS, Comprehensive Protection Minuteman's Encompass Series delivers the comprehensive protection only offered by a true on-line UPS. By totally regenerating the incoming AC signal through double-conversion technology, an on-line UPS provides an impenetrable electrical firewall," providing the most fail-safe power protection available.Designed to protect the most critical equipment used in data centers, voice and data communications, security systems, and light industrial applications. The Encompass Series is SNMP-capable (card optional) and allows full-device management using Minuteman's SentryHD power monitoring and control software.The Encompass product line is a value-priced on-line UPS solution that provides an outstanding set of features, true sinewave output, a three-year warranty (including batteries), and is designed to m..."Plug/Connector Type: NEMA 5-20PReceptacles: 8 x NEMA 5-15/20RTransfer Time: 0 nsLoad Capacity: 2000 VA/1800 WInput Voltage: 120 V ACInput Voltage Range: 0 V AC - 160 V ACOutput Voltage: 110 V ACOutput Voltage: 120 V ACOutput Voltage: 127 V ACBackup/Run Time (Full Load): 3 MinuteHeight: 11.4Width: 6.8"Depth: 17.4"Form Factor: TowerWeight (Approximate): 48.10 lbPackage Contents: 2000 VA On-line Tower UPS with 8 0utlets Batteries Disconnected Quick Installation Guide Environmentally Friendly: YesEnvironmental Certification: RoHS 2Limited Warranty: 3 YearPackage Contents 2000 VA On-line Tower UPS with 8 0utlets Batteries Disconnected Quick Installation Guide "
Warranty & Returns
Warranty, Returns, And Additional Information
Warranty
- Limited Warranty period (parts): 3 years
- Limited Warranty period (labor): 3 years
- Read full details
Return Policies
- Contact Manufacturer for Assistance
- This item is covered by Newegg.com's Manufacturer Warranty Only Return Policy.
- Read full return policy for details.
Manufacturer Contact Info
- Manufacturer Product Page
- Manufacturer Website
- Support Phone: 1-800-238-7272
- Support Email: mmsupport@minutemanups.com
- Support Website
- View other products from MINUTEMAN
LOADING...
The Minuteman EC2000LCD is a 2000VA/1800W online, double-conversion tower UPS for critical equipment that needs continuous power conditioning and short-term battery backup, such as data-center, communications, security, or light-industrial systems. It has eight controllable outlets and provides up to 10 minutes of runtime at half load or 3 minutes at full load.
Recommended For
- Small-business IT teams protecting servers, VoIP, network, or security equipment that needs continuous double-conversion power conditioning and battery backup.
- Facilities protecting sensitive IT, security, or laboratory equipment that benefits from online, true-sine-wave output and tightly regulated voltage.
- IT administrators who want to monitor the UPS and prioritize essential devices using its controllable outlet banks and optional network-management card.
- Organizations that need short battery coverage for orderly shutdowns or plan to add compatible external battery packs for longer outages.
Spec Summary
| Attribute | Value |
|---|---|
| Best For | Backup power for connected equipment requiring up to 1800W, with eight controllable outlets |
| UPS Capacity And Output | 2000VA capacity with 1800W output at 120V |
| Input And Frequency | NEMA 5-20P input; accepts 0–160VAC and automatically senses 50/60Hz input frequency within ±6Hz |
| Outlets And Surge Protection | Eight controllable NEMA 5-15/20R outlets with a 254-joule surge energy rating |
| Battery And Runtime | Sealed lead-acid battery; 10 minutes at half load and 3 minutes at full load, with recharge to 90% in 8 hours from total discharge; replaceable with battery model BM0077 |
| Output Frequency | 50/60Hz ±0.2Hz unless synchronized to line |
| Operating Environment | Operating temperature 32–104°F (0–40°C), storage temperature 14–122°F (-10–50°C), and 10%–90% non-condensing humidity |
| Compliance | cULus (UL 1778 5th Edition and CSA 22.2 No. 107.3-14 / R: 2014), FCC Class A, CE certified, and RoHS2 compliant |
| Physical Specifications | 17.4 × 6.8 × 11.4 inches; 48.1 lb |
| Model Identifiers | Minuteman Encompass EC2000LCD, 120V international version |
