Minuteman Encompass EC3000RT2U 3000VA Tower/Rack Mountable UPS - 2U Rack/Tower - 3 Minute Stand-by - 120 V AC Input - 120 V AC Output - 1 x NEMA L5-30R, 6 x NEMA 5-15/20R Receptacle(s)
- True on-line, double-conversion technology
- Compact case design, (only 2U for all models), for high-density rack installations.

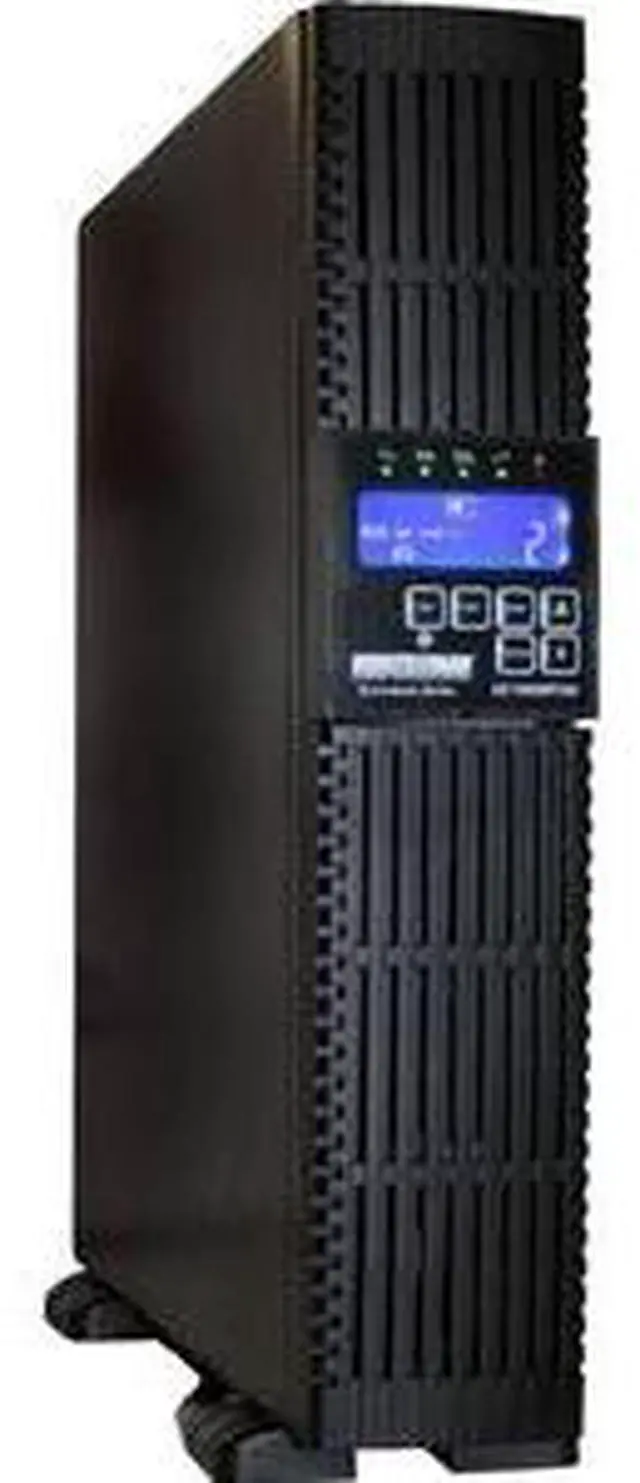

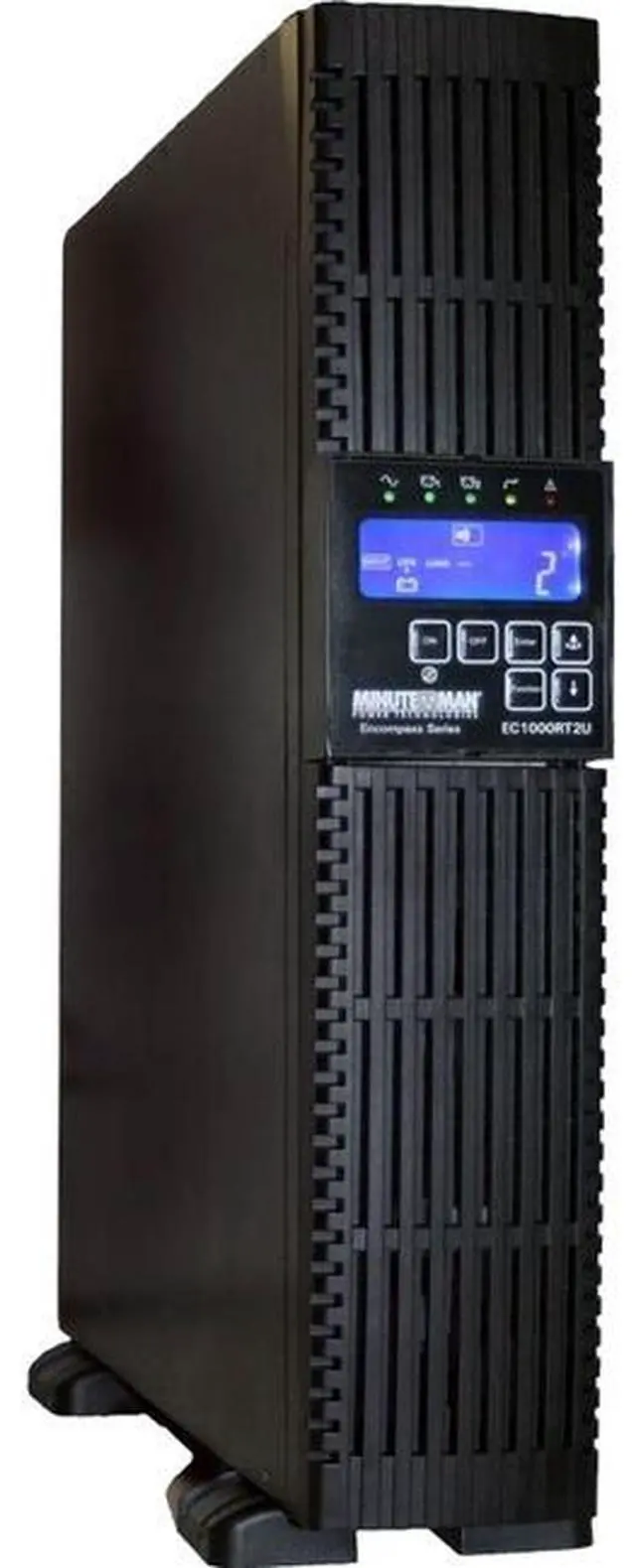

- Flexible installation format: Rack/Tower Rackmount ears come attached to UPS

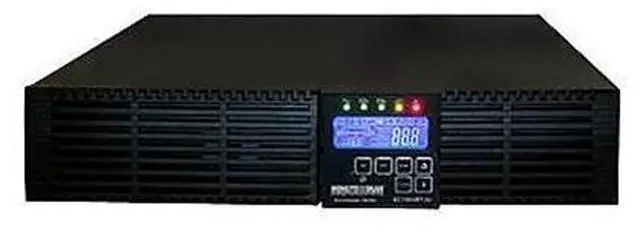

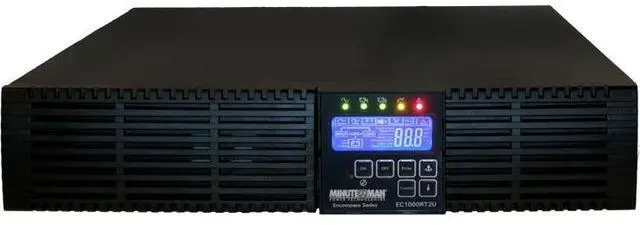

- Easy-to-read LCD display
- 0.9 output power factor
- Highly-efficient, Economy Mode option
- Output receptacle control with two controllable banks
- Independent Battery Bypass - allows the UPS to provide voltage regulation and spike/surge protection either with dead batteries or without batteries
- Hot-swappable battery replacement
- Cold start capable
Any questions? Ask CelesteSM will help you find out quickly.
On-Line UPS, Comprehensive Protection
Minuteman's Encompass Series delivers the comprehensive protection only offered by a true on-line UPS. By totally regenerating the incoming AC signal through double conversion technology, an on-line UPS provides an impenetrable "electrical firewall," providing the most fail-safe power protection available.Designed to protect the most critical equipment used in data centers, voice and data communications, security systems, and light industrial applications. The Encompass Series is SNMP-capable (card optional) and allows full device management using Minuteman's SentryHD power monitoring and control software.
The Encompass product line is a value-priced on-line UPS solution that provides an outstanding set of features, true sinewave output, a three-year warranty (including batteries), and is designed to meet the reliability expectations of even the most demanding critical applications.
Warranty & Returns
Warranty, Returns, And Additional Information
Warranty
- Limited Warranty period (parts): 3 years
- Limited Warranty period (labor): 3 years
- Read full details
Return Policies
- Contact Manufacturer for Assistance
- This item is covered by Newegg.com's Manufacturer Warranty Only Return Policy.
- Read full return policy for details.
Manufacturer Contact Info
- Manufacturer Product Page
- Manufacturer Website
- Support Phone: 1-800-238-7272
- Support Email: mmsupport@minutemanups.com
- Support Website
- View other products from MINUTEMAN
The Minuteman Encompass EC3000RT2U is a 3000VA/2700W online, double-conversion UPS for rack or tower installations, suited to servers, network equipment, and other critical 120V systems that need continuous power conditioning and short-term backup; runtime is rated at 10 minutes at half load and 3 minutes at full load.
Recommended For
- Small server-room and network-closet operators who need continuous, double-conversion power conditioning for rack-mounted servers, switches, or storage equipment.
- Rack users with compatible 30A power service who need to protect equipment drawing up to 2,700W, including a device that uses an L5-30R connection.
- IT administrators who want to prioritize critical rack loads and shed less-important equipment using the UPS’s two controllable outlet banks.
- Operators who need a short window to save work or perform an orderly shutdown during an outage; the listed runtime is about 3 minutes at full load and 10 minutes at half load.
Spec Summary
| Attribute | Value |
|---|---|
| Best For | Rack- or tower-mounted equipment requiring 120V backup power, with up to 3000VA/2700W capacity |
| Power Capacity | 3000VA, rated for 2700W |
| Input Power | Accepts 0–160VAC at 50/60Hz (±6Hz), with auto-sensing frequency and a NEMA L5-30P input |

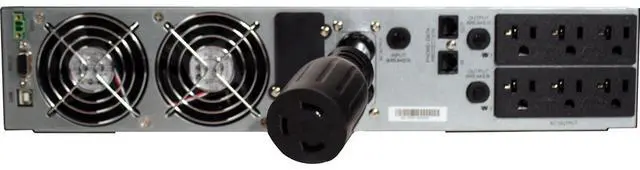

| Output And Receptacles | 120VAC output, selectable at 110VAC or 127VAC; 50/60Hz output (±0.2Hz unless synchronized to line) across 7 outlets: six controllable NEMA 5-15/20R and one always-on L5-30R |
| Battery And Runtime | Sealed lead-acid battery with 10 minutes of runtime at half load and 3 minutes at full load; recharges to 90% in 8 hours from total discharge and is replaceable with BM0071 |
| Connections And Surge Protection | DB-9, USB, and RJ-45 interface ports; 254-joule surge energy rating |
| Operating Environment | Operating temperature: 32–104°F (0–40°C); storage temperature: 14–122°F (−10–50°C); 10–90% non-condensing humidity |
| Physical Specifications | 23.7 × 18.9 × 3.5 inches; 61.1 lb |
| Certifications And Compliance | cTUVus (UL 1778 5th Edition and CSA 22.2 No. 107.3-14 / R: 2014), FCC Class A, CE certified, and RoHS2 compliant |
| Model Identifiers | Minuteman Encompass EC3000RT2U, 120V version |
