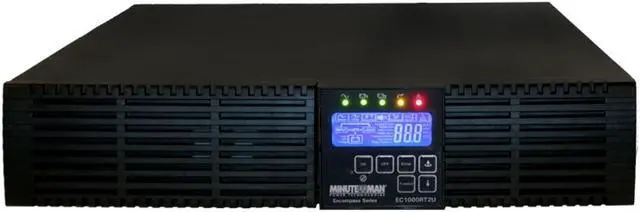

Minuteman Ecompass EC3000RT2UNC 3000VA Tower/Rack Mountable UPS - 2U Rack/Tower - 3 Minute Stand-by - 120 V AC Output - 6 x NEMA 5-15/20R Receptacle(s)
- Offers power supply with zero transfer time taken to the battery and proves ideal for voltage sensitive equipments
- Keep your sensitive devices powered with a backup of up to 3 minute at full load
- 3000 VA load capacity - work without any interruption during power outages
- NEMA 5-15/20R receptacle type provides secure, reliable connection with added productivity
- 120 V AC output voltage for optimal performance with maximum feasibility
- Rack/Tower form factor allows hassle-free and easy usage with increased efficiency
- 2700 W load capacity - backup power for your valuable electronics
+
+
Specs
Reviews
Any questions? Ask CelesteSM will help you find out quickly.
Try me now
Learn more about the MINUTEMAN EC3000RT2UNC
| Brand | MINUTEMAN |
|---|---|
| Series | ENCOMPASS |
| Model | EC3000RT2UNC |
| International Version | 120V |
|---|---|
| Input Voltage Range | 0-160VAC |
| Input Frequency | 50/60Hz +/-6Hz Auto-sensing |
| Input Connection | NEMA L5-30P |
| VA Rating | 3000VA |
|---|---|
| Watts | 2700W |
| Output Voltage | 120VAC, User selectable: 110VAC, 127VAC |
| Output Frequency | 50/60Hz +/- 0.2Hz unless synchronized to line |
| Outlets | 7 |

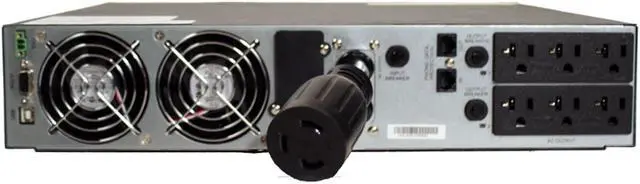

| Outlet Type | [6] NEMA 5-15/20R (controllable) & [1] L5-30R (always on) |
| Battery Type | Sealed Lead Acid |
|---|---|
| Battery Run Time | Half Load: 10 min Full Load: 3 min |
| Battery Recharge Time | 8 hours to 90% from total discharge |
| Battery Replaceable | BM0071 |
| Interface Port | DB-9, USB, RJ-45 |
|---|---|
| Approvals | cTUVus (Conforms to UL1778 5th Edition & CSA 22.2 no. 107.3-14 / R: 2014), FCC Class A, CE certified, RoHS2 (EU Directive 2011/65/EU) |
| Surge Energy Rating | 254 Joules |
|---|
| Temperature | Operating (max)/Storage Temperature: +32 to +104°F (0 to 40°C) / +14 to +122°F (-10 to +50°C) |
|---|---|
| Humidity | 10% to 90% non-condensing |
| Dimensions | 23.7" x 18.9" x 3.5" |
|---|---|
| Weight | 61.1 lbs. |
| First Listed on Newegg | February 17, 2018 |
|---|
Warranty & Returns
Warranty, Returns, And Additional Information
Warranty
- Limited Warranty period (parts): 3 years
- Limited Warranty period (labor): 3 years
- Read full details
Return Policies
- Contact Manufacturer for Assistance
- This item is covered by Newegg.com's Manufacturer Warranty Only Return Policy.
- Read full return policy for details.
Manufacturer Contact Info
- Manufacturer Product Page
- Manufacturer Website
- Support Phone: 1-800-238-7272
- Support Email: mmsupport@minutemanups.com
- Support Website
- View other products from MINUTEMAN
LOADING...
The Minuteman EC3000RT2UNC is a 3000VA/2700W, 120V rack- or tower-mount UPS with zero transfer time to battery, suited to voltage-sensitive servers and network equipment that need uninterrupted power during brief outages.
Recommended For
- IT teams running rack-mounted servers or network equipment that need online, double-conversion power protection and zero transfer time during utility disturbances.
- Organizations protecting VoIP, IP/analog phone, or education-network equipment that needs continuous, regulated power in a fixed 2U rack or tower installation.
- Facilities using security systems or sensitive laboratory equipment that need true-sine-wave output and protection from power anomalies.
- 120V installations with a compatible L5-30 outlet and a high equipment load that need up to 2,700W of UPS capacity across several connected devices.
Spec Summary
| Attribute | Value |
|---|---|
| Best For | Providing backup power for voltage-sensitive electronics, with 3 minutes of runtime at full load |
| Model Identifiers | Minuteman Encompass EC3000RT2UNC, 120V international version |
| Input Power | NEMA L5-30P input; accepts 0–160VAC at 50/60Hz ±6Hz with automatic frequency sensing |
| Output Power And Receptacles | 3000VA / 2700W capacity; 120VAC output, selectable to 110VAC or 127VAC, at 50/60Hz ±0.2Hz unless synchronized to line. Seven outlets: six controllable NEMA 5-15/20R and one always-on L5-30R |
| Battery Backup | Sealed lead-acid battery provides 10 minutes at half load or 3 minutes at full load; recharges to 90% in 8 hours from total discharge. Replacement battery: BM0071 |
| Interfaces | DB-9, USB, and RJ-45 interface ports |
| Surge Protection | 254-joule surge energy rating |
| Operating Environment | Operating temperature: 32°F to 104°F (0°C to 40°C); storage temperature: 14°F to 122°F (-10°C to 50°C). Humidity: 10% to 90%, non-condensing |
| Physical Specifications | 23.7 × 18.9 × 3.5 inches; 61.1 lb |
| Certifications And Compliance | cTUVus (UL 1778 5th Edition and CSA 22.2 No. 107.3-14 / R: 2014), FCC Class A, CE certified, and RoHS2 compliant (EU Directive 2011/65/EU) |
