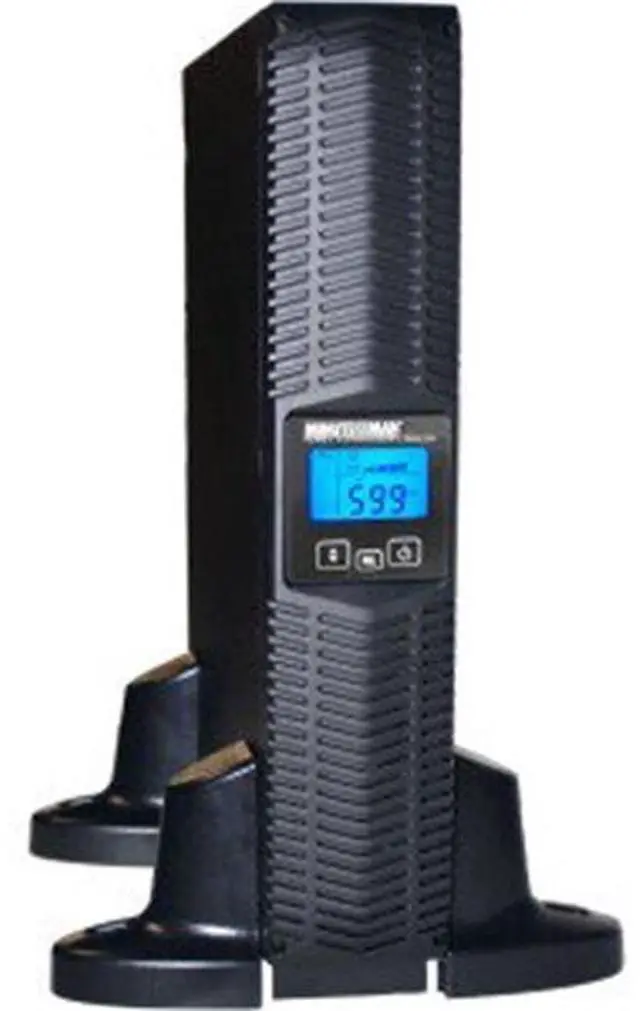

Minuteman Endeavor ED1000RTXL2UNC 1000VA Tower/Rack/Wall Mountable UPS - 2U Tower/Rack/Wall Mountable - 3 Minute Stand-by - 120 V AC Input - 120 V AC Output - 8 x NEMA 5-15R Receptacle(s)
- True on-line, double-conversion technology
- Compact case design, (only 2U for all models), for high-density rack installations
- Flexible installation format: Rack/Tower or Wall (with an optional install kit)
- Rackmount ears come attached to UPS
- Easy-to-read LCD display
- 0.9 output power factor
- Highly-efficient, Economy Mode option
- Output receptacle control with three load banks
- Independent Battery Bypass - allows the UPS to provide voltage regulation and spike/surge protection either with dead batteries or without batteries
- Hot-swappable battery replacement
+
+
Overview
Specs
Reviews
Any questions? Ask CelesteSM will help you find out quickly.
Try me now
MAIN OVERVIEW FEATURES: Plug/Connector Type: NEMA 5-15PReceptacles: 8 x NEMA 5-15RLoad Capacity: 1000 VA/900 WInput Voltage: 120 V ACInput Voltage Range: 0 V AC - 160 V ACOutput Voltage: 120 V ACBackup/Run Time (Full Load): 3 MinuteHeight: 3.5"Width: 19"Rack Height: 2UForm Factor: Tower/Rack/Wall MountableWeight (Approximate): 29.30 lbPackage Contents: Endeavor ED1000RTXL2UNC 1000VA Tower/Rack/Wall Mountable UPS Batteries SNMP Card Energy Star: YesEnvironmentally Friendly: YesEnvironmental Certification: cTUVus,RoHS 2,T?V RheinlandCountry of Origin: ChinaLimited Warranty: 5 Year
Warranty & Returns
Warranty, Returns, And Additional Information
Warranty
- Limited Warranty period (parts): 3 years
- Limited Warranty period (labor): 3 years
- Read full details
Return Policies
- Contact Manufacturer for Assistance
- This item is covered by Newegg.com's Manufacturer Warranty Only Return Policy.
- Read full return policy for details.
Manufacturer Contact Info
- Manufacturer Product Page
- Manufacturer Website
- Support Phone: 1-800-238-7272
- Support Email: mmsupport@minutemanups.com
- Support Website
- View other products from MINUTEMAN
LOADING...
The Minuteman Endeavor ED1000RTXL2UNC is a 1000VA/900W online, double-conversion UPS for small server racks, network equipment, and other sensitive electronics that need regulated 120V power and battery backup. It has eight NEMA 5-15R outlets and a compact 2U design for rack, tower, or optional wall-mount installation.
Recommended For
- Network and IT staff protecting a small server rack or remote network closet who need continuous, double-conversion power conditioning for servers, switches, or routers.
- Organizations backing up VoIP, security, or other sensitive communications equipment that need a rack-, tower-, or optionally wall-mounted UPS.
- IT teams that want to monitor a supported UPS over a network; the UNC model is listed with an SNMP card for network management.
- Rack operators who need to prioritize critical equipment during an outage, using independently controlled outlet banks and an always-on bank.
Spec Summary
| Attribute | Value |
|---|---|
| Best For | Providing battery-backed power and surge protection for equipment connected to its 120V outlets |
| Power Capacity | 1000VA / 900W |
| Input And Output | 120VAC output, user-selectable to 110VAC; input voltage range of 0–160VAC. Input and output frequency are 50/60Hz, with automatic input sensing |
| Connections And Surge Protection | NEMA 5-15P input plug and 8 NEMA 5-15R outlets; 1000-joule surge energy rating |
| Battery And Runtime | Sealed lead-acid battery; runtime of 11 minutes at half load and 3 minutes at full load; recharges to 90% in 8 hours from total discharge. Replaceable battery: BM0035 |
| Operating Environment | Operating temperature: 32–104°F (0–40°C); storage temperature: 5–113°F (−15–45°C); humidity: 95% non-condensing |
| Dimensions And Weight | 13.3 × 3.5 × 19 inches; 29.3 lb |
| Certifications And Compliance | cTUVus, FCC, CE certified, Energy Star certified, and RoHS2 compliant |
| Model Identifiers | MINUTEMAN ED1000RTXL2UNC; 120V international version |
