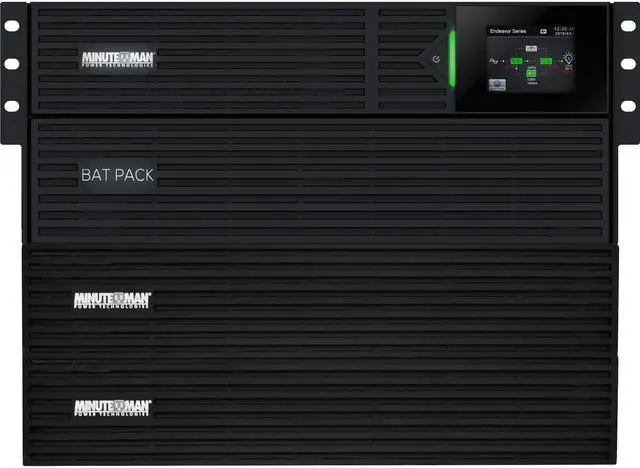

Minuteman ED10KRT-10KTF2 Endeavor UPS (rack-mountable / external) (BM0098) - AC 208/220/230/240 V - 8550 Watt - 10000 VA - valve regulated lead-acid (VRLA) - RS-232, USB - output connectors: 19 - PFC

Model: ED10KRT-10KTF2

Device Type: UPS - Power Factor Correction (PFC) - rack-mountable / external
Rack Size: 4U
Weight: 413.36 lbs
Input Voltage: AC 208/220/230/240 V
Output Voltage: AC 208/220/230/240 V
Power Capacity: 8550 Watt / 10000 VA
Input Connectors: Hardwire
Output connectors: 2 x power NEMA L6-30R - 240 V ¦ 2 x power NEMA L6-20R - 240 V ¦ 1 x 3 pin terminal block - 240 V ¦ 8 x power NEMA 5-15/20R - 120 V ¦ 4 x power NEMA L5-30R - 120 V ¦ 2 x 3 pin terminal block - 120 V
Battery: BM0098 - valve regulated lead-acid (VRLA)
Run Time (Up To): 2 min at full load
Networking: RS-232, USB
Remote Management Protocol: SNMP
Dimensions (WxDxH): 17.2 in x 15.4 in x 28.7 in
Environmental Standards: ENERGY STAR

This item is covered under the Manufacturer Only Return Policy.

Specs

Reviews

Any questions? Our AI beta will help you find out quickly.

Try me now

Learn more about the MINUTEMAN ED10KRT-10KTF2

Output
VA Rating	10000VA
Watts	8550W
Output Voltage	208 (Default), 220, 230, 240VAC / 120VAC (Default), 110, 115VAC
Output Frequency	50/60Hz, +/-0.1Hz
Outlets	6
Outlet Type	(2) L6-30R / (2) L6-20R / (1) 3-wire Terminal Block (208-240VAC) (8) 5-15/20R / (4) L5-30R / (2) 3-wire Terminal Block (120VAC)

Battery
Battery Run Time	Half Load: 7 min Full Load: 2 min
Battery Replaceable	BM0098

Details
Interface Port	RS-232, USB
Approvals	cUL, CE, UL1778, FCC Class B, Energy Star 2.0, RoHS2

Surge Protection
Surge Energy Rating	3140 Joules

Environmental
Temperature	Operating Temperature: +32° to +104°F (0° to +40°C) Storage Temperature: +5° to +131°F (-15° to +55°C)
Humidity	0 to 95%, non-condensing

Dimensions & Weight
Dimensions	28.74" x 17.24" x 15.36"
Weight	413.25 lbs.
