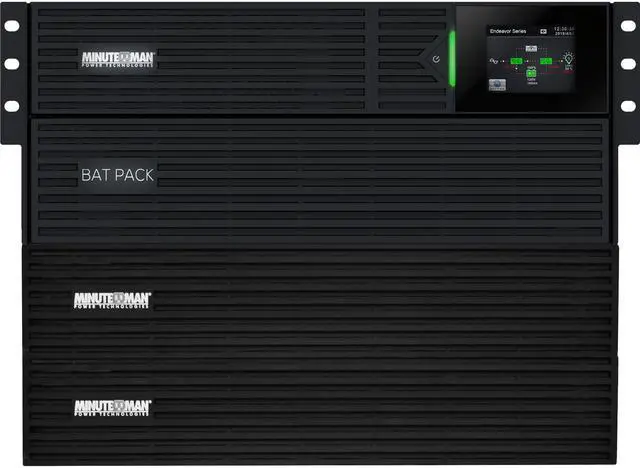

Minuteman ED10KRT-8KTF2 UPS Online 208-240V - 9KKW - 8KVA- 120V Rack/Tower Endeavor 5 -10 KVA SE

Model: ED10KRT-8KTF2

Multi-color, touchscreen LCD panel for easy UPS configuration and monitoring
Compact design: 4U for 5/6kVA, 5U for 8/10kVA (208VAC models)
High-frequency design for efficient performance
Space-saving solution for higher density installations
Predictive Battery Replacement feature with early warning alarms
Tool-less, front-panel battery connection and replacement
Hot-swappable batteries for continuous power
Independent battery chargers for unlimited runtime
Automatic recognition of additional battery packs for recalculating runtimes
Easy connect transformer module with NEMA input plug
Wide range of 120V and 208V NEMA output receptacles available in standard configurations
Smart ECO Mode feature allows for increased energy savings

This item is covered under the Manufacturer Only Return Policy.

Specs

Reviews

Any questions? Our AI beta will help you find out quickly.

Try me now

Learn more about the MINUTEMAN ED10KRT-8KTF2

Output
VA Rating	10000VA
Watts	8730W
Output Voltage	208 (Default), 220, 230, 240VAC / 120VAC (Default), 110, 115VAC
Output Frequency	50/60Hz, +/-0.1Hz
Outlets	6
Outlet Type	(2) L6-30R / (2) L6-20R / (1) 3-wire Terminal Block (208-240VAC) (12) 5-15/20R / (2) L5-30R / (1) 3-wire Terminal Block (120VAC)

Battery
Battery Run Time	Half Load: 7 min Full Load: 2 min
Battery Replaceable	BM0098

Details
Interface Port	RS-232, USB
Approvals	cUL, CE, UL1778, FCC Class B, Energy Star 2.0, RoHS2

Surge Protection
Surge Energy Rating	3140 Joules

Environmental
Temperature	Operating Temperature: +32° to +104°F (0° to +40°C) Storage Temperature: +5° to +131°F (-15° to +55°C)
Humidity	0 to 95%, non-condensing

Dimensions & Weight
Dimensions	28.74" x 17.24" x 15.36"
Weight	380.19 lbs.
