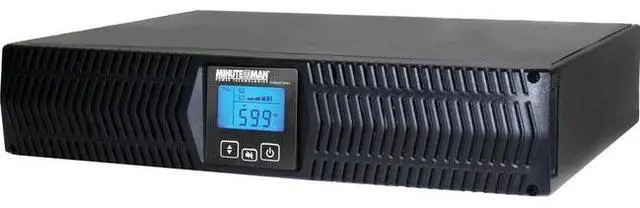

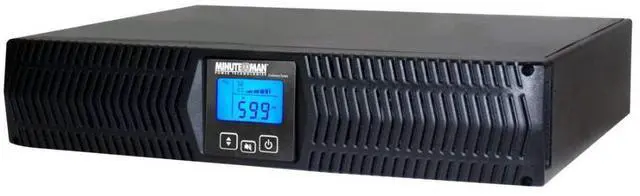

Minuteman Endeavor ED2000RTXL2UNC 2000VA Tower/Rack/Wall Mountable UPS-2U Tower/Rack/Wall Mountable - 4 Minute Stand-by - 120 V AC Input - 120 V AC Output-1 x NEMA L5-20R, 8 x NEMA 5-15/20R Receptacle
- True on-line, double-conversion technology
- Compact case design, (only 2U for all models), for high-density rack installations
- Flexible installation format: Rack/Tower or Wall (with an optional install kit)
- Rackmount ears come attached to UPS
- Easy-to-read LCD display
- 0.9 output power factor
- Highly-efficient, Economy Mode option
- Output receptacle control with three load banks
- Independent Battery Bypass - allows the UPS to provide voltage regulation and spike/surge protection either with dead batteries or without batteries
- Hot-swappable battery replacement
+
+
Overview
Specs
Reviews
Any questions? Ask CelesteSM will help you find out quickly.
Try me now
MAIN OVERVIEW FEATURES: Plug/Connector Type: NEMA 5-20PReceptacles: 1 x NEMA L5-20R,8 x NEMA 5-15/20RLoad Capacity: 2000 VA/1800 WInput Voltage: 120 V ACInput Voltage Range: 0 V AC - 160 V ACOutput Voltage: 120 V ACBackup/Run Time (Full Load): 4 MinuteHeight: 3.5"Width: 19"Rack Height: 2UForm Factor: Tower/Rack/Wall MountableWeight (Approximate): 47.60 lbPackage Contents: Endeavor ED2000RTXL2UNC 2000VA Tower/Rack/Wall Mountable UPS Batteries SNMP Card Energy Star: YesEnvironmentally Friendly: YesEnvironmental Certification: cTUVus,RoHS 2,T?V RheinlandCountry of Origin: ChinaLimited Warranty: 5 Year
Warranty & Returns
Warranty, Returns, And Additional Information
Warranty
- Limited Warranty period (parts): 3 years
- Limited Warranty period (labor): 3 years
- Read full details
Return Policies
- Contact Manufacturer for Assistance
- This item is covered by Newegg.com's Manufacturer Warranty Only Return Policy.
- Read full return policy for details.
Manufacturer Contact Info
- Manufacturer Product Page
- Manufacturer Website
- Support Phone: 1-800-238-7272
- Support Email: mmsupport@minutemanups.com
- Support Website
- View other products from MINUTEMAN
LOADING...
The Minuteman Endeavor ED2000RTXL2UNC is a 2000VA/1800W online, double-conversion UPS for network closets, server racks, and other equipment setups that need continuous power conditioning and battery backup, with rack, tower, or optional wall installation.
Recommended For
- Small server-room or network-rack operators protecting servers, switches, or storage that need continuous online power conditioning and battery backup.
- IT administrators who need to monitor a UPS remotely and manage connected equipment over a network; this model is listed with an SNMP communications card, USB/RS-232, and controllable outlet banks.
- Teams installing equipment in a standard 19-inch rack that want a 2U UPS that can also be set up as a tower or wall-mounted with the appropriate kit.
- Operators who want to extend backup time beyond the built-in batteries and can add a compatible external battery pack.
Spec Summary
| Attribute | Value |
|---|---|
| Best For | Battery backup and power protection for connected equipment drawing up to 1800W, with nine outlets available |
| Capacity And Output | 2000VA / 1800W capacity; 120VAC output, user-selectable to 110VAC, at 50/60Hz ±0.5Hz unless synchronized to line |
| Input And Connection | Accepts 0–160VAC input at 50/60Hz ±6Hz with auto-sensing; NEMA 5-20P input connection |
| Outlets And Surge Protection | Nine outlets: eight NEMA 5-15/20R and one NEMA L5-20R; 1000-joule surge energy rating |
| Battery And Runtime | Sealed lead-acid battery; 12 minutes at half load and 4 minutes at full load; recharges to 90% in 8 hours from total discharge; replaceable battery model BM0037 |
| Operating Environment | Operating temperature: 32–104°F (0–40°C); storage temperature: 5–113°F (-15–45°C); humidity: 95% non-condensing |
| Certifications And Compliance | cTUVus, FCC, CE, Energy Star, and RoHS2 certifications or compliance |
| Physical Specifications | 3.5 × 19 × 17 inches; 47.6 lb; black |
| Model Identifiers | Minuteman Endeavor series, model ED2000RTXL2UNC; 120V international version |
