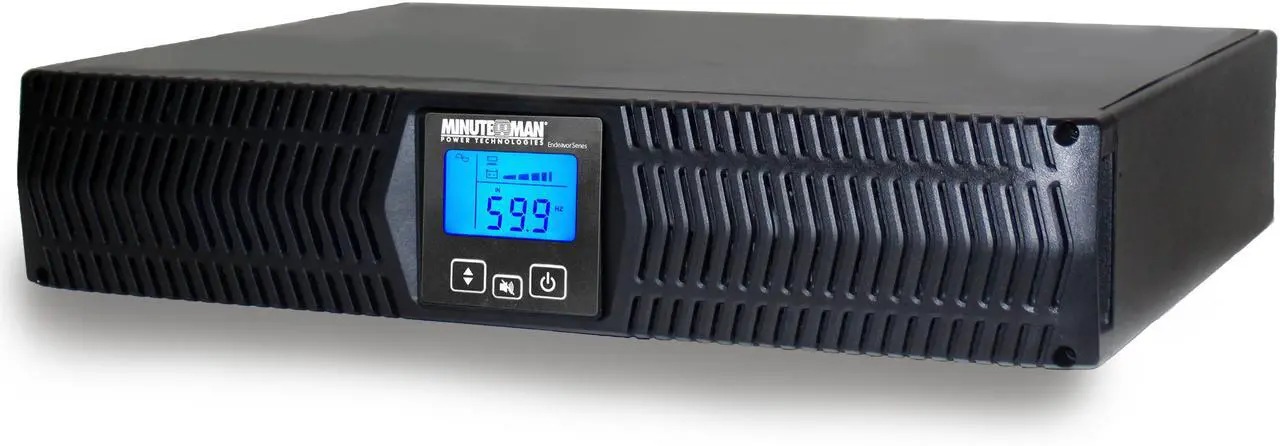

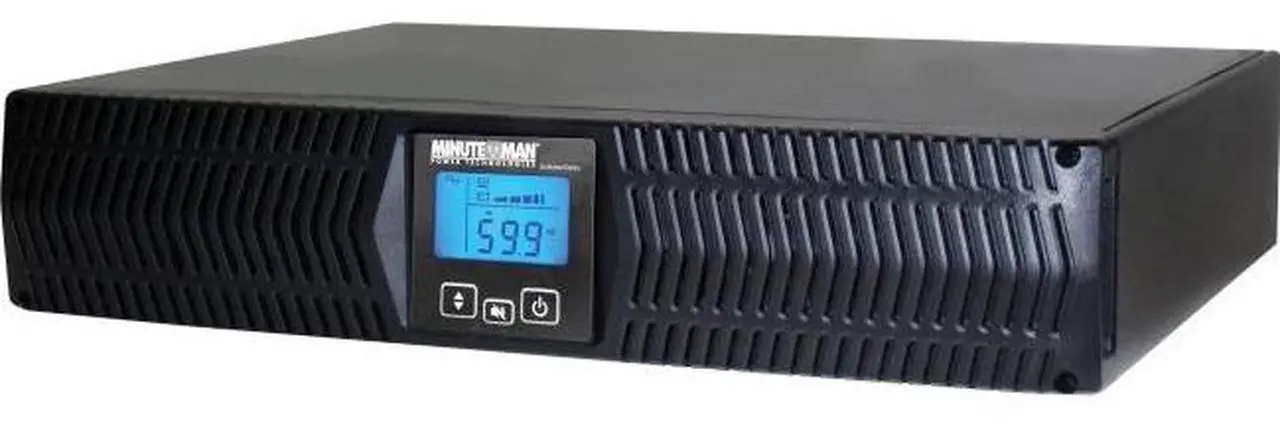

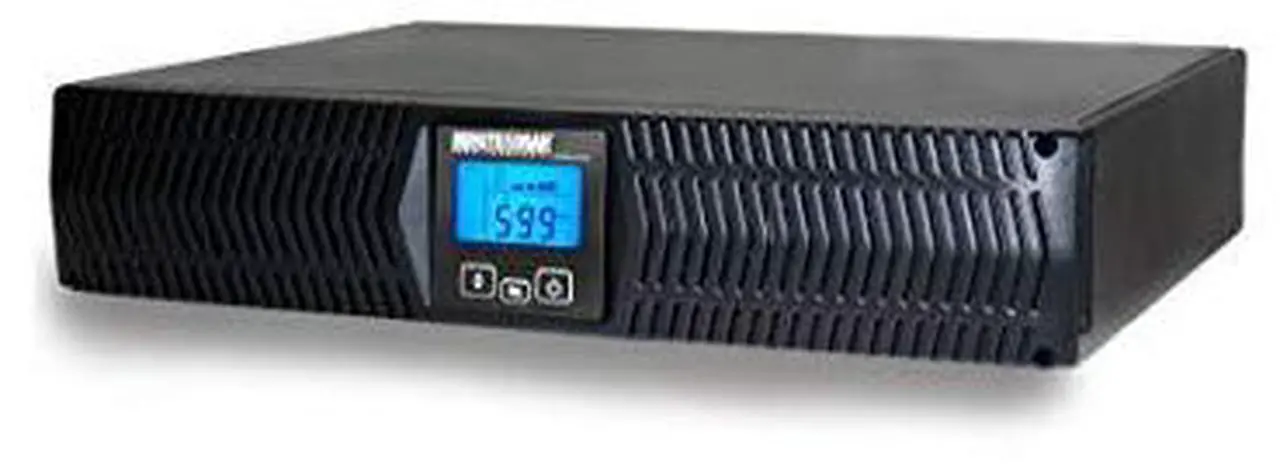

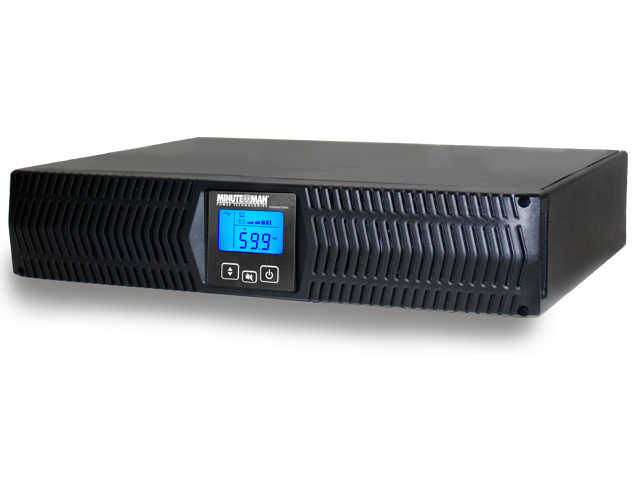

Minuteman Endeavor ED3000RTXL2U 3000VA Tower/Rack/Wall Mountable UPS - 2U Tower/Rack/Wall Mountable-3.50 Minute Stand-by - 20 V AC Input - 120 V AC Output - 1 x NEMA L5-30R, 7 x NEMA 5-15/20R Receptacle(s)
- True on-line, double-conversion technology
- Compact case design, (only 2U for all models), for high-density rack installations

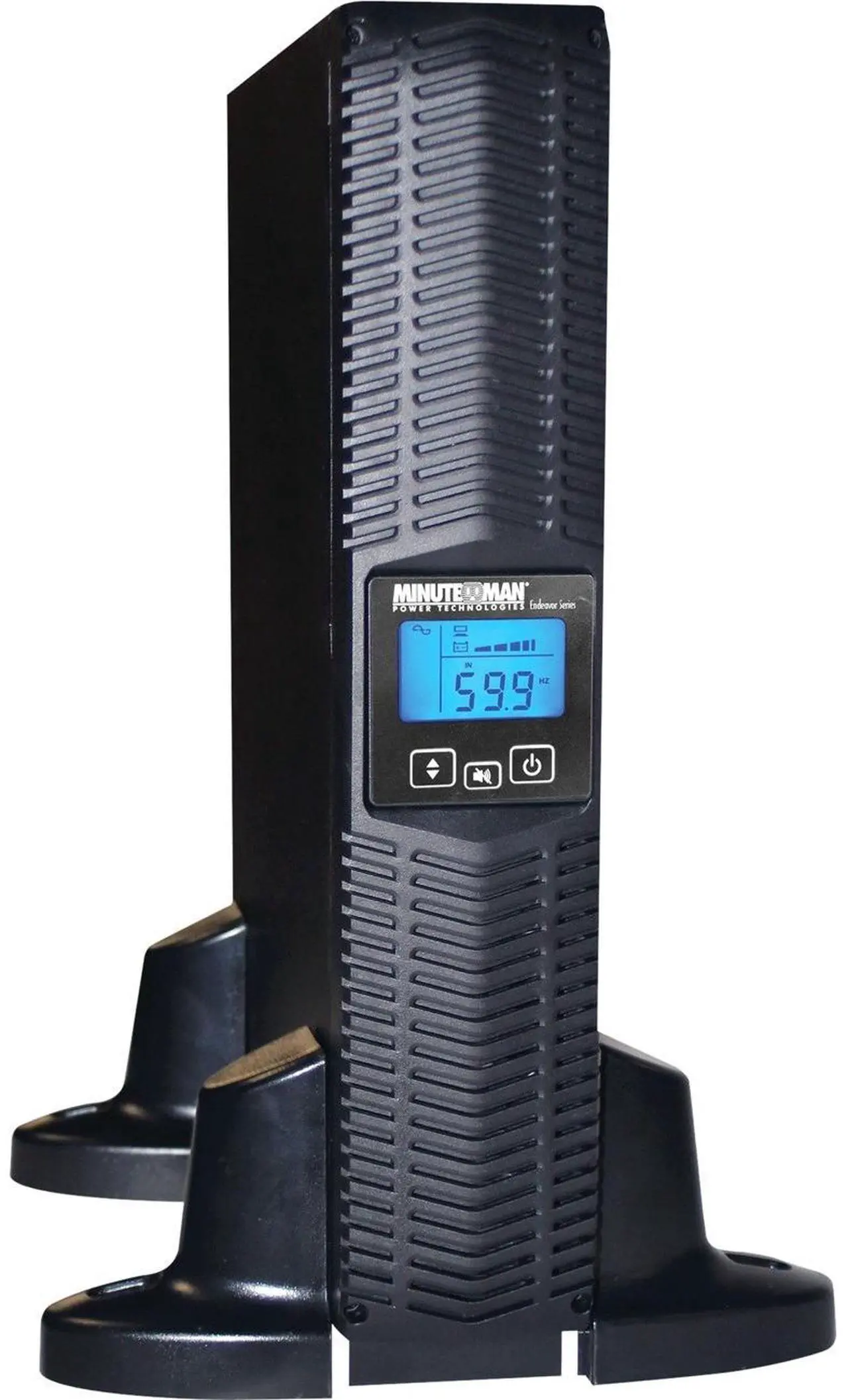

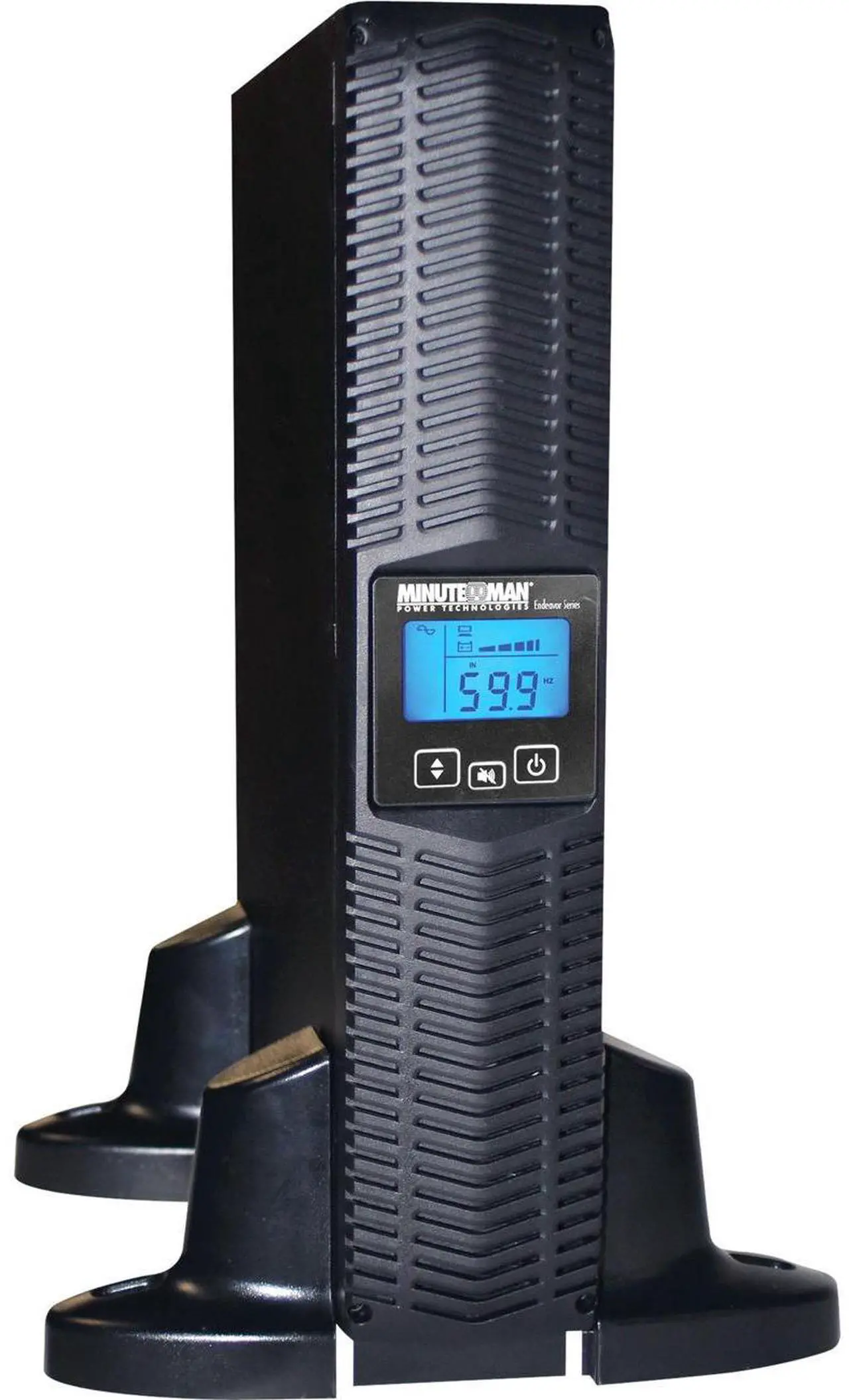

- Flexible installation format: Rack/Tower or Wall (with an optional install kit)
- Rackmount ears come attached to UPS
- Easy-to-read LCD display
- 0.9 output power factor
- Highly-efficient, Economy Mode option
- Output receptacle control with three load banks
- Independent Battery Bypass - allows the UPS to provide voltage regulation and spike/surge protection either with dead batteries or without batteries
- Hot-swappable battery replacement
+
+
Specs
Reviews
Any questions? Ask CelesteSM will help you find out quickly.
Try me now
Learn more about the MINUTEMAN ED3000RTXL2U
| Brand | MINUTEMAN |
|---|---|
| Series | ENDEAVOR |
| Model | ED3000RTXL2U |
| International Version | 120V |
|---|---|
| Input Voltage Range | 0-160VAC |
| Input Frequency | 50/60Hz +/- 6Hz Auto-sensing |
| Input Connection | NEMA L5-30P |
| VA Rating | 3000VA |
|---|---|
| Watts | 2700W |
| Output Voltage | 120VAC, User selectable: 110VAC |
| Output Frequency | 50/60Hz +/- 0.5Hz unless synchronized to line |
| Outlets | 8 |
| Outlet Type | [7] 5-15/20R & [1] L5-30R |
| Battery Type | Sealed Lead Acid |
|---|---|
| Battery Run Time | Half Load: 12 min Full Load: 3.5 min |
| Battery Recharge Time | 8 hours to 90% from total discharge |
| Battery Replaceable | BM0032 |
| Approvals | cTUVus (Conforms to UL1778 5th Edition & CSA 22.2 no. 107.3-14 / R: 2014), FCC Class B (1K & 1.5K), FCC Class A (2K & 3K), CE certified, Energy Star certified, RoHS2 (EU Directive 2011/65/EU) |
|---|
| Surge Energy Rating | 1000 Joules |
|---|
| Temperature | Operating Temperature: +32 to +104°F (0 to 40°C) Storage Temperature: +5 to +113°F (-15 to +45°C) |
|---|---|
| Humidity | 95% non-condensing |
| Dimensions | 3.5" x 19" x 24.5" |
|---|---|
| Weight | 70.5 lbs. |
| First Listed on Newegg | February 06, 2019 |
|---|
Warranty & Returns
Warranty, Returns, And Additional Information
Warranty
- Limited Warranty period (parts): 3 years
- Limited Warranty period (labor): 3 years
- Read full details
Return Policies
- Contact Manufacturer for Assistance
- This item is covered by Newegg.com's Manufacturer Warranty Only Return Policy.
- Read full return policy for details.
Manufacturer Contact Info
- Manufacturer Product Page
- Manufacturer Website
- Support Phone: 1-800-238-7272
- Support Email: mmsupport@minutemanups.com
- Support Website
- View other products from MINUTEMAN
LOADING...
The Minuteman Endeavor ED3000RTXL2U is a 3000VA/2700W online, double-conversion UPS for server racks and other critical equipment that need regulated 120V power. Its 2U rack/tower design, eight outlets, and 3.5-minute full-load battery runtime suit short outages and orderly shutdowns rather than extended backup.
Recommended For
- IT teams protecting rack-mounted servers or other sensitive equipment that need online, double-conversion power conditioning and no transfer delay during an outage.
- Administrators fitting a high-density server or network rack who need a 2U UPS with independently controlled outlet banks for shedding lower-priority loads.
- Small server-room or homelab operators who want a 120V, 3000VA/2700W online UPS and have a compatible L5-30P power connection; a homelab discussion shows the model being considered for that kind of setup.
- IT staff who need a UPS that can be installed as a rack or tower, with hot-swappable batteries and compatible external battery packs for longer runtime planning.
Spec Summary
| Attribute | Value |
|---|---|
| Best For | Power backup and voltage conditioning for equipment drawing up to 2700W, with 3000VA capacity and eight outlets |
| Power Capacity And Output | 3000VA / 2700W output; 120VAC, user-selectable to 110VAC |
| Input And Frequency | 0–160VAC input through a NEMA L5-30P connection; auto-sensing 50/60Hz input and 50/60Hz output with ±0.5Hz tolerance unless synchronized to line |
| Outlets And Surge Protection | Eight outlets: seven 5-15/20R and one L5-30R; 1000-joule surge energy rating |
| Battery Backup | Sealed lead-acid battery; 12 minutes at half load and 3.5 minutes at full load; recharges to 90% in 8 hours from total discharge; replaceable with BM0032 |
| Installation And Form Factor | Tower form factor |
| Dimensions And Weight | 3.5 × 19 × 24.5 inches; 70.5 lb |
| Operating Environment | Operating temperature: 32–104°F (0–40°C); storage temperature: 5–113°F (−15–45°C); humidity: 95% non-condensing |
| Certifications And Compliance | cTUVus, FCC Class A (2K & 3K), CE certified, Energy Star certified, and RoHS2 compliant |
| Model Identifiers | Minuteman Endeavor ED3000RTXL2U |
