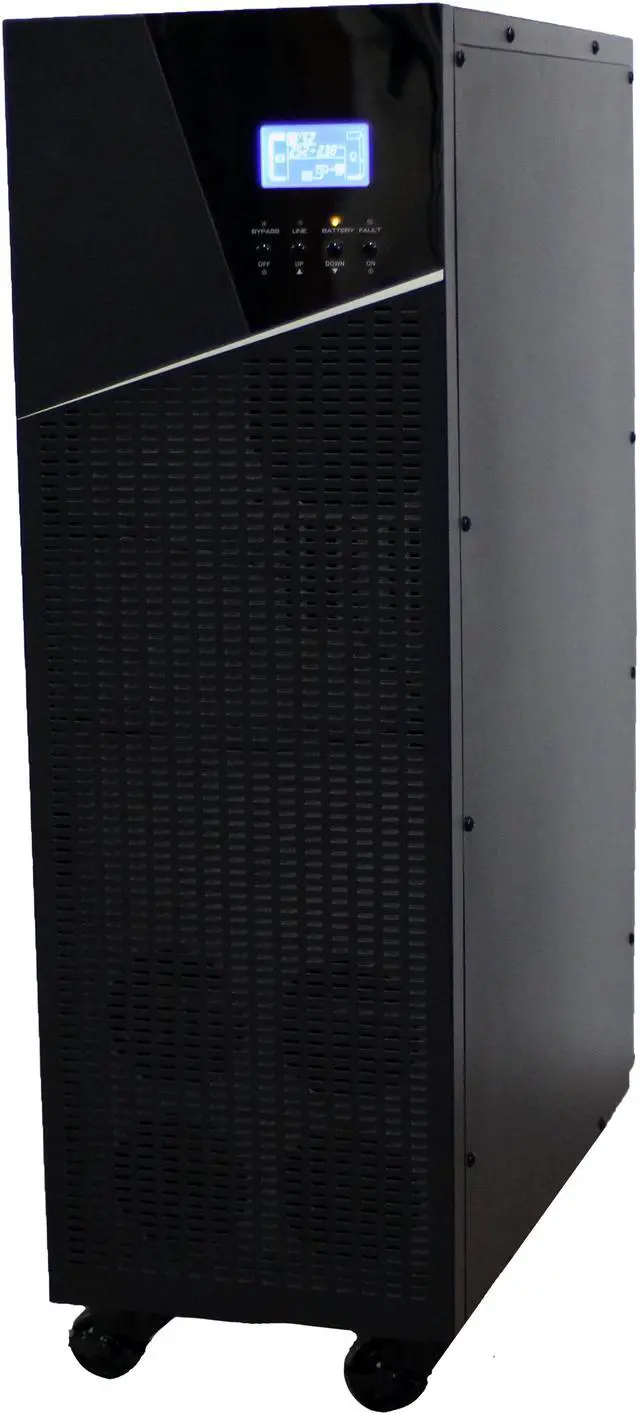

Minuteman ED6KTF 6000VA/6000W true on-line, double-conversion UPS system with standard hardwired input and output.

  • ED1000RTXL2U
  • ED1000RTXL2UNC
  • ED10KRT
  • ED10KRT-10KTF2
  • ED10KRT-3KTF
  • ED10KRT-5KTF
  • ED10KRT-6KTF2
  • ED10KRT-8KTF2
  • ED10KTF
  • ED2000RTXL2U
  • ED2000RTXL2UNC
  • ED3000RTXL2U
  • ED3000RTXL2UNC
  • ED-3KTF
  • ED5KRT
  • ED5KRT-3KTF
  • ED5KRT-5KTF
  • ED-5KTF
  • ED6KRT
  • ED6KRT-3KTF
  • ED6KRT-5KTF
  • ED6KRT-6KTF2
  • ED6KTF
  • ED8KRT
  • ED8KRT-3KTF
  • ED8KRT-5KTF
  • ED8KRT-6KTF2
  • ED8KRT-8KTF2
  • True on-line, double-conversion topology
  • 1.0pf output power factor*
  • Configurable output voltages: 208VAC/240VAC
  • Output Isolation transformer for full-load 120VAC support
  • Extended runtime via external battery packs
  • Real-time LCD display
  • Automatic Internal Bypass
  • Maintenance Bypass
  • Independent Battery Bypass
  • DC Start capability
  • USB Communication Port
  • Simultaneous USB/RS232 communications
  • SNMP option slot
  • EPO port standard
  • Smaller, compact case design
  • Increased efficiency
  • ECO Mode
  • Variable-speed fan control
  • Added Reliability
  • 3-year standard warranty
  • RoHS2 compliant
  • cTUVus certified
This item is covered under the Manufacturer Only Return Policy.
+
+
Specs
Reviews

Any questions? Ask CelesteSM will help you find out quickly.

Learn more about the MINUTEMAN ED6KTF

Model
Brand MINUTEMAN
Series ENDEAVOR
Model ED6KTF
Input
International Version 208V/240V
Output
VA Rating 6000VA
Output Voltage 120/208/220/230/240VAC
Battery
Battery Replaceable B00007
Surge Protection
Surge Energy Rating 972 Joules
Dimensions & Weight
Dimensions 32.54" x 9.8" x 22.1"
Weight 237 lbs.
Additional Information
First Listed on Newegg May 23, 2025

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

  • Limited Warranty period (parts): 3 years
  • Limited Warranty period (labor): 3 years
  • Read full details

Return Policies

LOADING...

The MINUTEMAN ED6KTF is a 6000VA/6000W true-online, double-conversion UPS for businesses and facilities that need high-capacity power protection for critical equipment. It supports configurable 208V/240V output, full-load 120V support through an isolation transformer, and extended runtime with external battery packs.

Recommended For

  • IT teams protecting critical servers and network equipment in a data center or server room that needs continuous, double-conversion power.
  • Organizations outfitting remote network closets, education networks, or telecom/VoIP systems that need a high-capacity UPS and configurable 120V or 208–240V output.
  • Facilities teams supporting sensitive equipment or security systems that benefit from online double-conversion power and need to monitor UPS status through USB/RS-232 or optional SNMP.
  • Server-room operators who need a short battery bridge for orderly shutdown or generator startup and can add external battery packs when more runtime is required.

Spec Summary

AttributeValue
Best ForBackup power for equipment requiring a 6000VA UPS and one of the listed 120, 208, 220, 230, or 240VAC output options
Power Capacity And Output6000VA capacity with 120, 208, 220, 230, or 240VAC output
Battery And Surge ProtectionBattery Replaceable value B00007; 972-joule surge energy rating
Dimensions And Weight32.54 × 9.8 × 22.1 inches; 237 lb
Model IdentifiersMinuteman Endeavor series, model ED6KTF; international version 208V/240V
