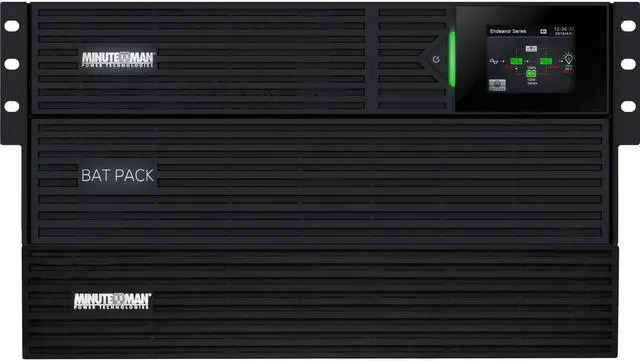

Minuteman ED8KRT-3KTF Endeavor 5-10kVA Series: High-end, True Sine Wave, Online UPS, Rack/Tower, 8000VA/7065W, 208-240VAC Input/Output, Power Factor 0.9, (3) Controllable NEMA L6-30R and(2)NEMA L6-20R

Be the first to review this product...
  • ED1000RTXL2U
  • ED1000RTXL2UNC
  • ED10KRT
  • ED10KRT-10KTF2
  • ED10KRT-3KTF
  • ED10KRT-5KTF
  • ED10KRT-6KTF2
  • ED10KRT-8KTF2
  • ED10KTF
  • ED2000RTXL2U
  • ED2000RTXL2UNC
  • ED3000RTXL2U
  • ED3000RTXL2UNC
  • ED-3KTF
  • ED5KRT
  • ED5KRT-3KTF
  • ED5KRT-5KTF
  • ED-5KTF
  • ED6KRT
  • ED6KRT-3KTF
  • ED6KRT-5KTF
  • ED6KRT-6KTF2
  • ED6KTF
  • ED8KRT
  • ED8KRT-3KTF
  • ED8KRT-5KTF
  • ED8KRT-6KTF2
  • ED8KRT-8KTF2
  • Power / Device Type: UPS
  • Power Device / Form Factor: Rack/Tower
  • Power / Voltage Required: 208-240VAC
  • Features: 7065W
  • Power Provided (VA): 8000 VA
  • Interfaces & Connections: (3) Controllable NEMA L6-30R and (2) NEMA L6-20R Receptacles,(8) NEMA 5-15/20R Receptacles
This item is covered under the Manufacturer Only Return Policy.
+
+
Specs
Reviews
avatar

Any questions? Our AI beta will help you find out quickly.

Try me now

Learn more about the MINUTEMAN ED8KRT-3KTF

Model
Brand MINUTEMAN
Series ENDEAVOR
Model ED8KRT-3KTF
Input
International Version 208 (Default), 220, 230, 240VAC
Input Voltage Range 180-280VAC
Input Frequency 40 to 70Hz at Full Load
Input Connection Hardwire only
Output
VA Rating 8,000VA
Watts 7065W
Output Voltage 208 (Default), 220, 230, 240VAC
Output Frequency 50/60Hz, +/-0.1Hz
Outlets 5
Outlet Type (3) L6-30R / (2) L6-20R / (1) 3-wire Terminal Block (208-240VAC)
(8) 5-15/20R (120VAC)
Battery
Battery Run Time Half Load: 11 min
Full Load: 3 min
Battery Replaceable BM0098
Details
Interface Port DB-9
Approvals cUL, CE, UL1778, FCC Class B, Energy Star 2.0, RoHS2
Surge Protection
Surge Energy Rating 3140 Joules
Environmental
Temperature Operating Temperature: +32° to +104°F (0° to +40°C)
Storage Temperature: +5° to +131°F (-15° to +55°C)
Humidity 0 to 95%, non-condensing
Dimensions & Weight
Dimensions 11.95" x 17.24" x 28.74"
Weight 258.97 lbs.
Additional Information
First Listed on Newegg June 09, 2025

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

  • Limited Warranty period (parts): 3 years
  • Limited Warranty period (labor): 3 years
